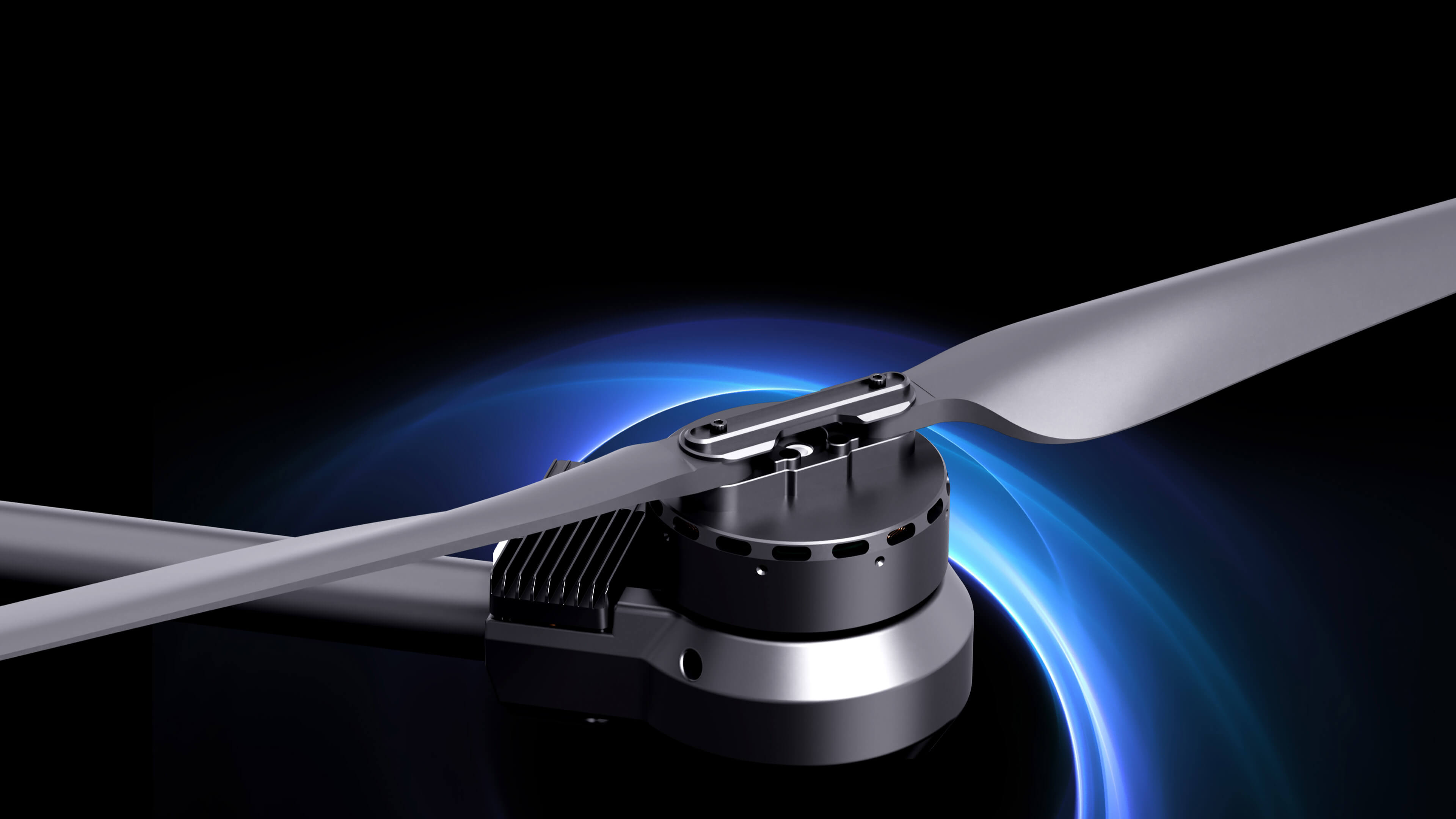

F13 Propulsion System

Unmatched Power. Unshakable Stability.

F13 Propulsion System

Adhering to the tenet of "providing customers with safer power systems", Feiyu has created a professional power and high-performance motor F13 power package for the field of agricultural plant protection and transportation. After our multi-faceted testing, it is not only reliable and long-lasting, but also can overcome the harsh use environment, provide surging power for UAV heavy-duty scenarios, safe flight, and efficient operation.

High-performance power solutions

It has large thrust, high efficiency, fast response and no overflow.

Electric

IPX6 Rated

Dustproof, Waterproof, Corrosion-Resistant

Waterproof

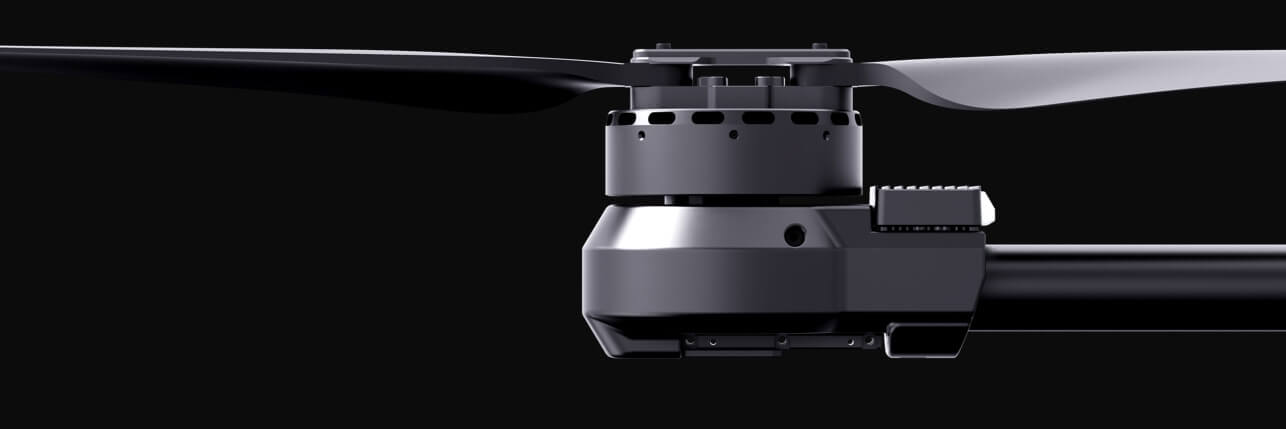

-20℃~50℃

Wide temge, good stability

Temperature

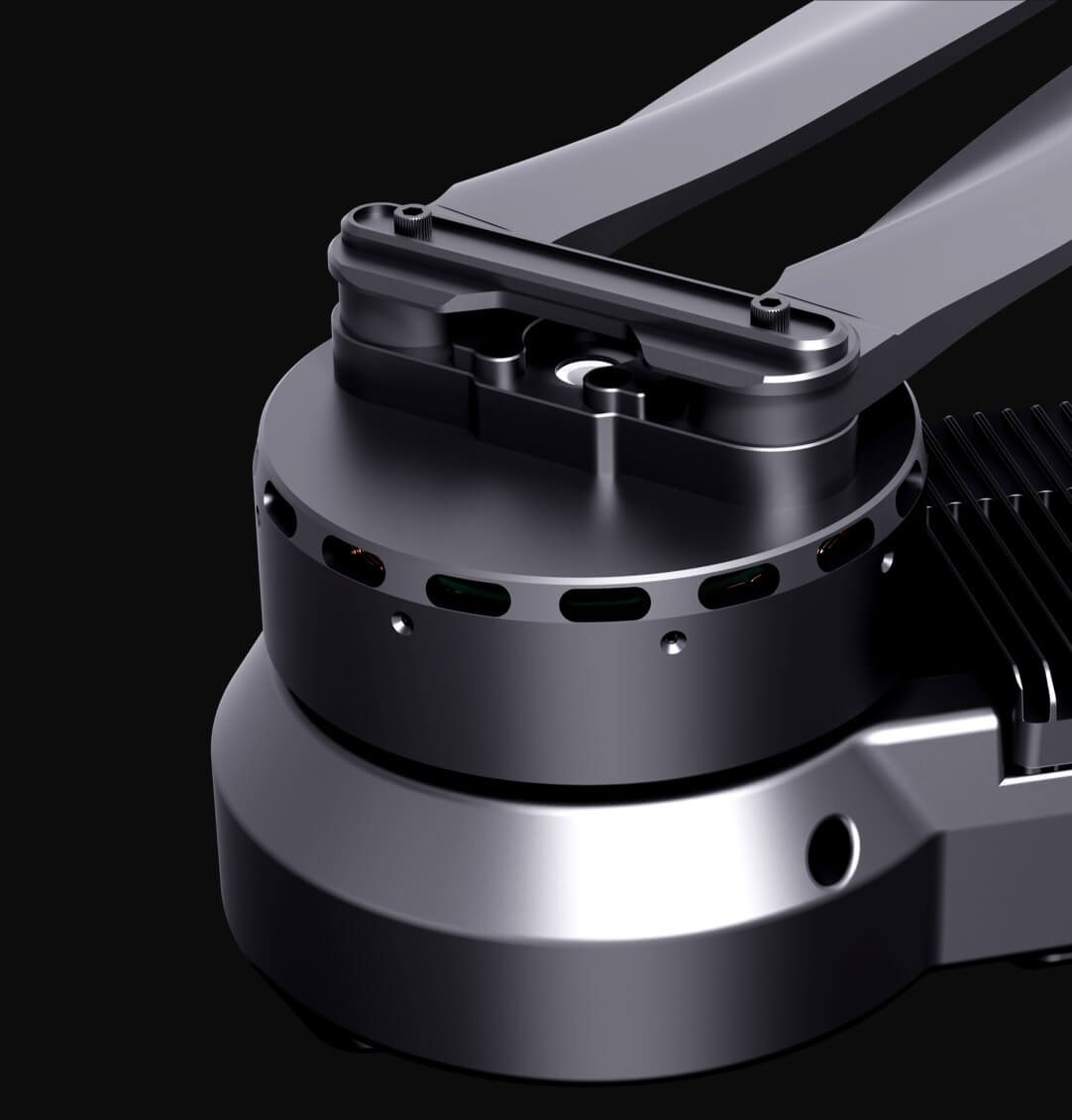

Made of aviation-grade aluminum alloy

Drop resistant and durable

Aluminum alloy

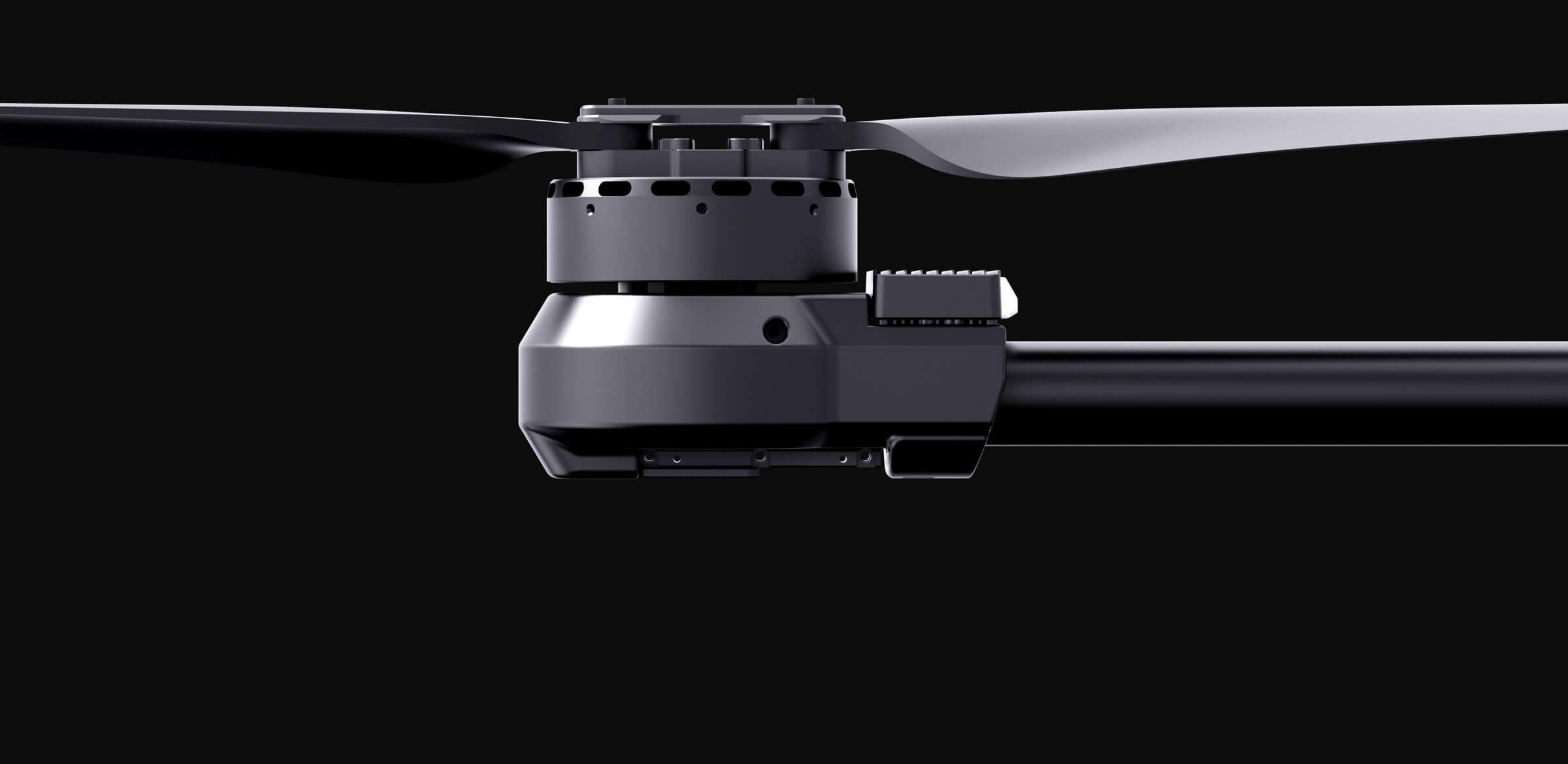

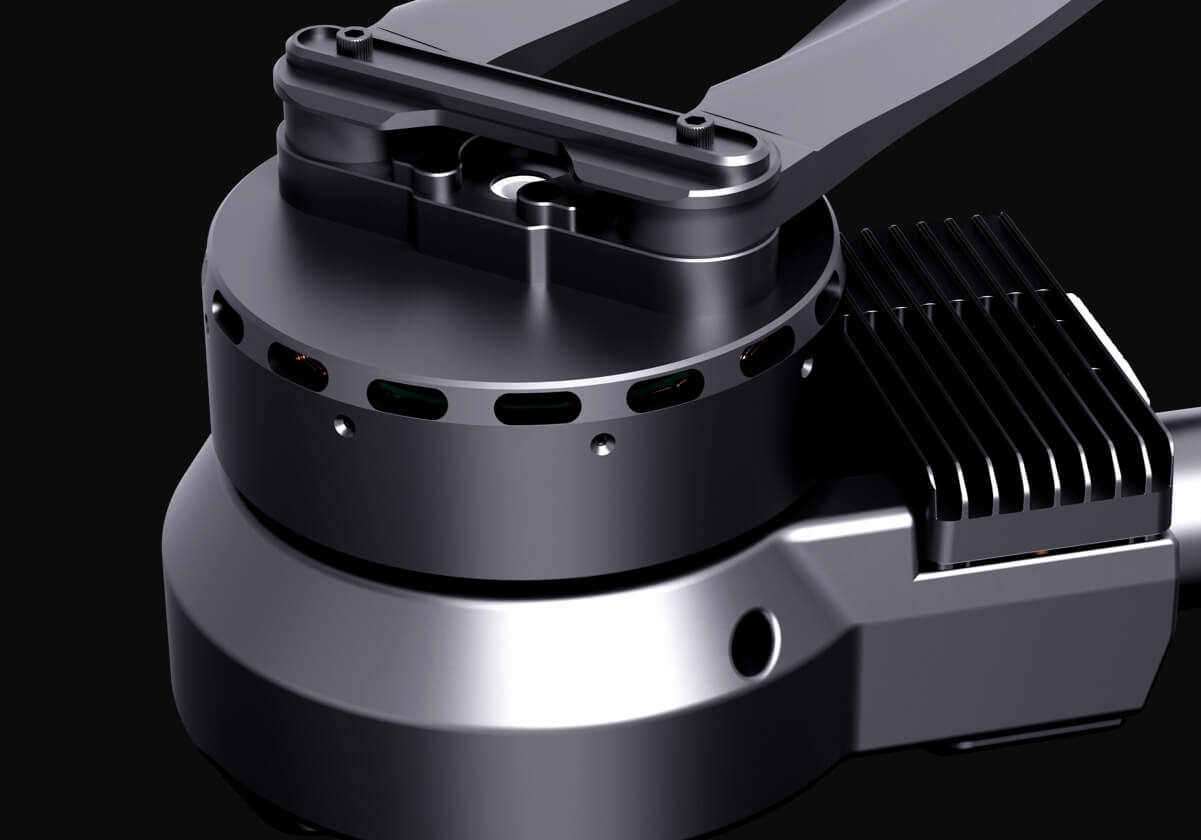

Integrated Power System –High Efficiency.

All-In-One, Ready-to-Use

Integrated design of motor, ESC, propeller, and motor mount, eliminating redundant assembly steps, balancing overall performance and convenience.

All-In-One, Ready-to-Use
Integrated design of motor

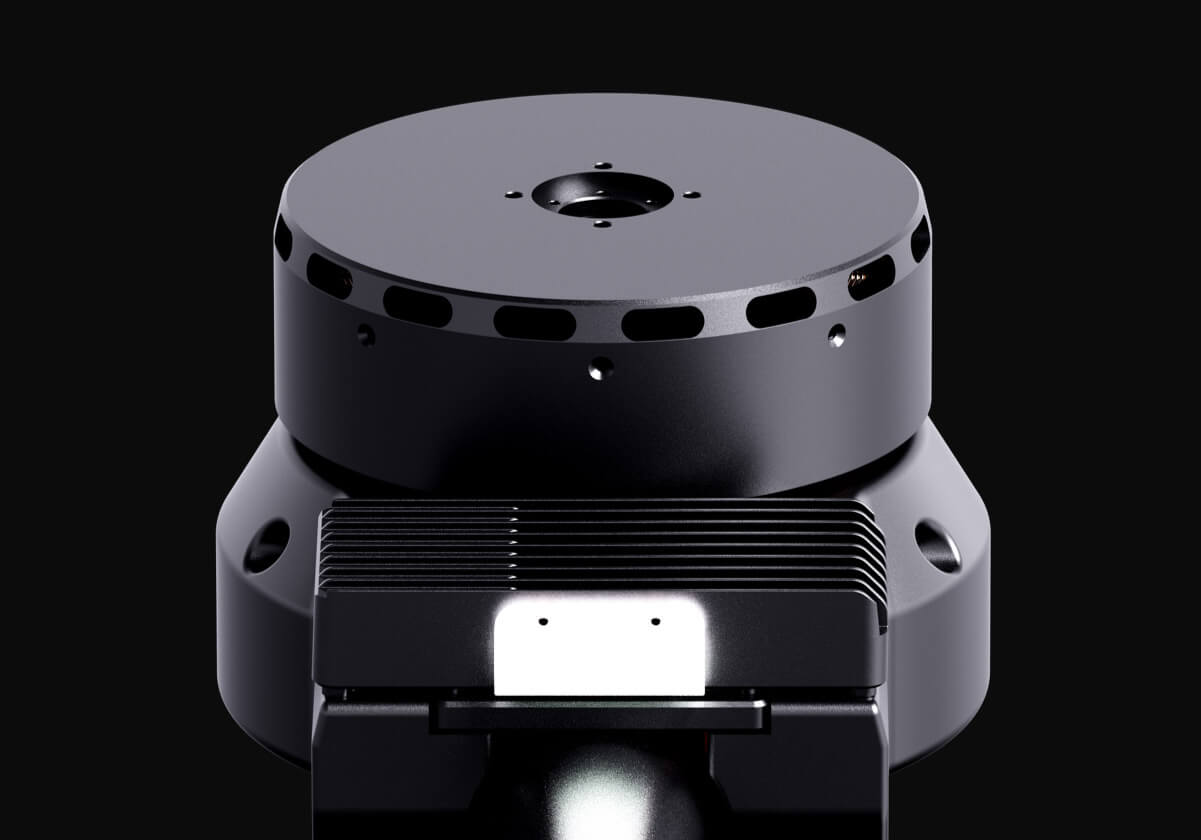

Modular Quick-Release Design

Quick-Detach Independent Motor/ESC Modules: Designed for easy installation, maintenance, and diagnostics, delivering consumer-grade ease of Use for professional equipment.

Four Breakthrough Performance Features – Redefining Industry Standards

Strong Thrust • Lightning Fast • Superior Capability

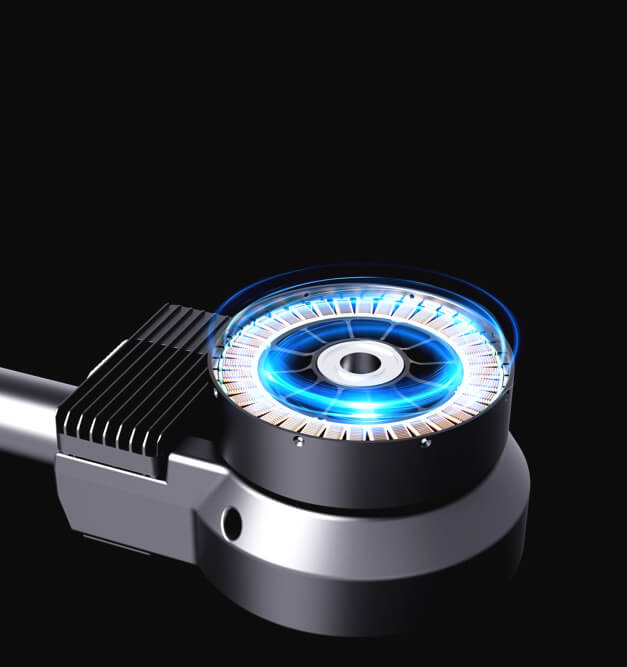

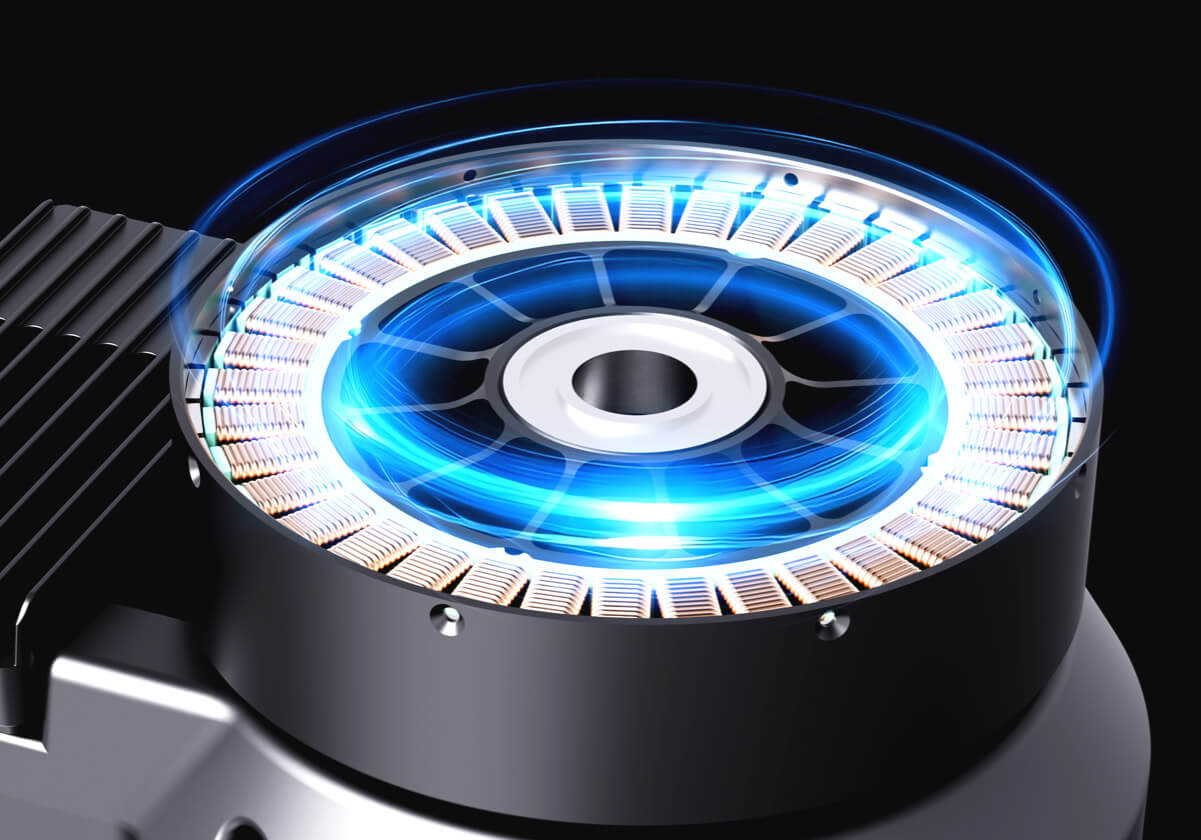

Using the FOC (Field-Oriented Control) algorithm, the motor achieves fast response, prevents overcurrent under high load, ensures efficient and stable power output, enhances operational efficiency, and effortlessly handles heavy-duty tasks.

Four Breakthrough Performance Features – Redefining Industry Standards
  • 220A ESC

    Redundant Power

  • 56 inch Propeller

    Efficient Performance

  • 57kg

    Max Thrust

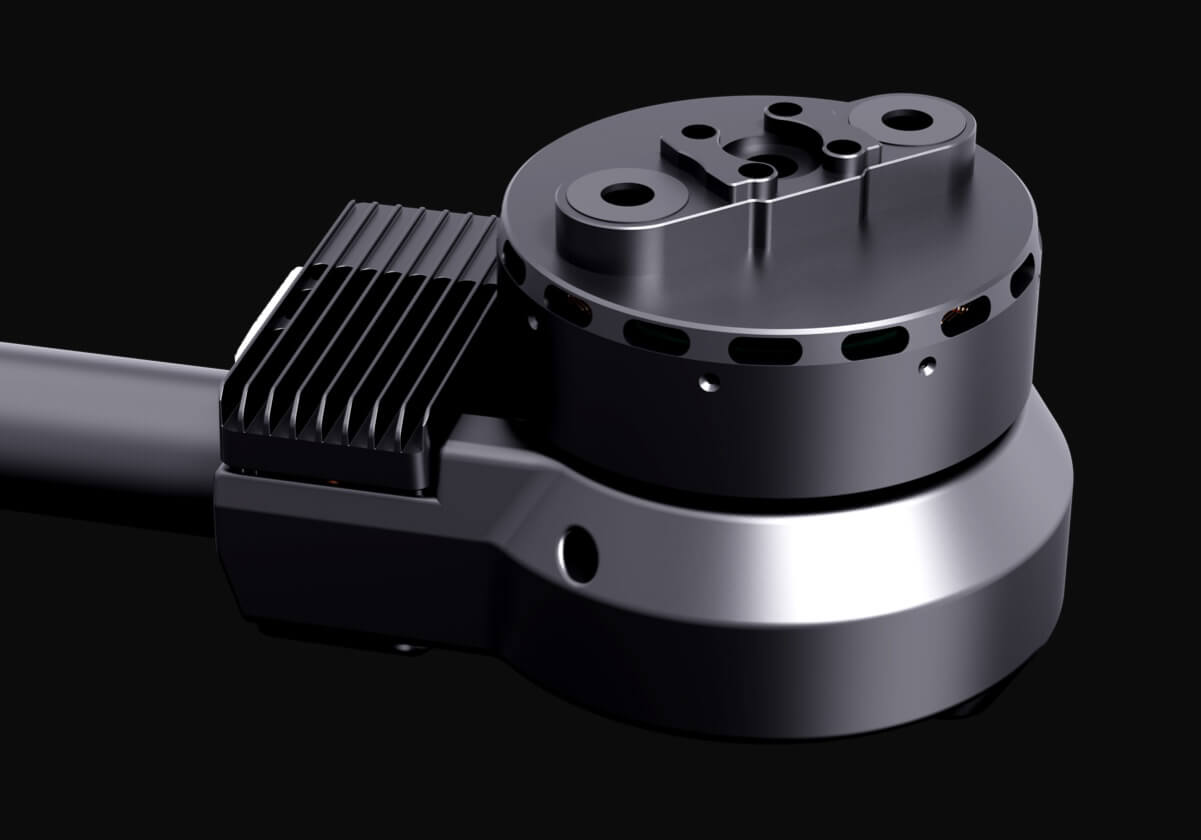

Stable and Reliable, Impact-resistant and Durable

Fully metal-reinforced body and carbon fiber propellers enhance structural strength, with impact resistance fully considered. This ensures equipment safety in complex operating environments and extends the overall lifespan.

Stable and Reliable, Impact-resistant and Durable

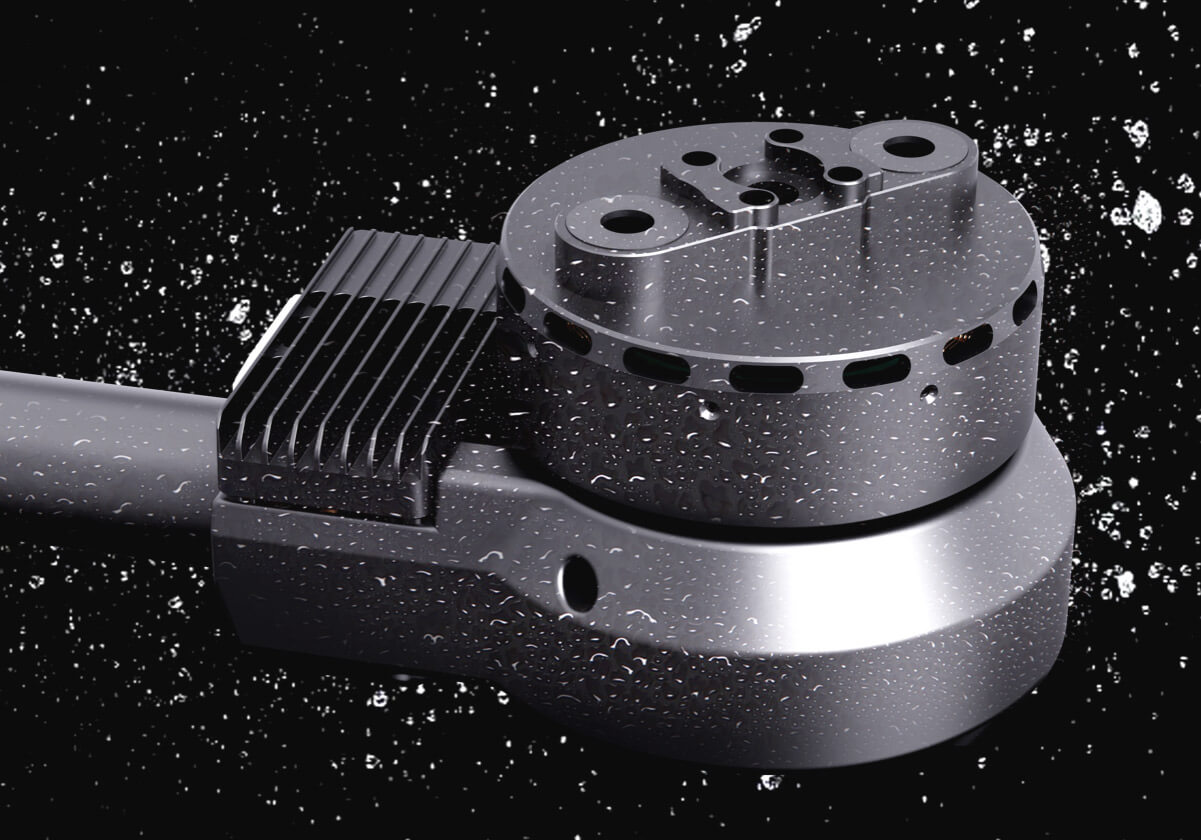

Multi-Dimensional Protection – Conquers Harsh Environments with Ease

Multi-Dimensional Protection – Conquers Harsh Environments with Ease

Equipped with IPX6 protection rating, effectively resistant to dust, water, and corrosion. With a wide operating temperature range of -20°C to 50°C, it withstands extreme heat and cold, meeting operational requirements across different regions and seasons.

Smart Compatibility – Hassle-Free Operation

Supports 50-500Hz PWM signal input, compatible with mainstream flight control systems. Plug-and-play operation without complex calibration required.

Smart Compatibility – Hassle-Free Operation
Dynamic Power Allocation

Dynamic Power Allocation

KV 46 rpm/V, compatible with 18S battery packs, meeting diverse load and endurance requirements.

Technical Parameters

  • F13-18S
  • Recommend Battery
    18S(LiPo)
  • Recommend Thrust
    24-28kg/Rotor
  • Max Thrust
    57kg
  • Weight
    4065g(propellers included)
  • Protection level
    IPX6
  • KV Value
    46rpm/v
  • Stator Size
    138mm*25mm
  • Applicable Carbon Tube
    50mm
  • PWM Input Signal Level
    3V-5V
  • Signal Frequency
    50-500Hz
  • Working Pulse Duration
    1050-1950us
  • Max Voltage
    75V
  • Max Instant Current (10S)
    141A
  • BEC
    Null
  • Throttle Travel
    Not Calibrating
  • Propeller
    56*20
  • Ambient Temperature
    -20℃~50℃
