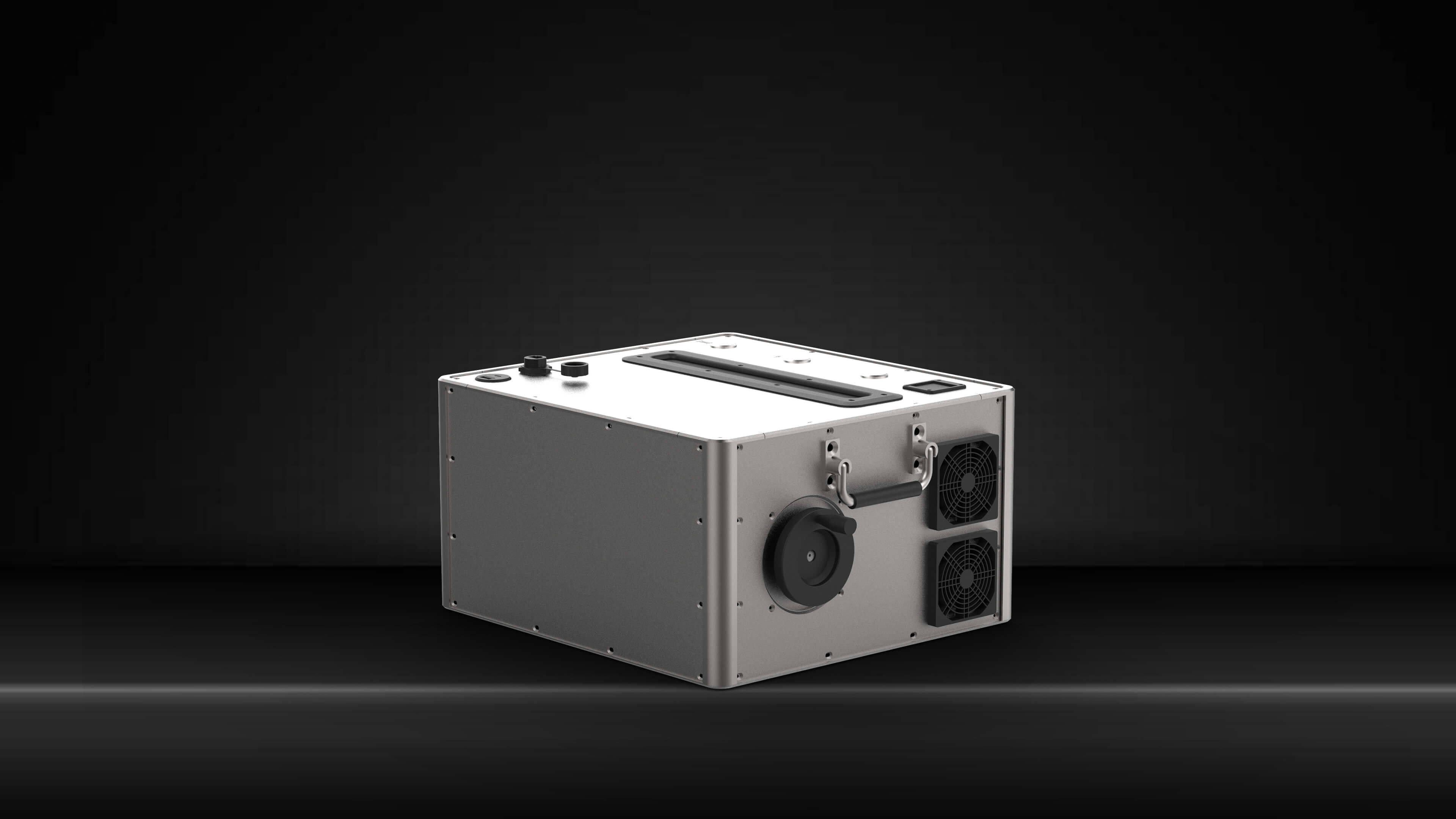

FYXL-XP01系留系统

FYXL-XP01
Light-Weight Tethered Power System

The FYXL-XP01 consists of an airborne module and a ground-tethered power supply box, supporting UAVs with a power output of up to 2500W that require 6S or 12S power supply. It continuously powers the UAV via high-performance alloy cables, enabling ultra-long-endurance operation while ensuring safety. It can also be expanded to include functions such as nighttime lighting and communication relay, providing efficient and stable operational solutions for security, emergency response, and industrial inspection.

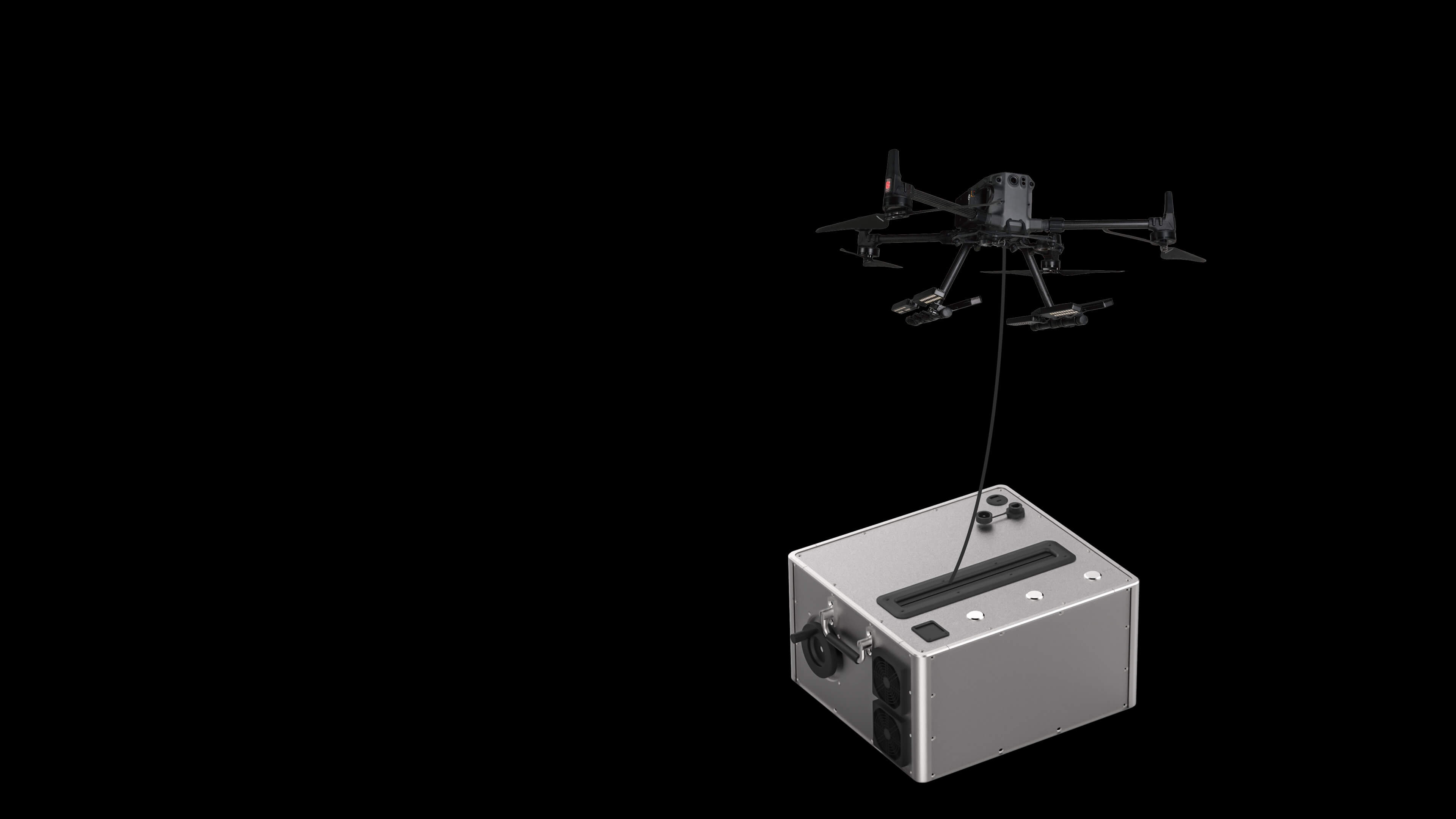

solves the three limitations of drones

Solves the three limitations of drones

  • Flight Time

    After being connected to the tethered platform, the multi-rotor drone can complete fixed-point high-altitude hovering missions that require long-term continuous operations in specific scenarios without being limited by battery capacity.

  • Safety

    In special areas such as no-fly zones, crowds, flammable and explosive areas, tethered drones can maximize the performance of tasks while minimizing the danger.

  • Ease of use

    Only need to master simple flying skills to easily operate the tethered drone.

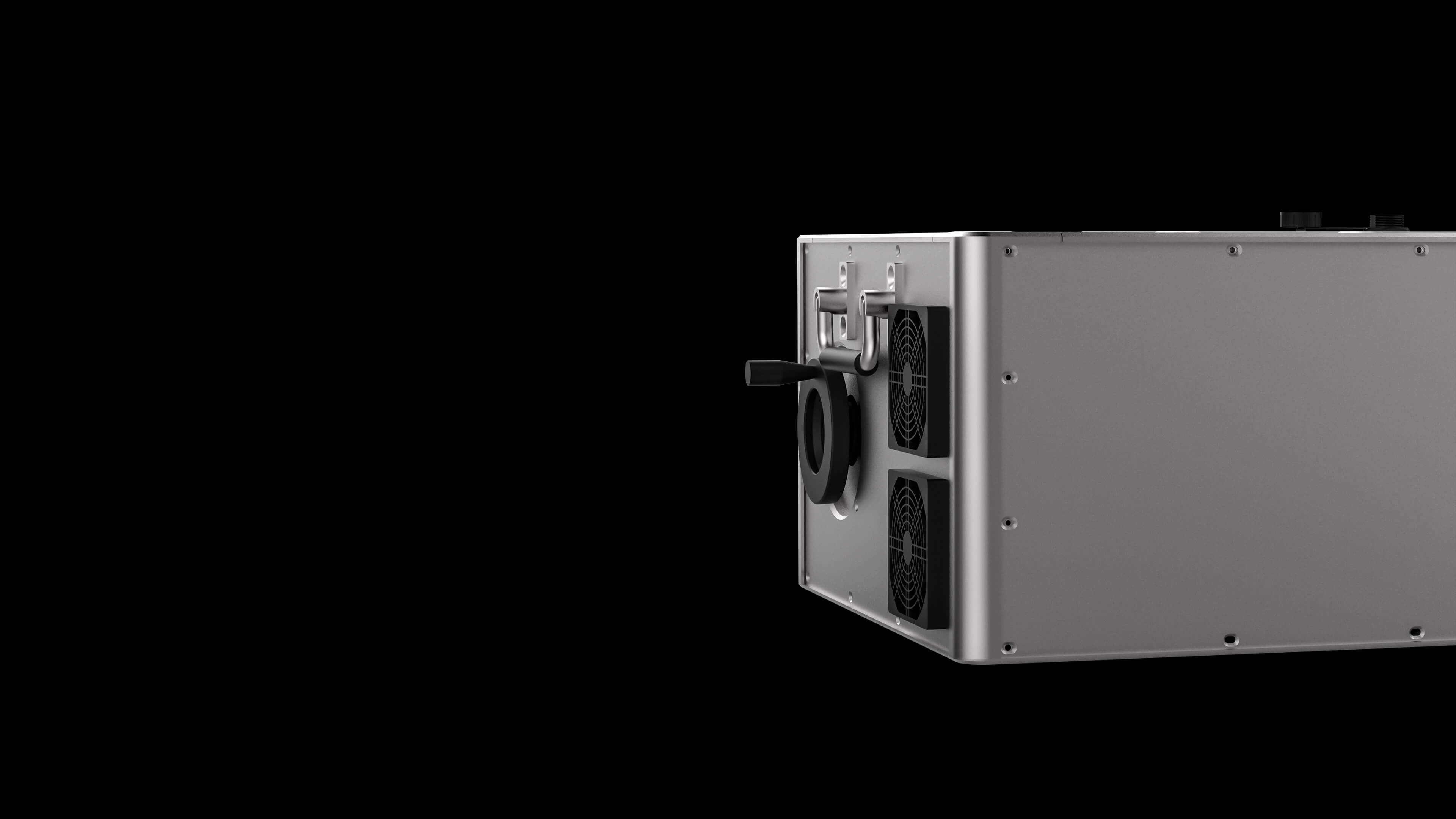

Tethered Power Station for Multi-Rotors Drone

Tethered Power Station for Multi-Rotors Drone

Compact Industrial Ground Station
Rapid Deployment, Stable and Reliable

Crafted from aluminum alloy, it combines lightweight design, durability, and stability.

Compact and portable, it is easy to operate and can quickly respond and deploy in various operational environments.

  • 13.4kg lightweight frame
  • 3000W high power output
  • 100m max flight altitude
  • 8h long endurance

Interchangeable airborne module with multi-drone platform compatibility

The FYXL-XP01 system is compatible with multiple drone platforms, including DJI M200/M210, Inspire 2, and M300/M350 drones, as well as drones with power supply support for 6S or 12S configurations and power output within 2500W. By simply replacing the airborne module‌ tailored for different drones, seamless adaptation across platforms is achieved.

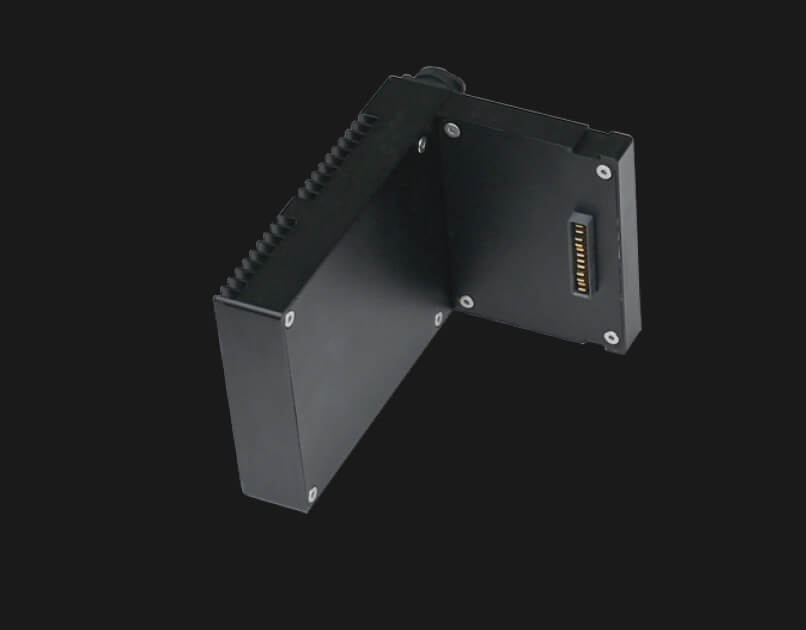

  • M350/M300 airborne module

    M350/M300 airborne module

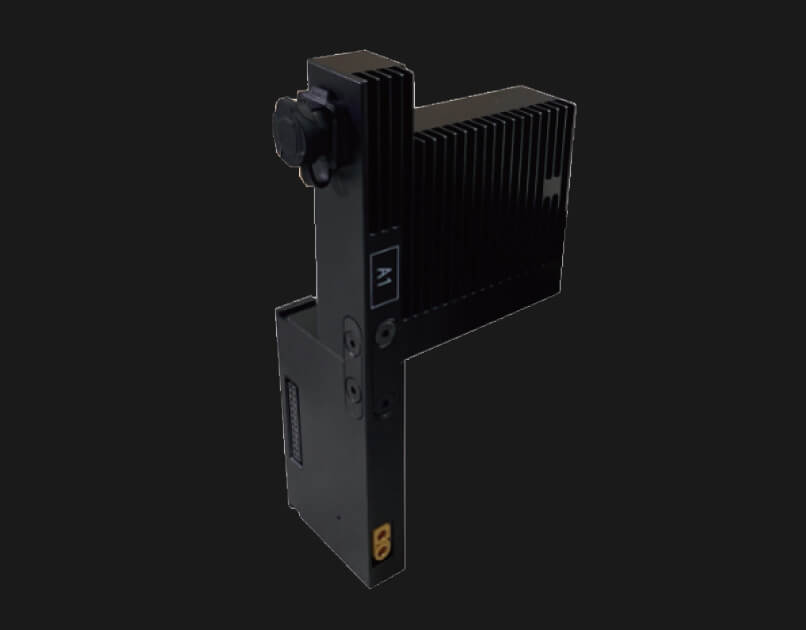

  • M210/Inspire 2 airborne module

    M210/Inspire 2 airborne module

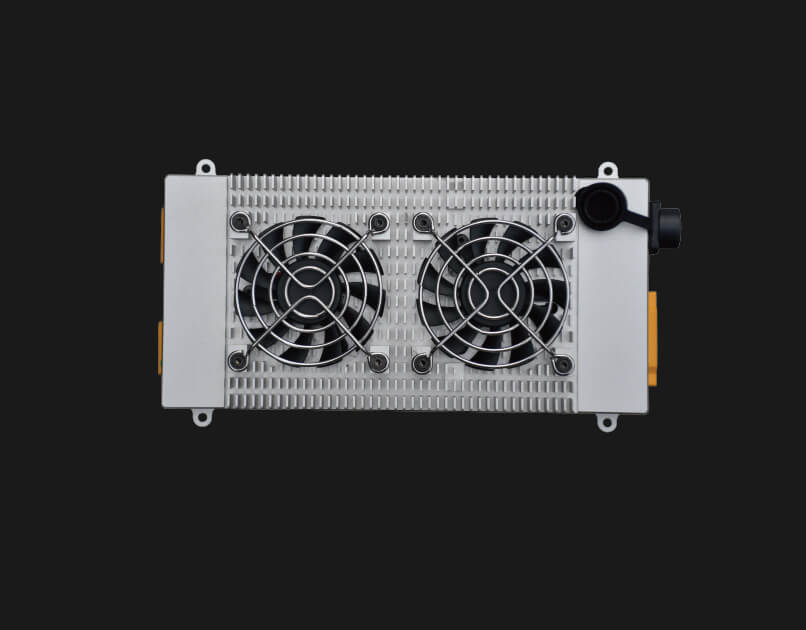

  • 6S/12S airborne module

    6S/12S airborne module

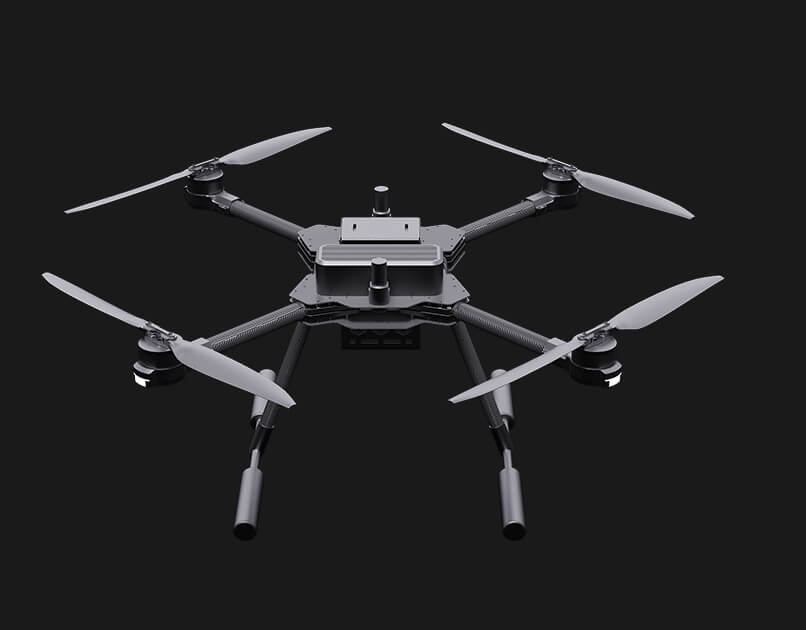

  • TS8 Quad-copter

    TS8 Quad-copter

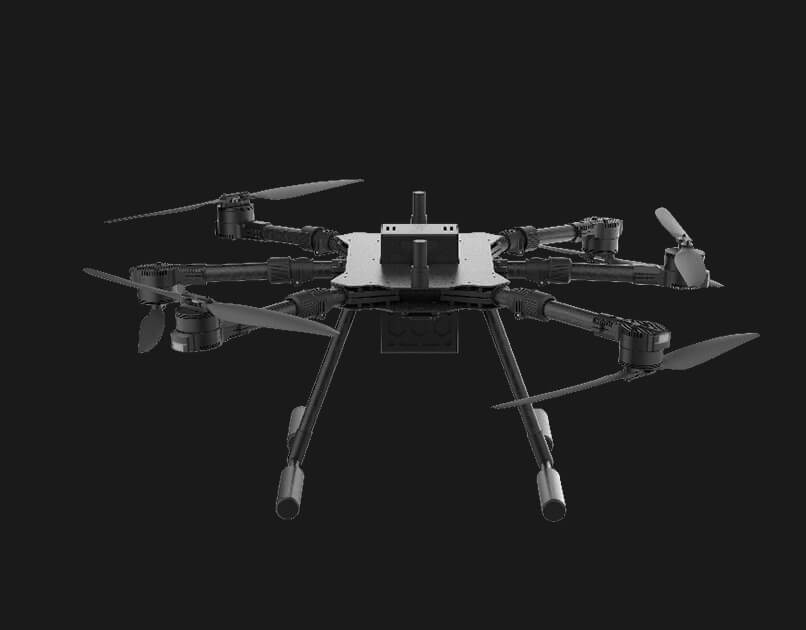

  • TS15 Hex-Rotor Cargo UAV

    TS15 Hex-Rotor Cargo UAV

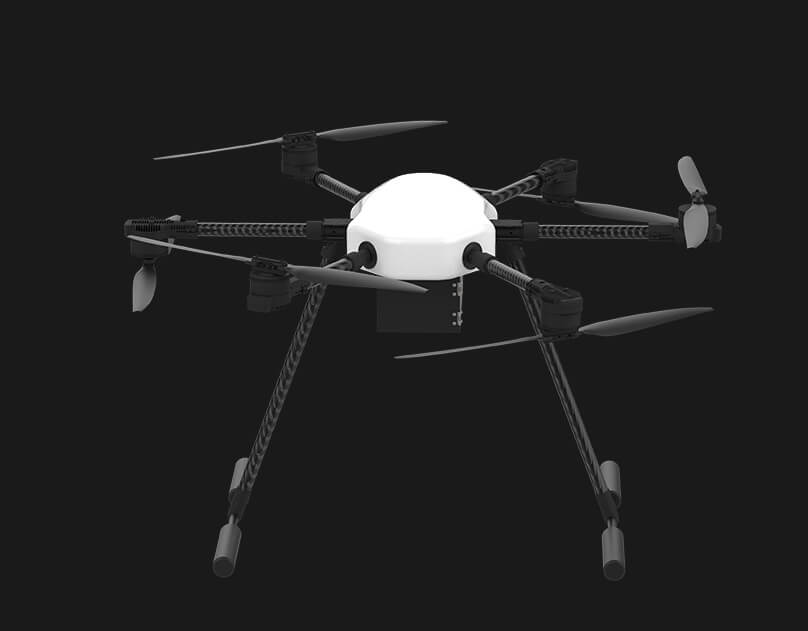

  • X1000 Pro Hex-Rotor UAV

    X1000 Pro Hex-Rotor UAV

High-performance alloy cable with plug-and-play functionality and automatic retraction system

Integrate efficient cable deployment and retrieval functions, support quick deployment and recovery, operate conveniently, and reduce the risk of cable damage.

Manual Emergency Reeling

Manual cable recovery is still possible after power outage.

Manual Emergency Reeling

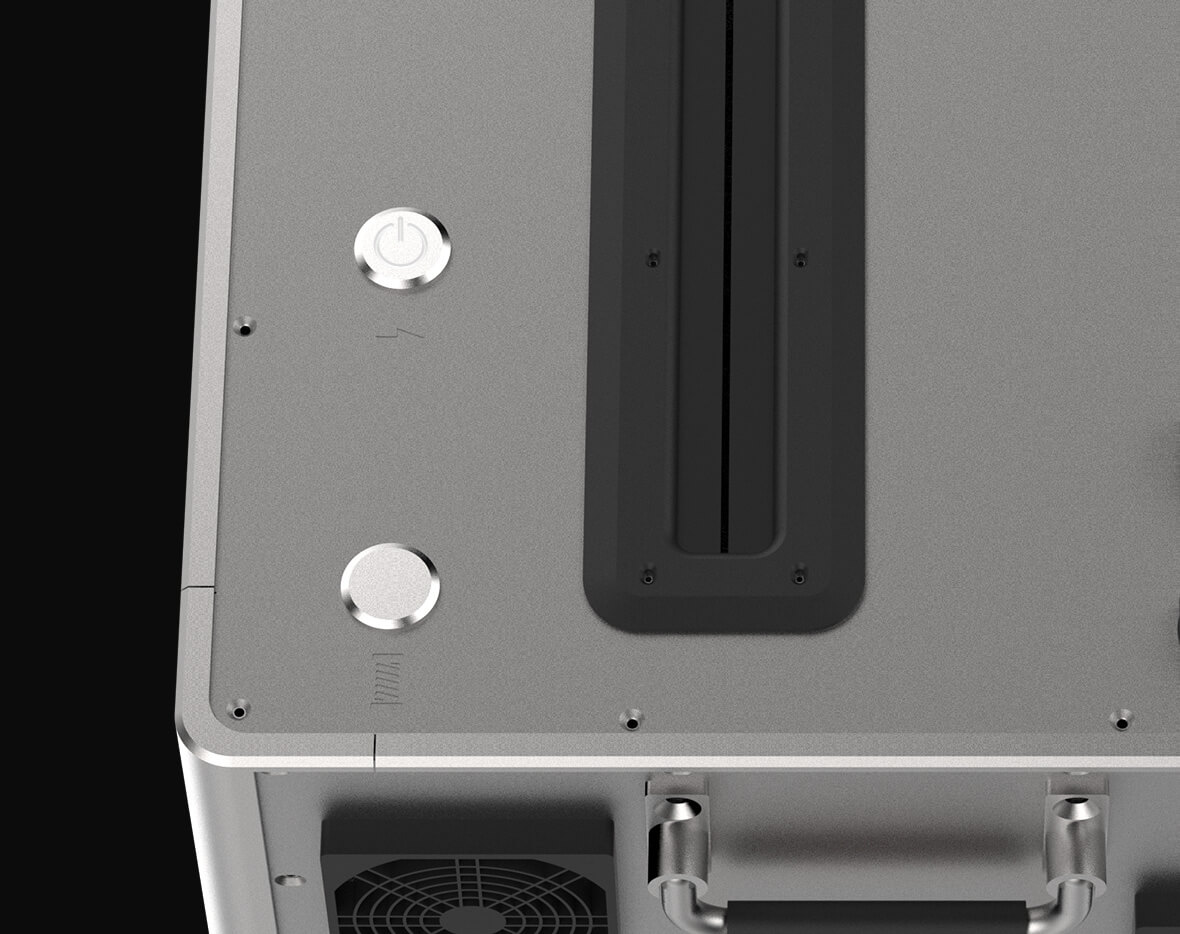

One Button Auto Winch

Built-in motor drive, fast response, prevents cable tangling.

One Button Auto Winch

Supports diverse mounting options

The airborne module provides 48V/24V power interfaces (automatically switching between battery and power supply), which can be used by other airborne pods, such as mounting lighting for emergency night illumination, mounting communication relay modules to restore communication or extend communication range, and mounting camera pods for long-term monitoring.

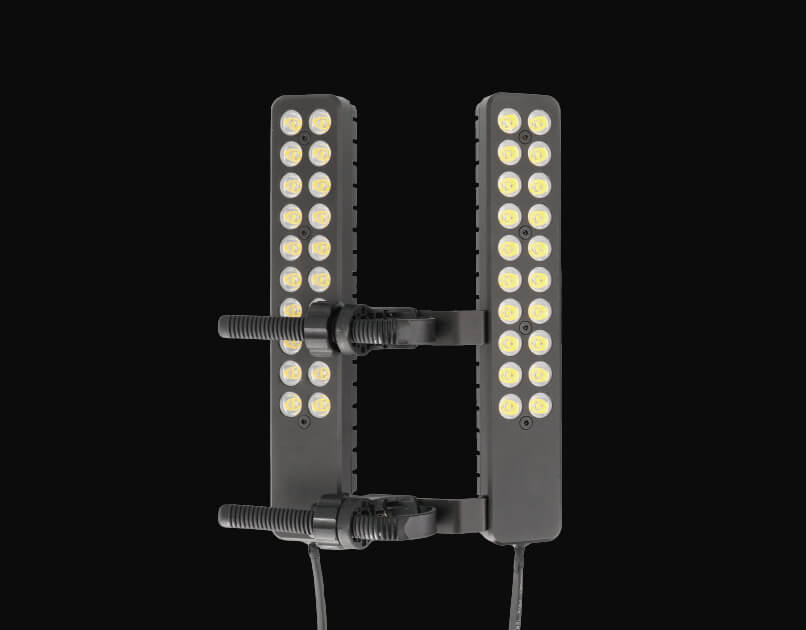

  • Range Lights

    Range Lights

  • Gimbal Camera

    Gimbal Camera

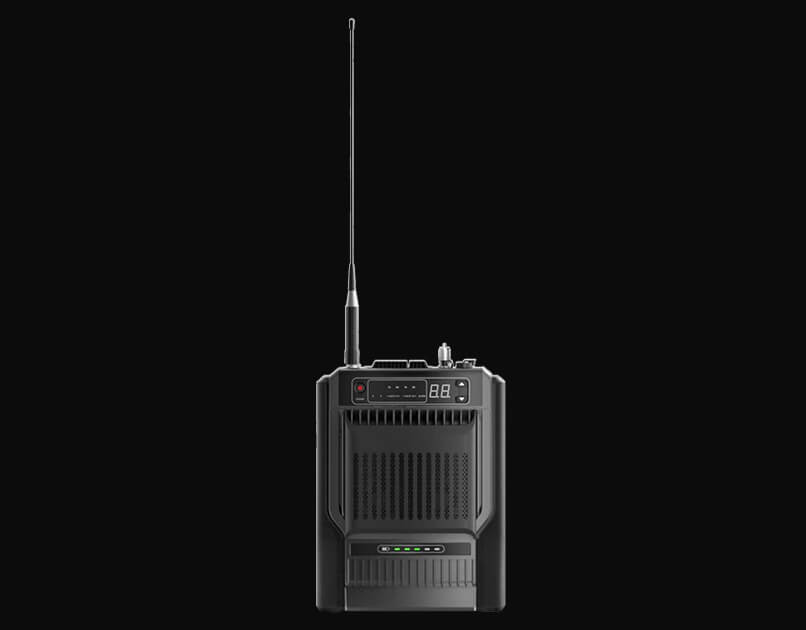

  • Communication Relay Modules

    Communication Relay Modules

Application Field

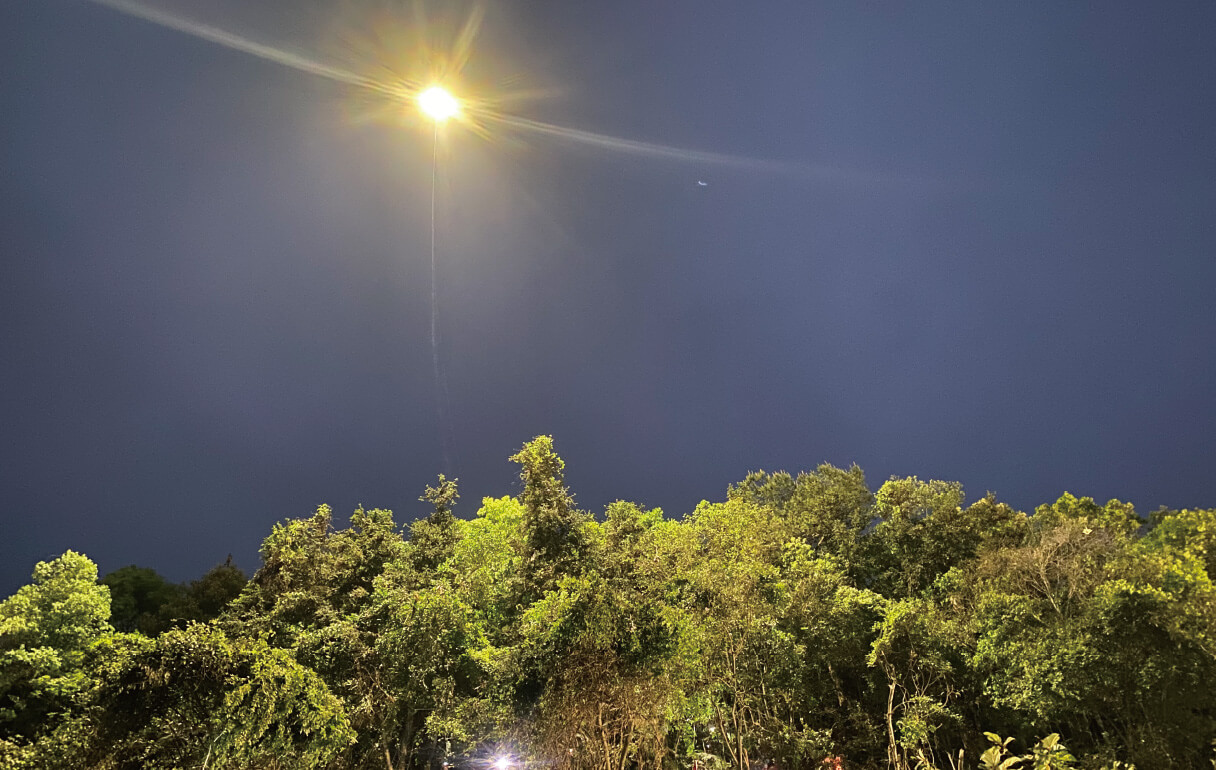

  • Lighting at Night

    Lighting at Night

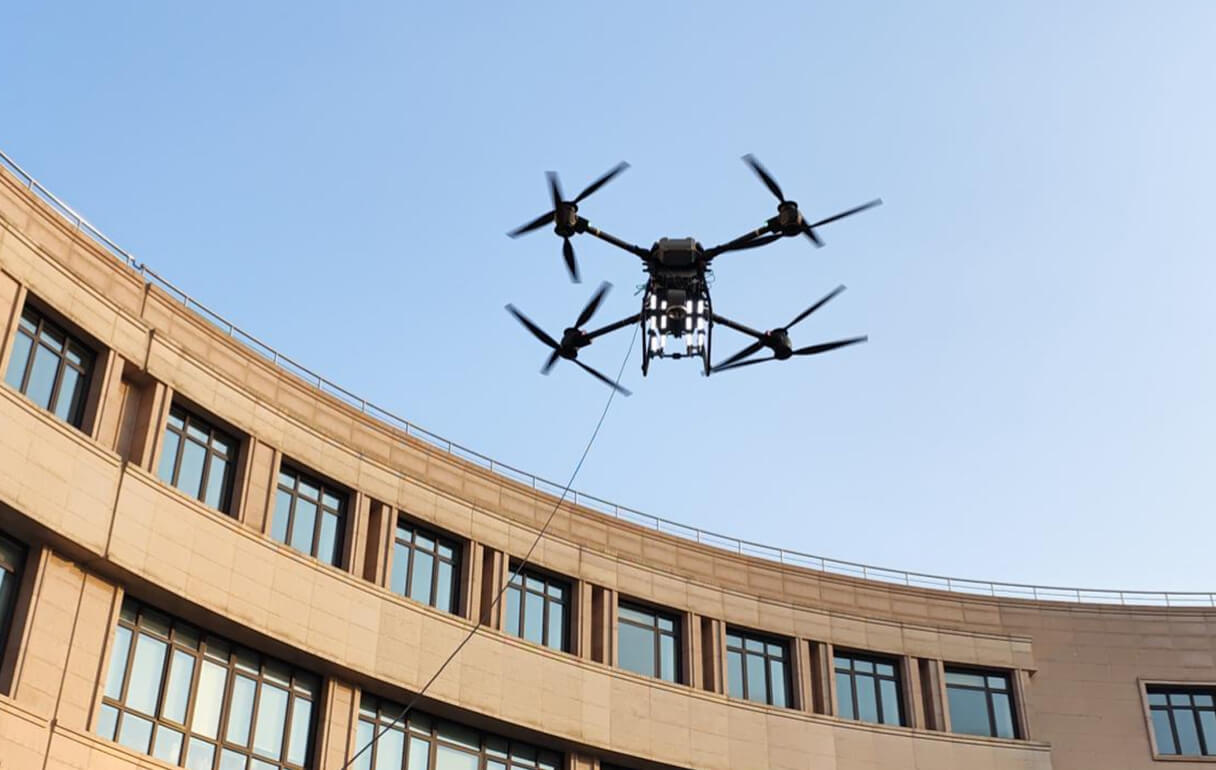

  • Emergency Communication

    Emergency Communication

Specification

Tethered Ground Station Parameters

Shell Material：
Aluminum Alloy
Cable Winch：
Manual + Automatic
Product Size：
422x350x225mm
Input Interface：
Supports 220V mains input
Product Weight：
13.4kg
Operating Temperature：
-20℃~55℃
Rated Power：
3000w
Continuous Output：
8h
Cable Length：
100m
Interfaces：
Type-C, USB, Ethernet (customizable)

Airborne Module Parameters

Product Model M300/350 Airborne Module M210/Inspire2 Airborne Module6S/12S Airborne Module
Shell MaterialAviation Aluminum AlloyAviation Aluminum AlloyAviation Aluminum Alloy
Product Size145x91x93mm181x99x56mm188x100x30mm
Product Weight500±10g350±10g550±10g
Rated Power2500w1500w1500w/2500w

Optional task load

Product Model：
FY-ZM640 Range Light (for M300)
Weight：
1344g
Illumination ：
80000lm
Rated Power：
640w
Illumination range：
4000㎡(100m)
Number of LED beads：
160 pcs
