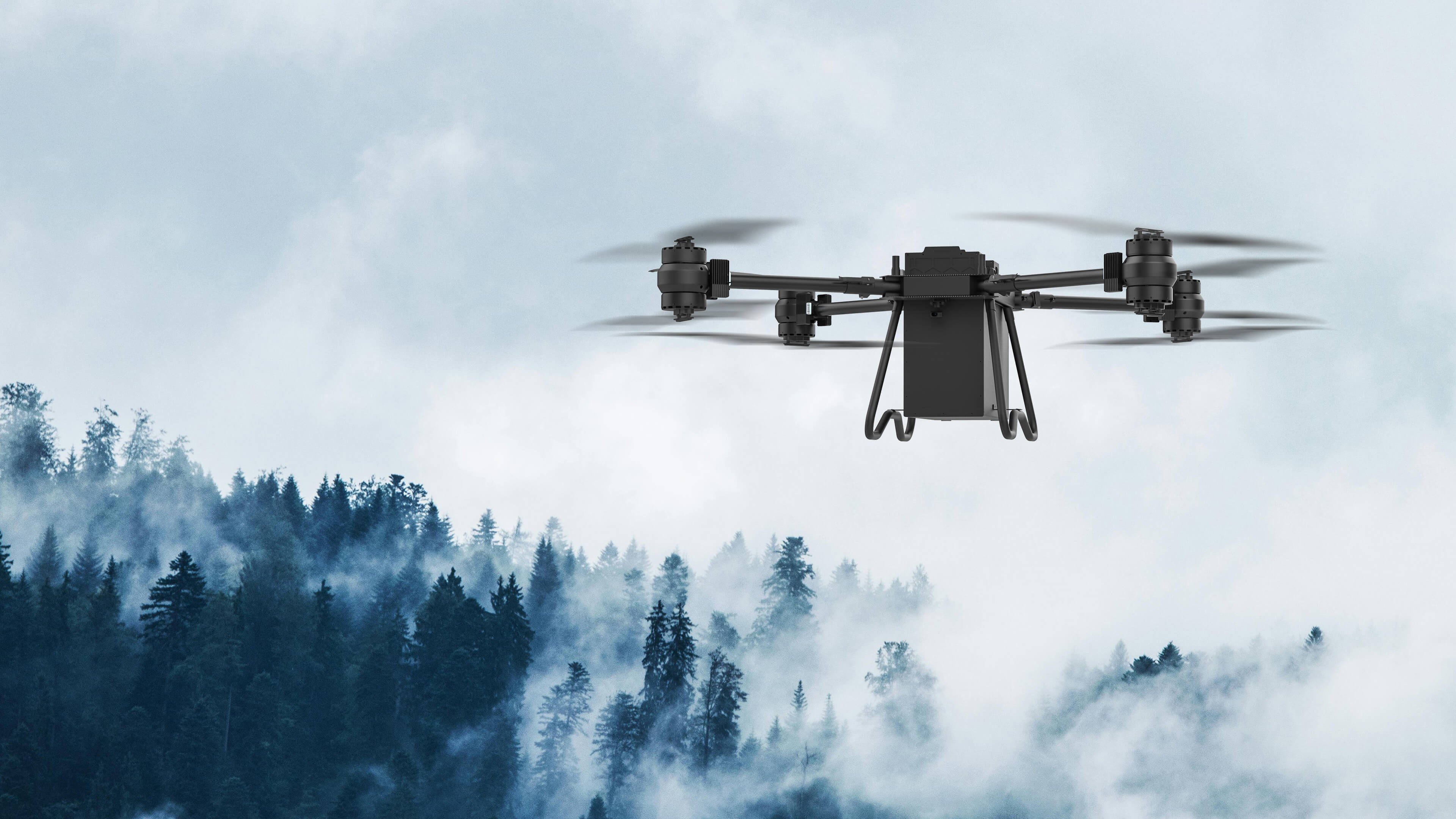

Born with Power, Deliver Beyond Limits

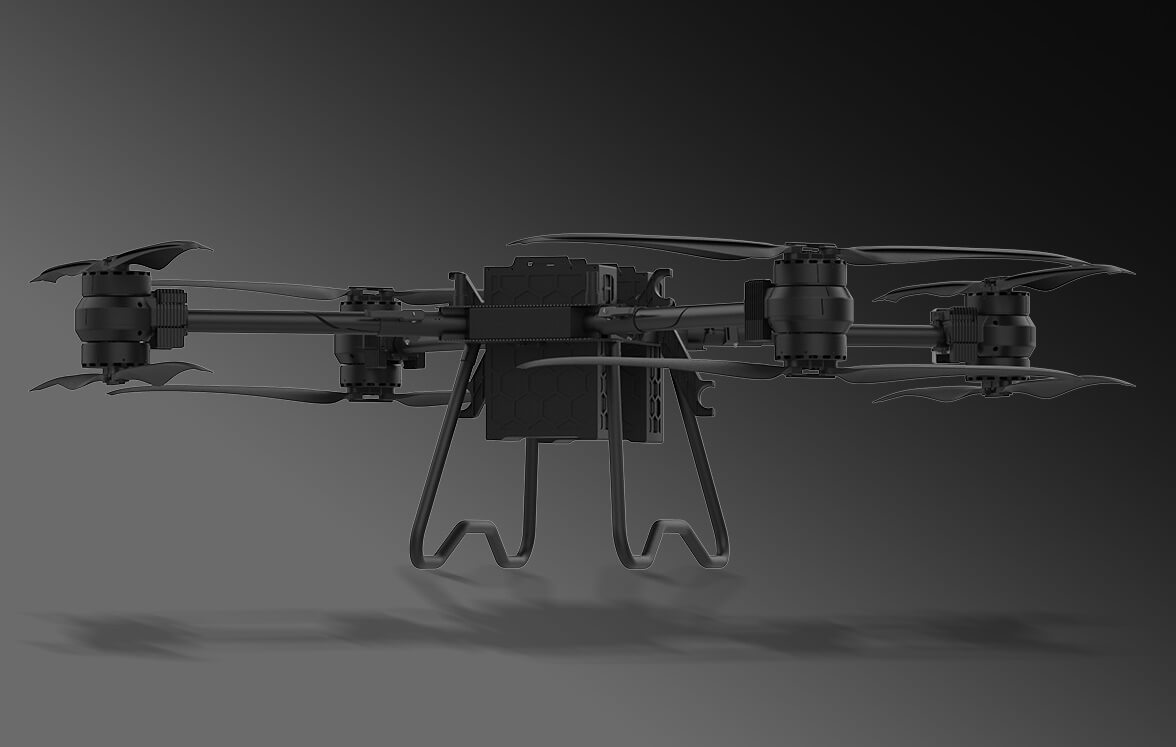

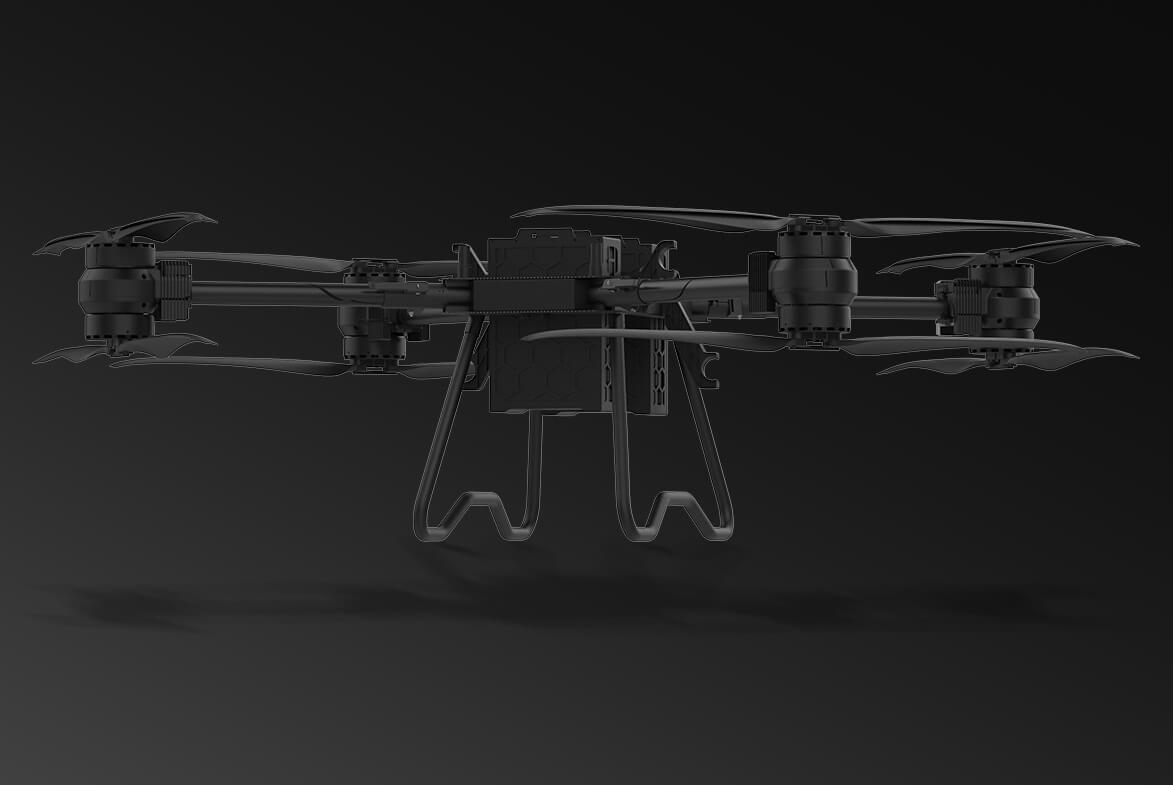

TS100 Dual-Rotor Quadcopter Platform

The Ultimate Heavy-Duty Drone – Redefining Logistics with Massive Payload, Extended Flight, and Full Autonomy.

50KG
Max Payload*
45Min
Max Flight Time*
15KM
Video Transmission Distance*
1080P
HD Camera*

Foldable

Auto Take-off and Landing

GPS/Beidou Positioning System

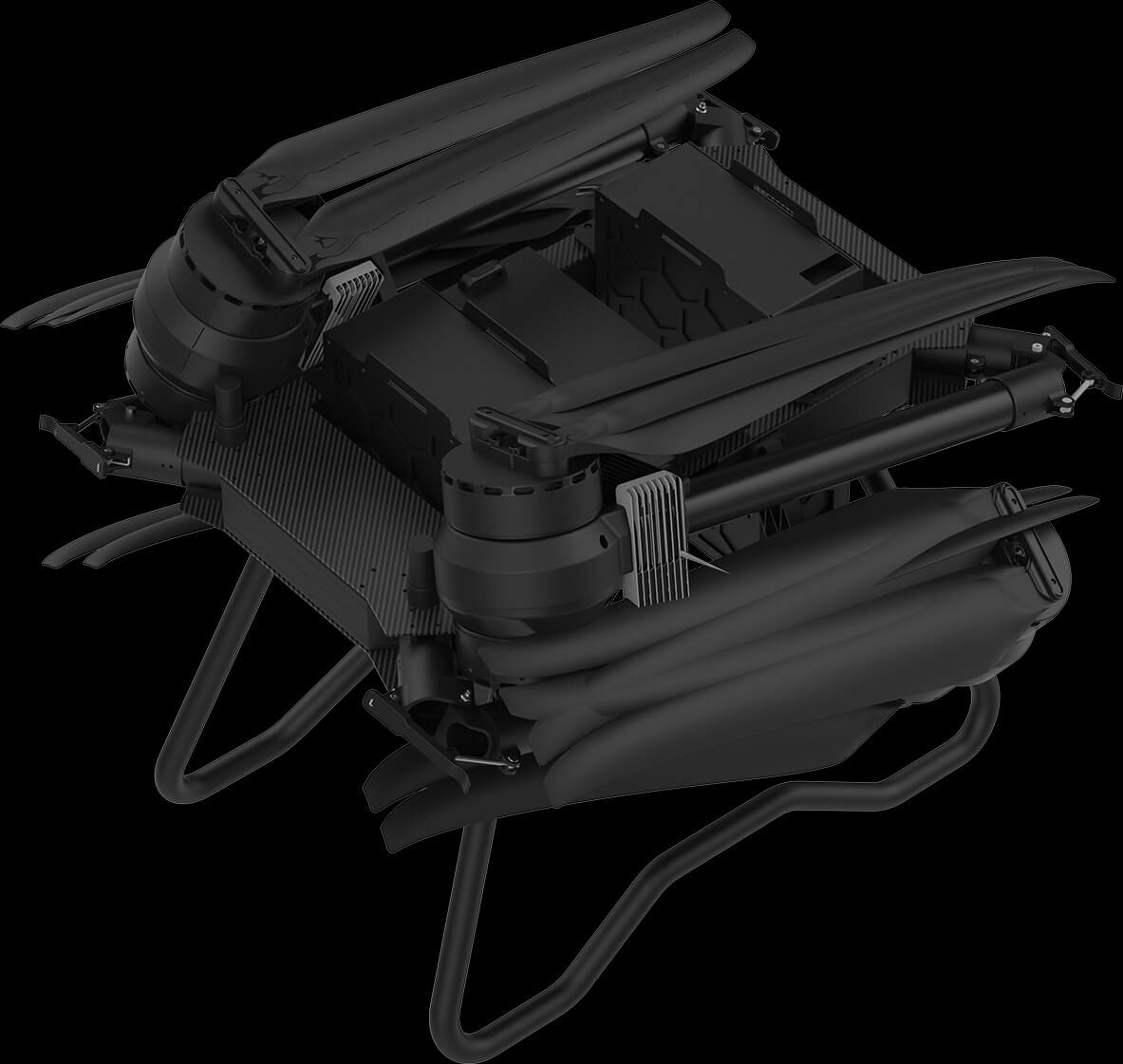

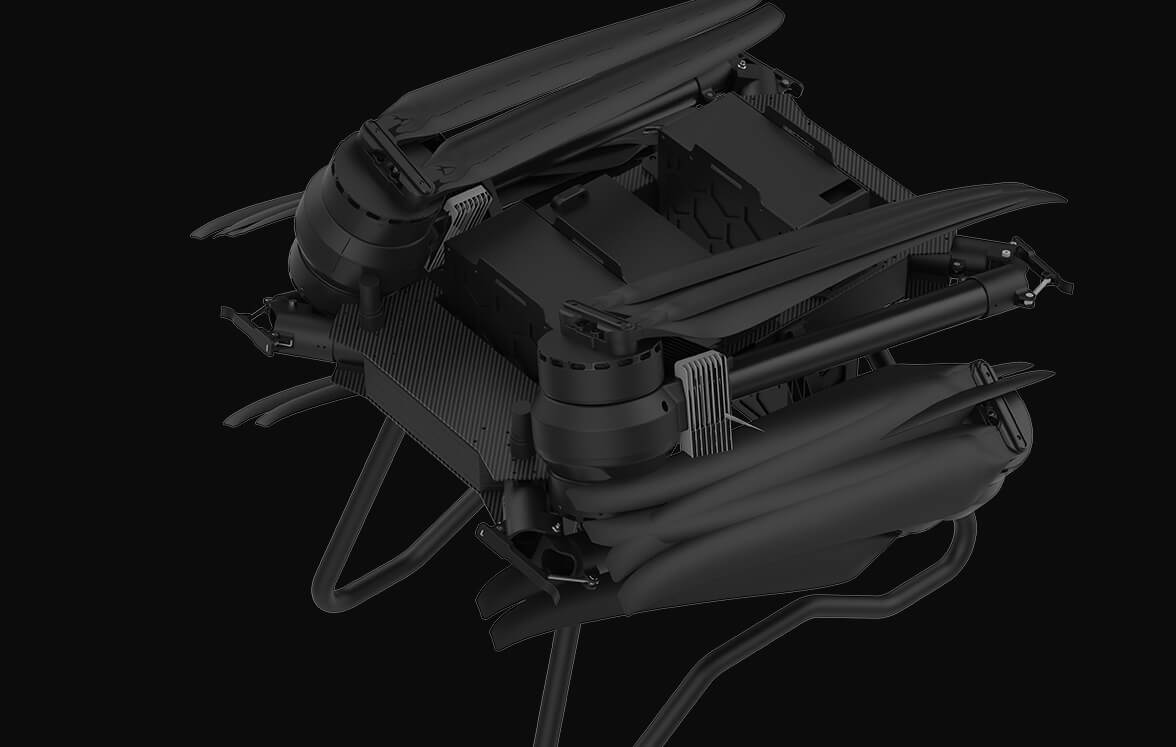

Unfold / Fold
Requires Only 90 seconds

Unflod Size：2930*2917*663mm
Folded Size：896*849*792mm

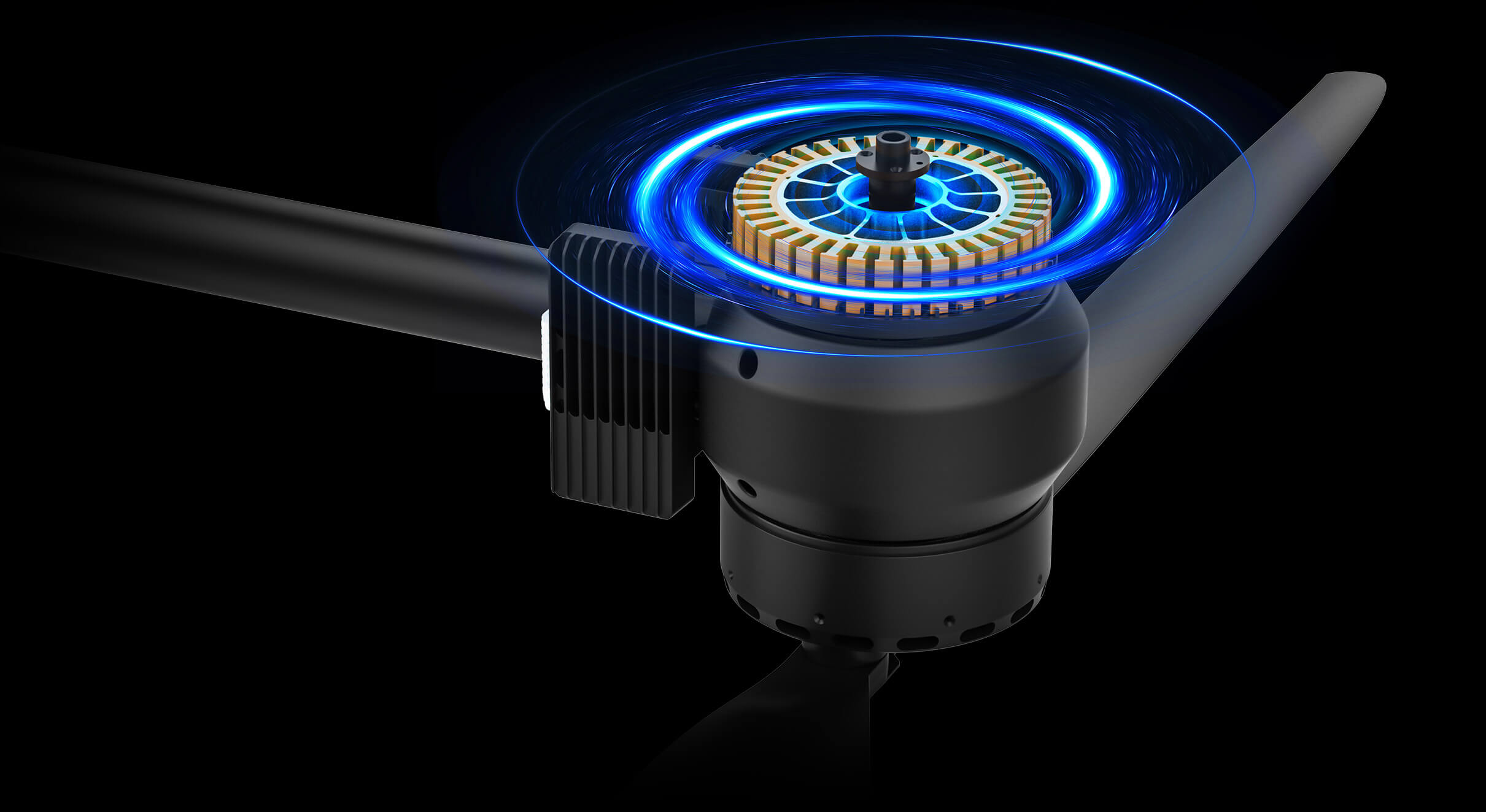

Surging power, flagship-level configuration.

Equipped with F13 power system, FOC magnetic field oriented control algorithm, 56-inch propeller blades, large pulling force, fast response, providing hard-core support for heavy transportation tasks.

1050-1950us
working pulse width
57Kg
single motor maximum tension

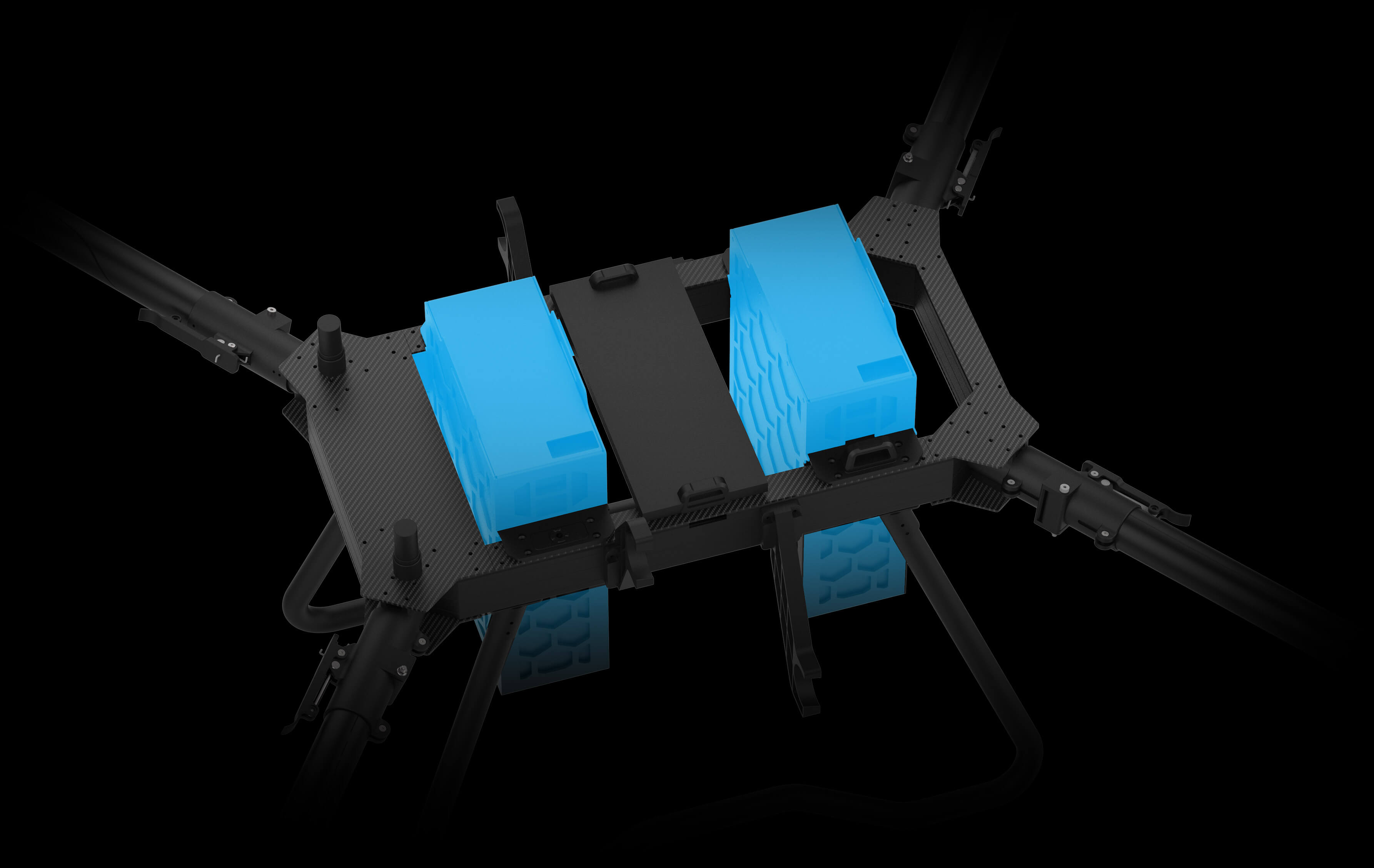

Dual-module battery compartment design, long battery life, high energy efficiency.

Equipped with two sets of 18S-49000mAh high-density batteries, removable battery compartment, support flexible switching between single/dual batteries, and quick on-site replacement to improve operation continuity.

The transport case has a space of up to 60 litres and can be customized according to requirements.

Single Battery Mode

Max Payload：100kg
Max Flight Speed：12m/s
Flight Endurance：8 min

Dual Battery Mode

Max Payload：100kg
Up to 17 minutes of battery life

Max Flying Altitude

1500m

Auto take-off and landing: One-click operation to automatically complete takeoff, route flight, and precise landing.

Smart Return: When the battery is below 15%, the signal is interrupted or the parameters are abnormal, the return to home is automatically triggered and the safe landing is carried out.

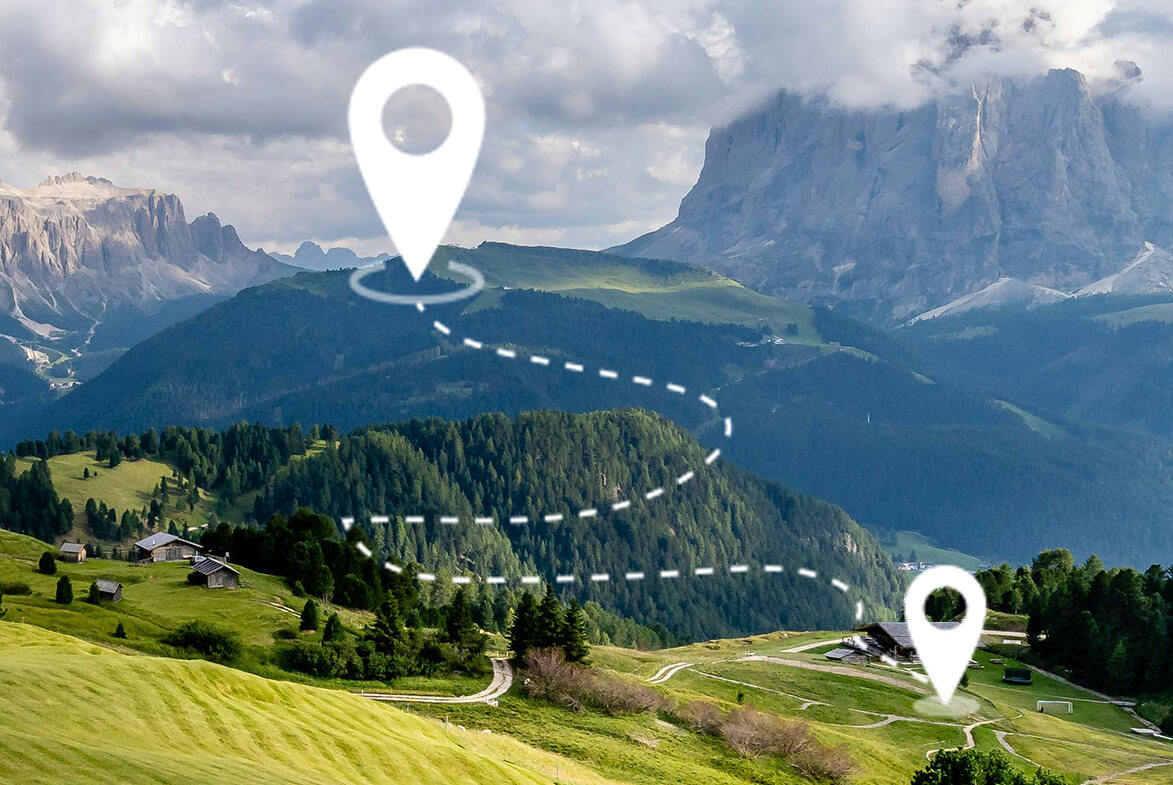

Preset route flight: Support multi-destination planning.

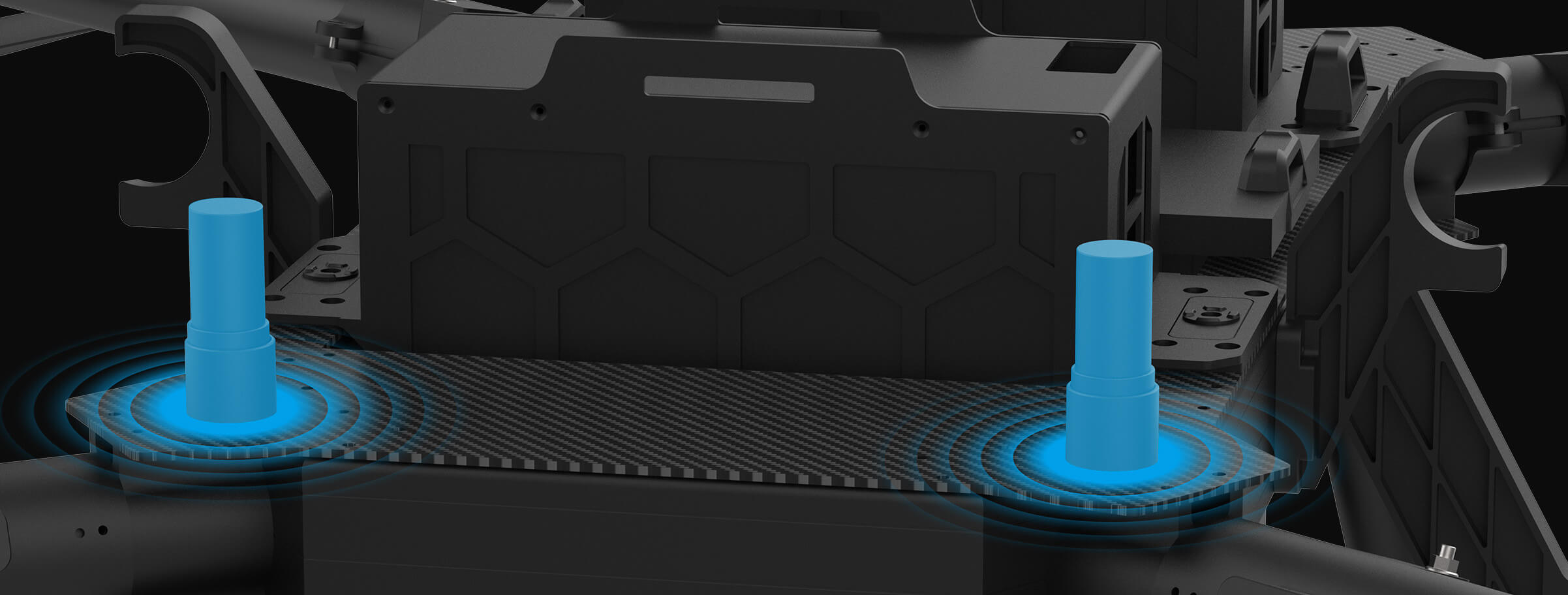

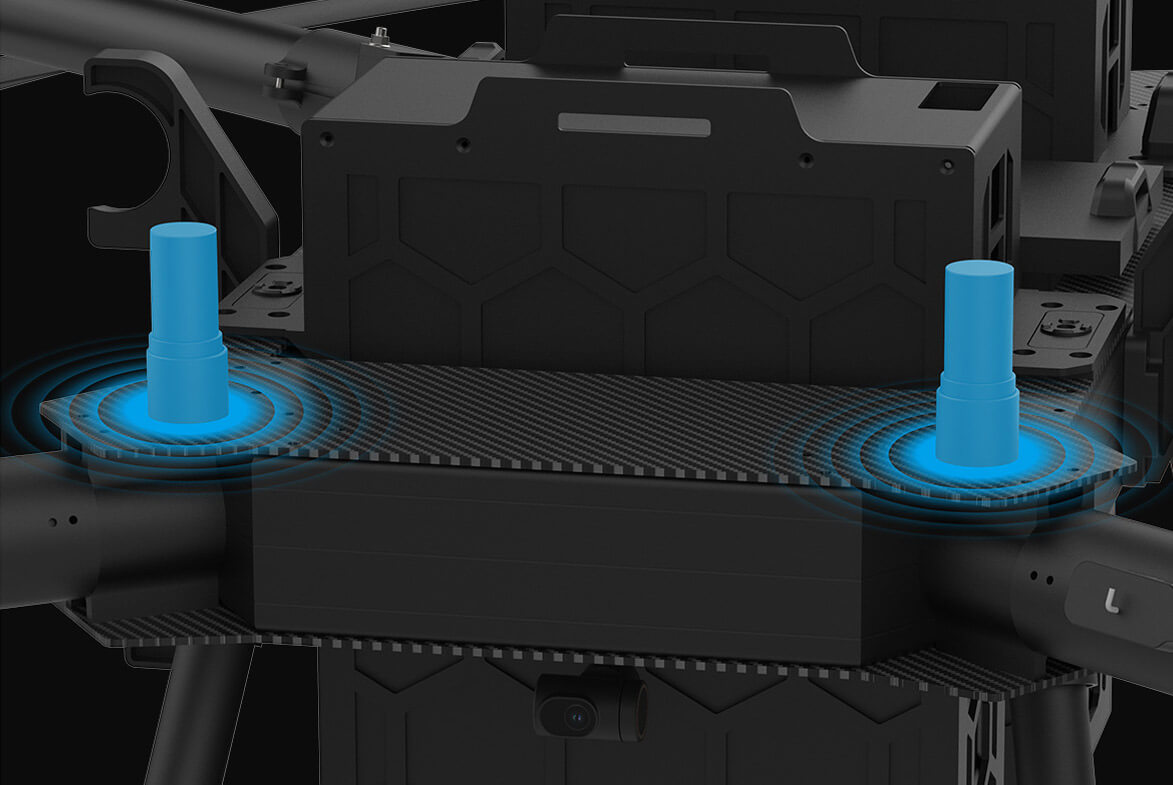

Precise positioning: In complex electromagnetic environments, RTK has a horizontal positioning accuracy of ± 10cm and a vertical accuracy of ± 20cm.

Large-screen remote control, precise operation.

It is equipped with a 5.5-inch high-brightness display, supports 15KM long-distance direct control, and 1080P high-definition picture quality. The screen superimposes flight parameters, electronic fence warnings, battery power and other information in real time, and can be controlled at will.

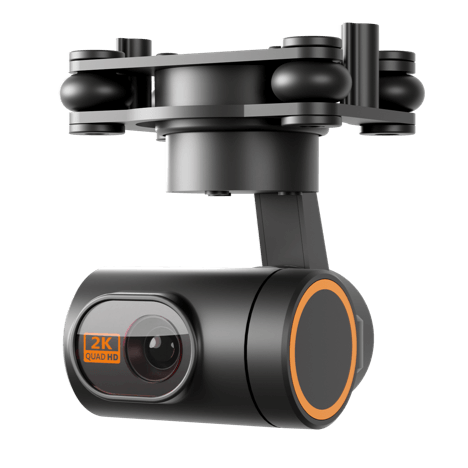

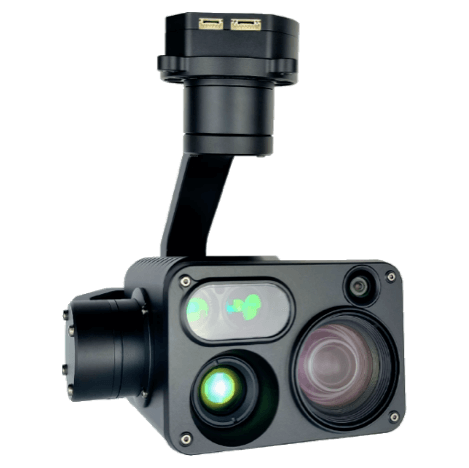

compact quad-sensor gimbal camera

30x single-sensor丨AI recognition & tracking gimbal camera

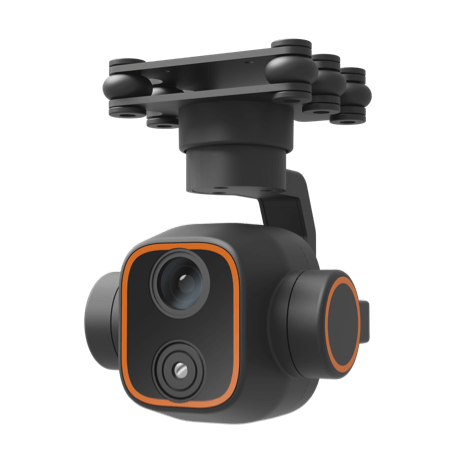

Mini dual-sensor camera

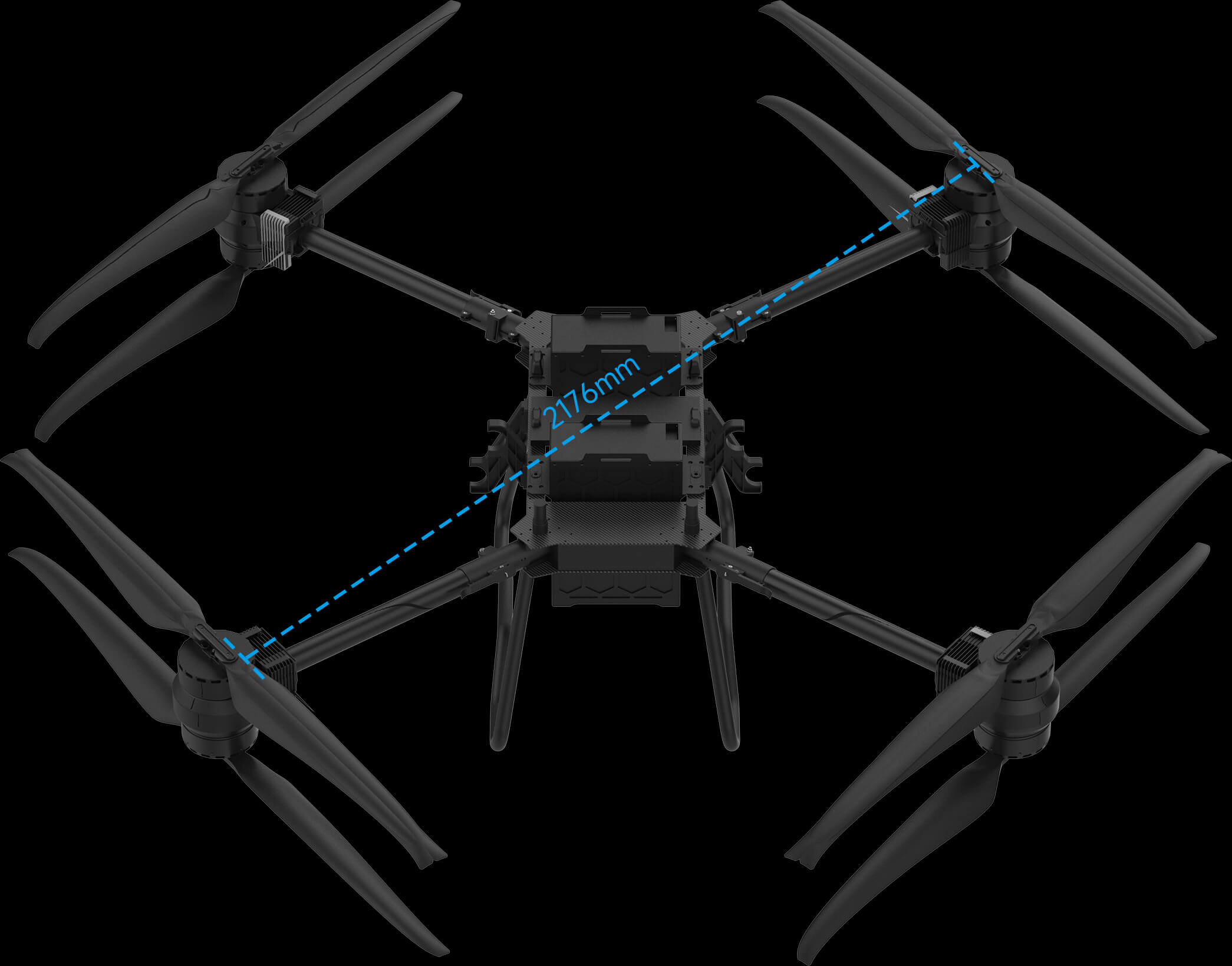

Type： Dual-Rotor Quadcopter Wheelbase： 2176mm
Unfold Size： 2930x2917x663mm Folded Size： 896x849x792mm
Weight： 41.8kg(excluded battery and loads) Max Payload： 100kg
Max Flying Speed： 12m/s Wind Resistance： Level 6
Max Take-off Weight： 168kg Mounted Platform： Detachable Battery Slot
Battery： 18S-49000mAh x2 Flight Time： 50min(empty load)/10min(load 100kg)
Max Flying Altitude： 1500m

Born with Power, Deliver Beyond Limits

TS100 Dual-Rotor Quadcopter Platform

50KG

45Min

15KM

1080P

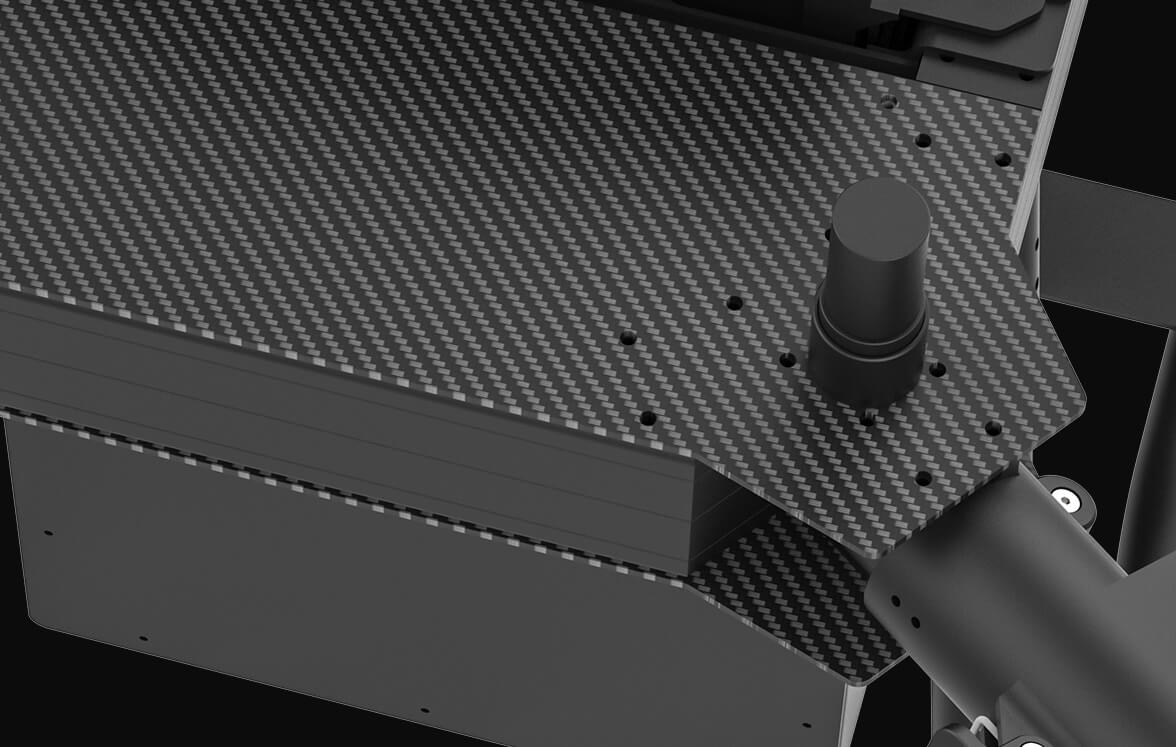

Integrally formed, strong and reliable.

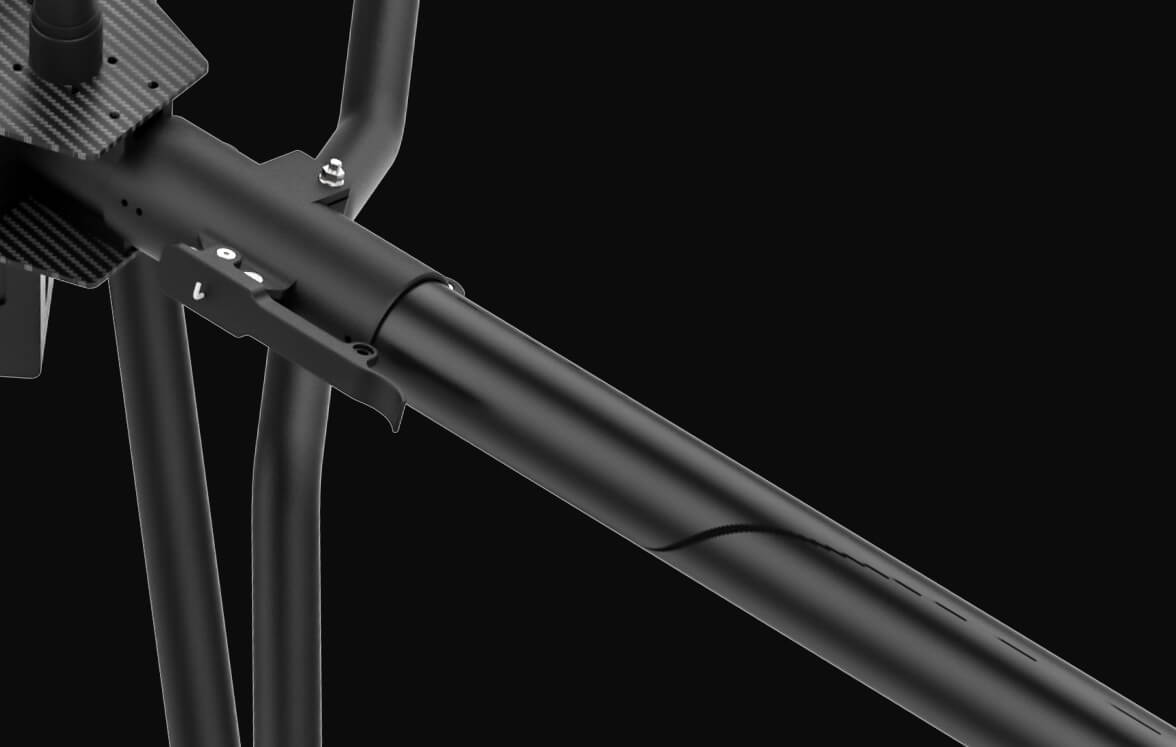

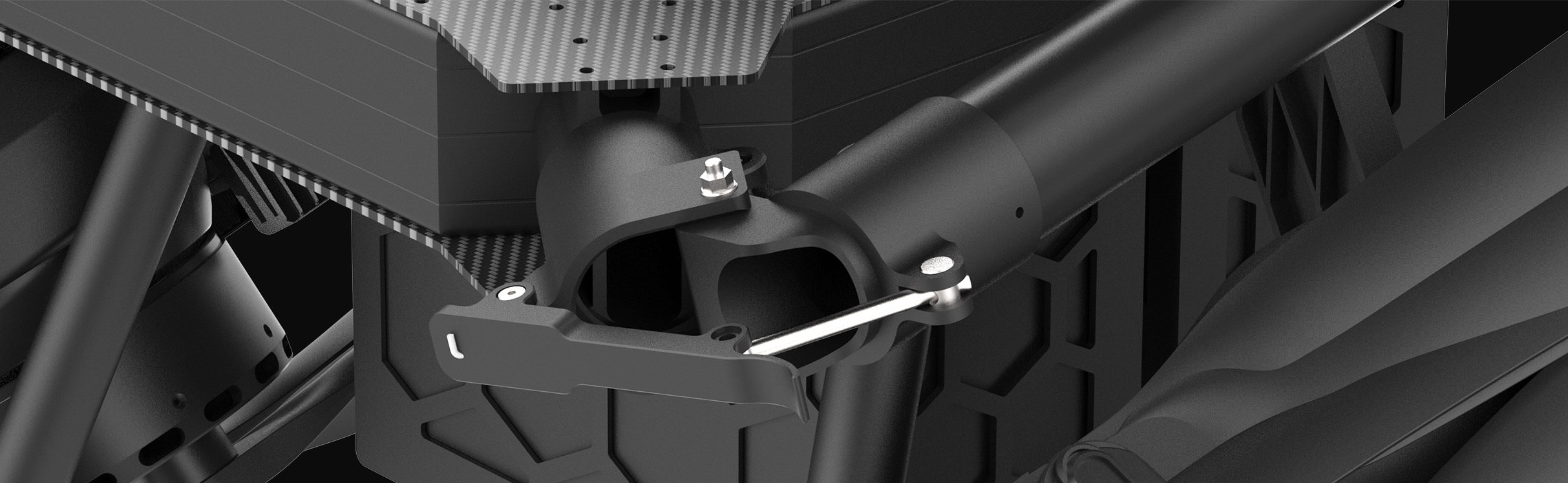

Snap-on folding arm, Easy to transport and quick to deploy.

Surging power, flagship-level configuration.

1050-1950us

57Kg

Dual-module battery compartment design, long battery life, high energy efficiency.

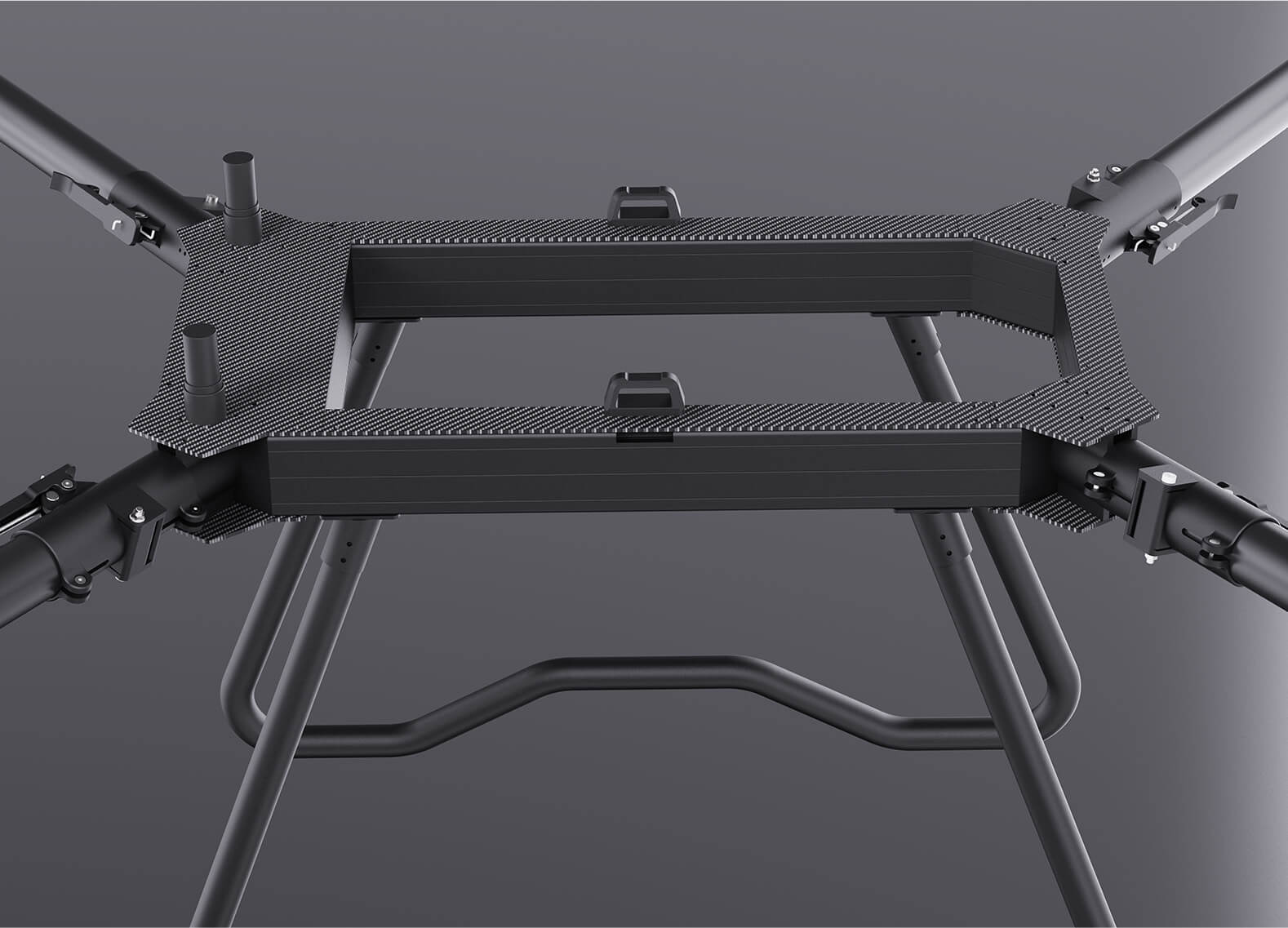

Open-Frame Design

Powerful transportation, stable operation.

The new generation of Feiyu intelligent flight control system operates autonomously and flies safely.

Large-screen remote control, precise operation.

Multiple mounts, unlimited expansion.

Technical Parameters
