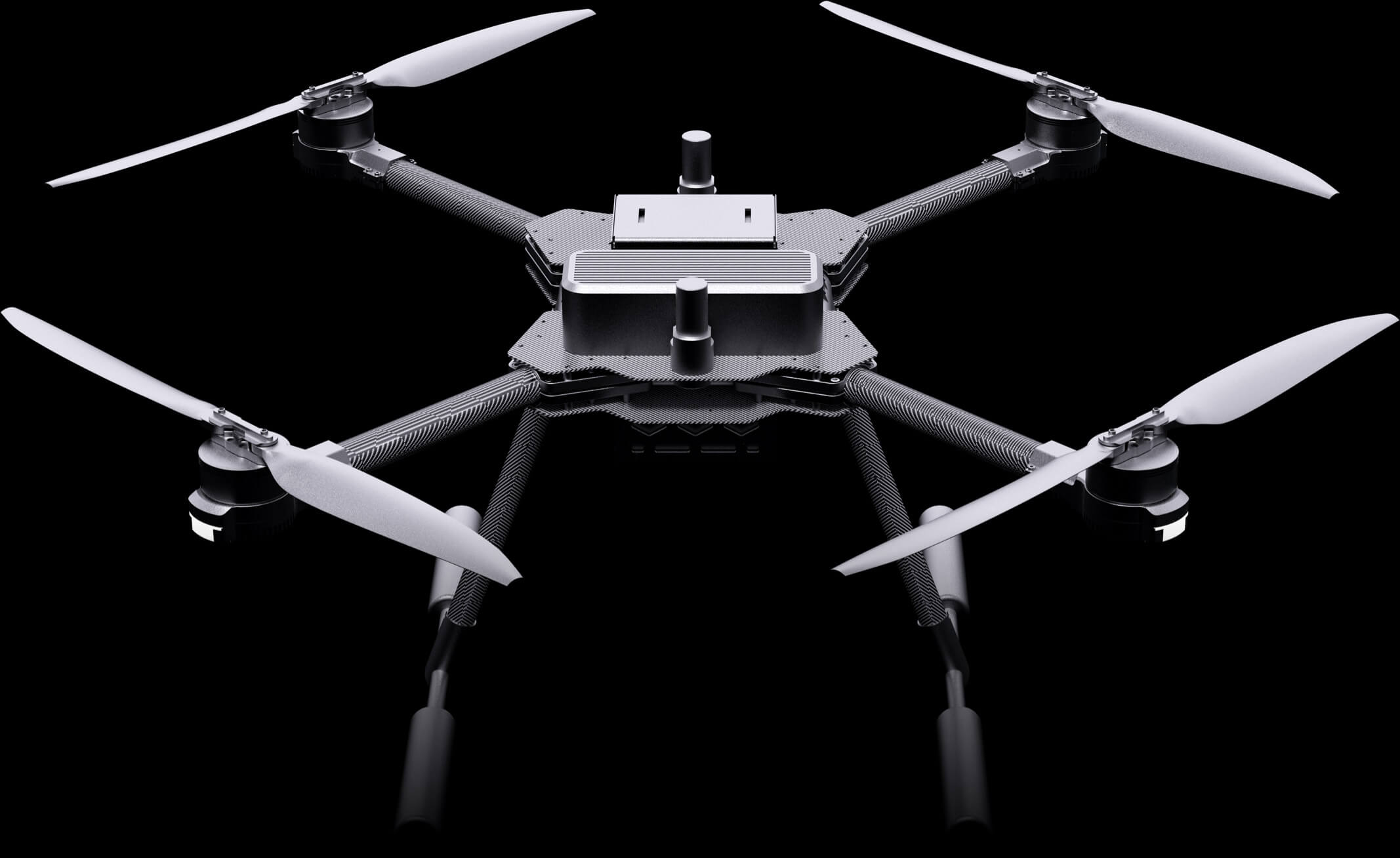

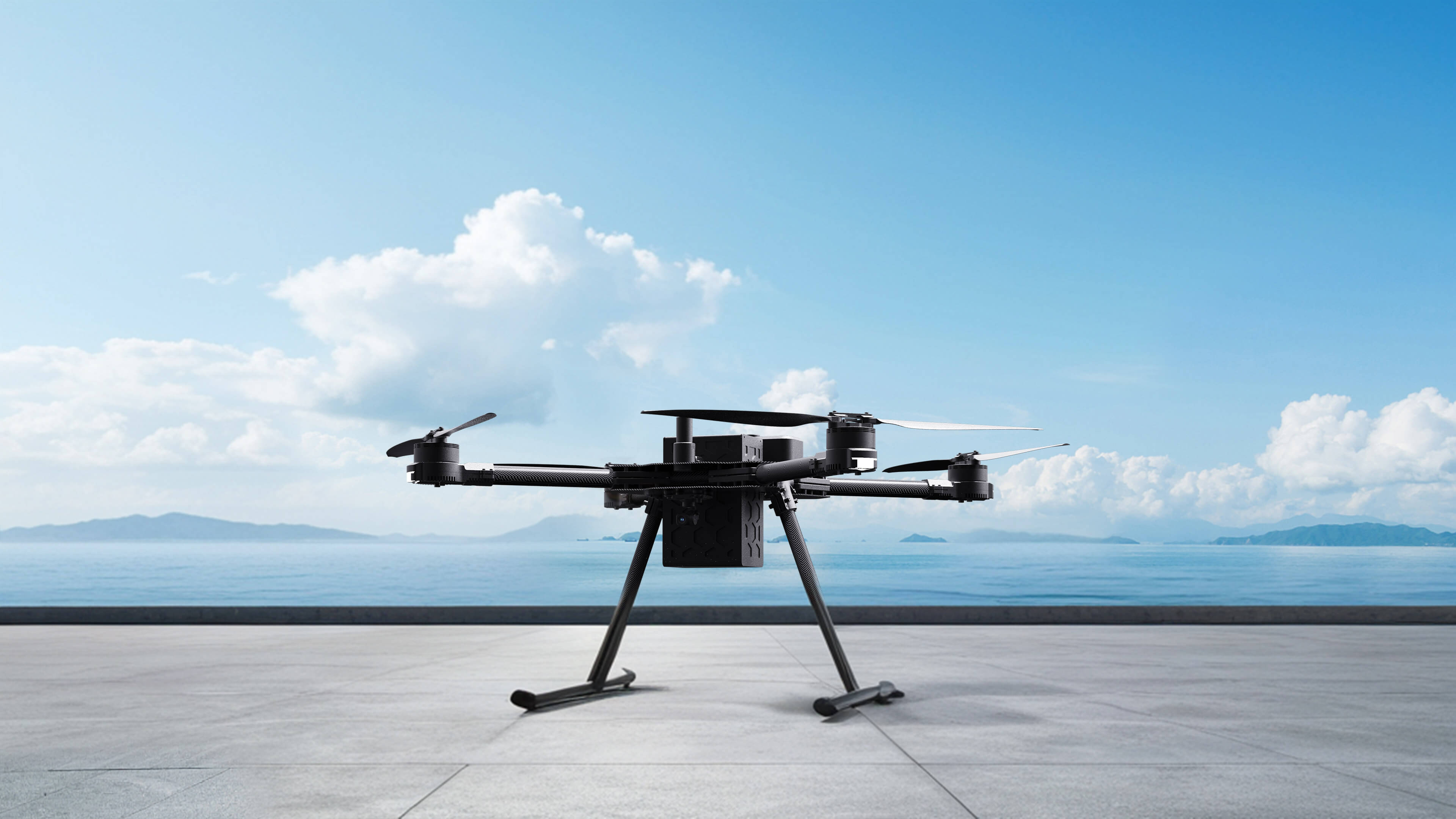

TS8 is a cost-effective four-axis four-propeller small transport drone built by Feiyu Tech. The wheelbase is 1 meter and has a load capacity of 8KG. Quick-release design for quick installation and recycling. The aircraft has excellent stability, high positioning accuracy, a battery life of up to 45 minutes, and a rainproof design of the fuselage for use in bad weather.
Max Payload*
Max Flight Time*
Transmission Distance*
Wind Resistance*
Max Cruising Speed*
Single-axis FPV Lens
Rainproof body

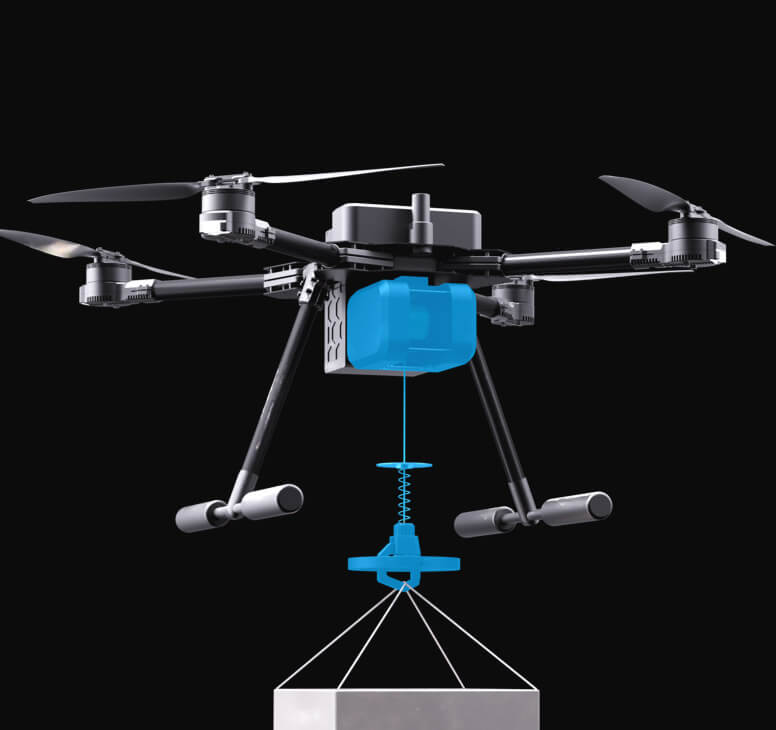

Customized Transport Lifting Device

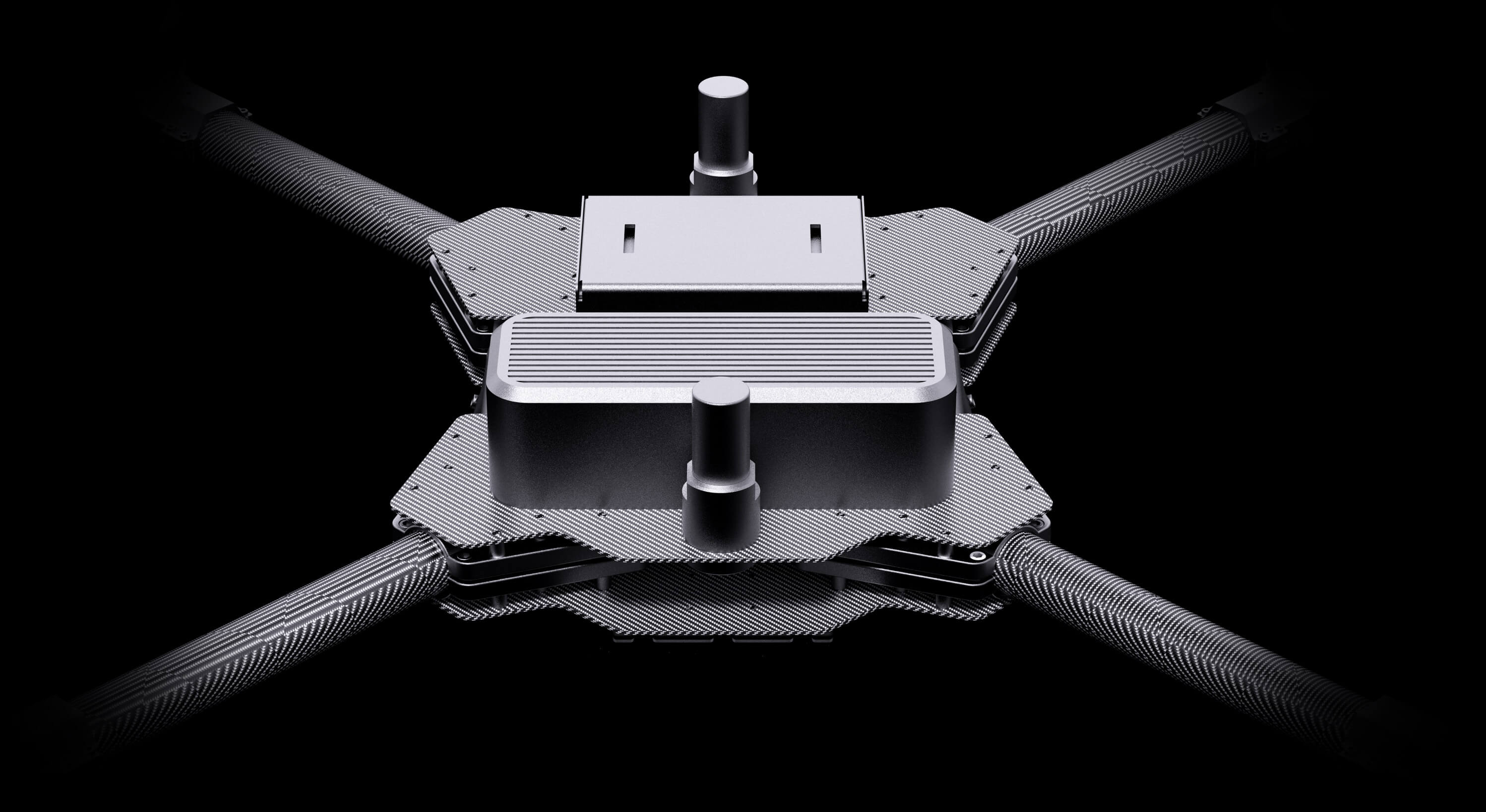

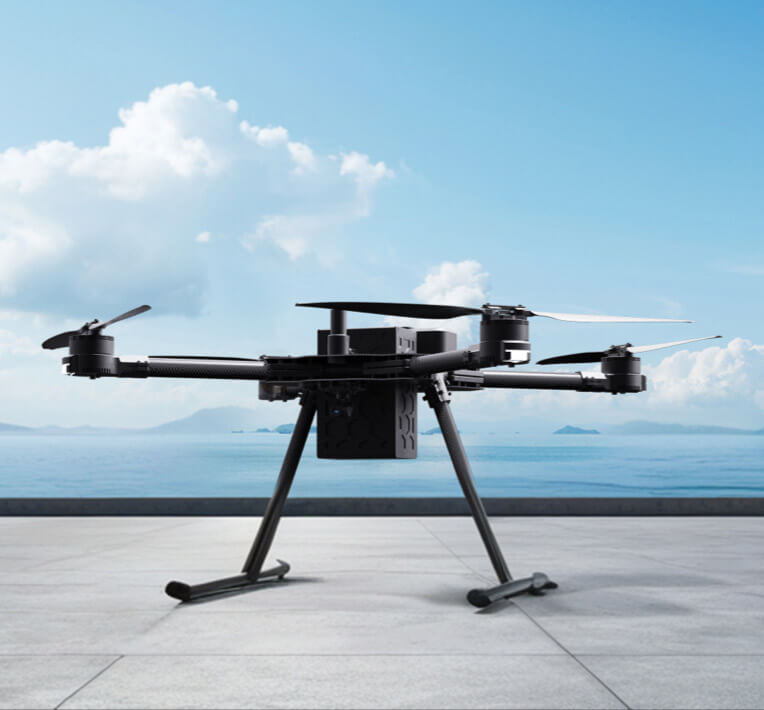

Featuring a full-body welding process and aerospace-grade ultra-light carbon fiber material, this drone ensures high strength while maintaining a lightweight and agile airframe. Its quadcopter design (4-axis, 4-propeller) with a 1000mm wheelbase, combined with waterproof & dustproof construction and Level 6 wind resistance, guarantees stable operation in all weather conditions.

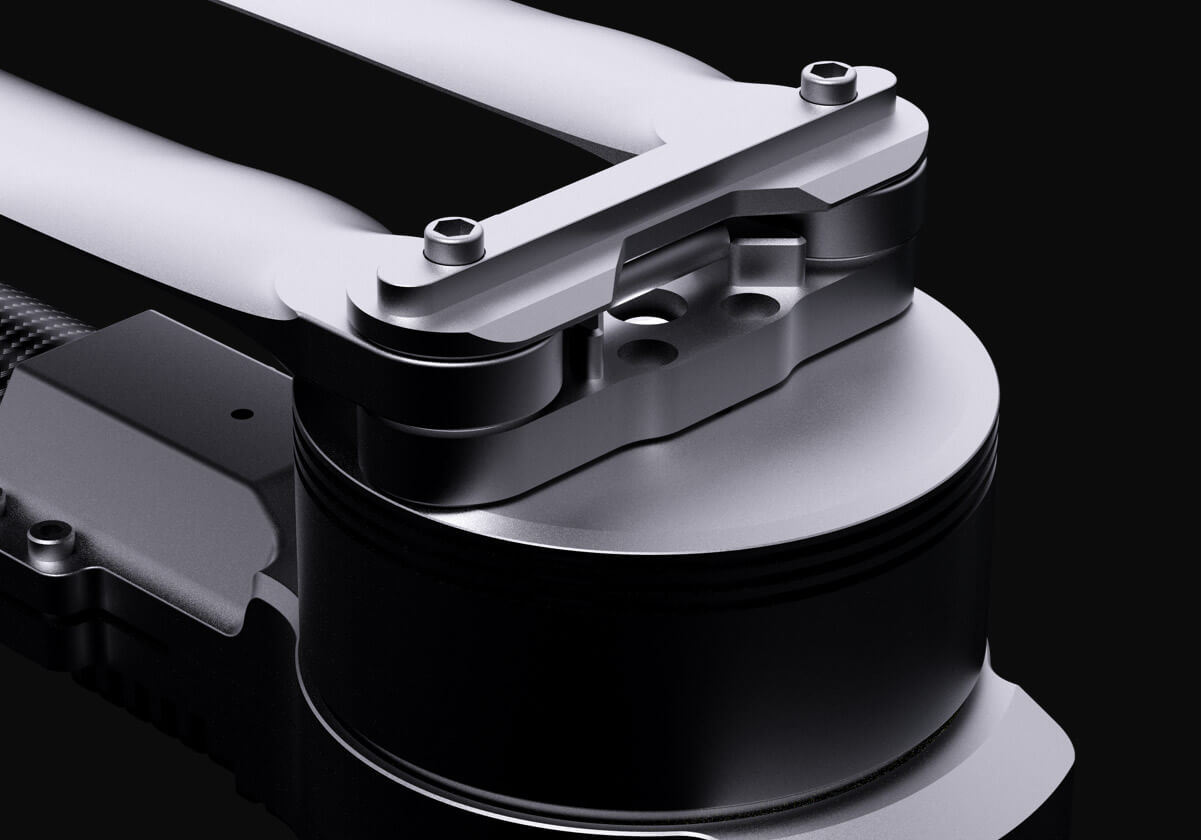

Built-in self-developed F6 power system, high performance, fast response, FOC dual current sampling electronic control system, response speed of 1050-1950us. 24×80 carbon fiber propeller with a maximum pulling force of 12Kg.

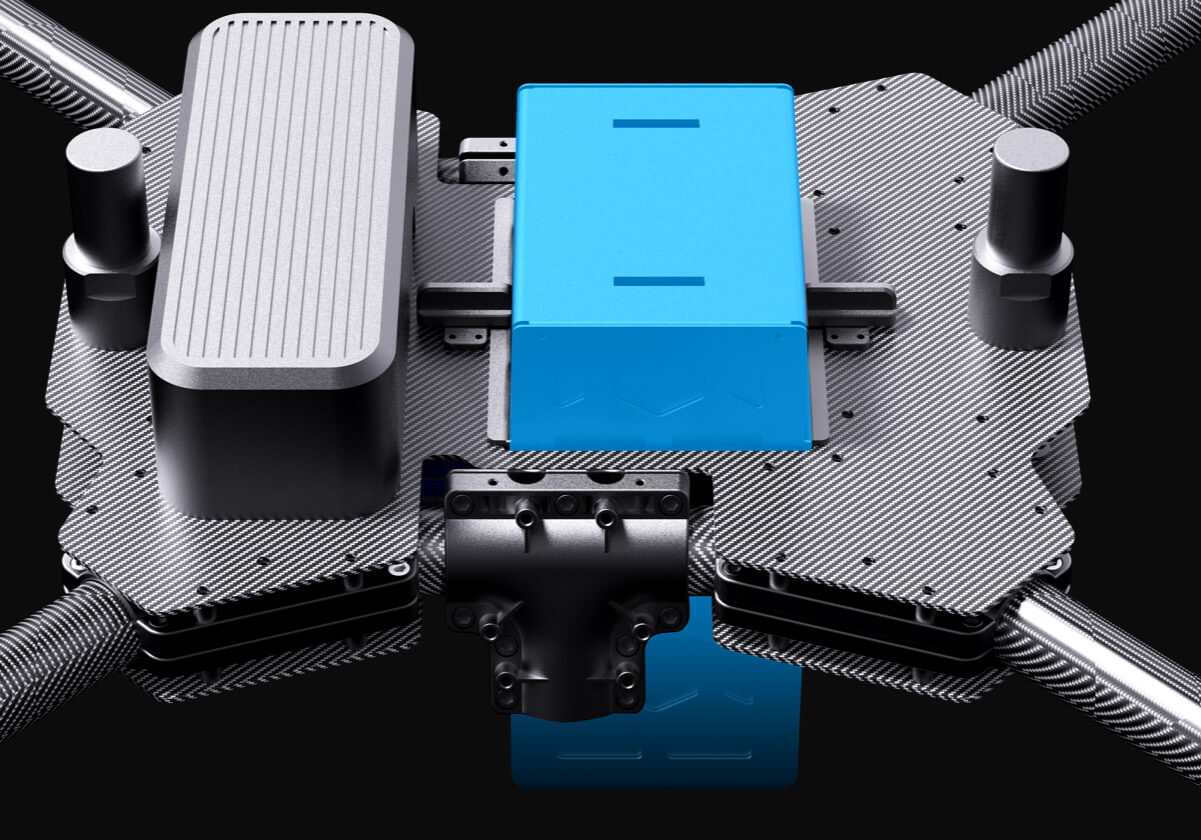

The 12S 22000mAh modular battery configuration is flexible and adjustable, and supports quick replacement to ensure operation continuity.
The whole machine is welded and made of aircraft-grade ultra-light carbon fiber material, which ensures high strength and light and flexible fuselage. The four-axle four-paddle layout with 1000mm wheelbase design is waterproof and dustproof, level 6 wind resistance, and stable operation.
Max Payload
Flight Time
Max Flight Speed
It's got GPS and Beidou positioning systems, plus high-precision RTK positioning and multi-sensor fusion algorithms. This makes things like precise landings and repeated flight paths super easy and safe.
After the route is planned, the route is automatically executed, effectively improving the efficiency of task execution.
When the battery level drops below 15%, communication is interrupted, or the sensor is abnormal, it will automatically trigger a return to home and accurately land to a safe point.
In a complex electromagnetic environment, the horizontal positioning accuracy of RTK is ± 10cm, and the vertical accuracy is ± 20cm.

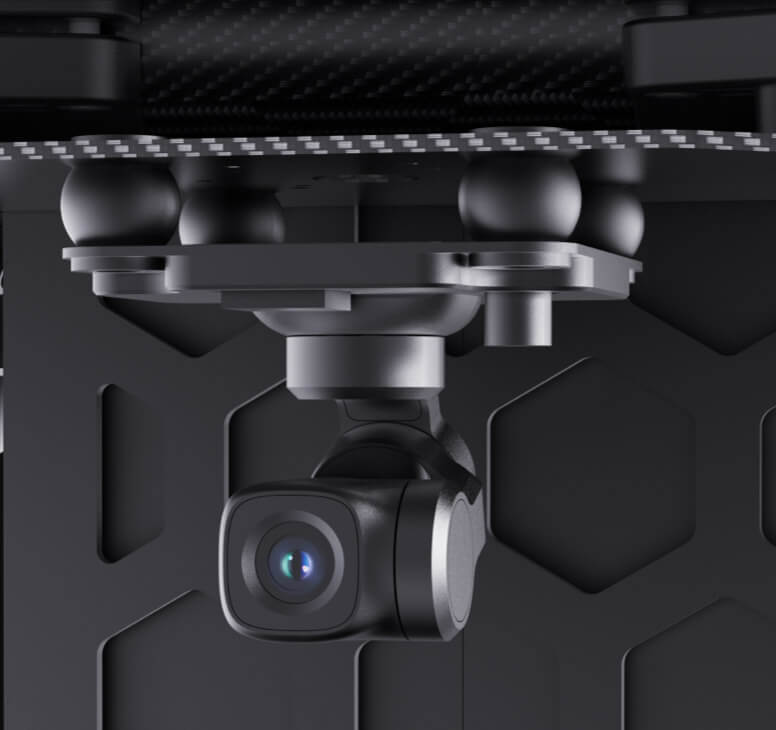

Standard configuration includes a 15KM transmission link, supporting synchronous transmission of image, data, and remote control signals across three channels. Paired with a 1080P HD FPV gimbal camera, it provides real-time feedback on operational visuals, enhancing the safety and accuracy of operations.

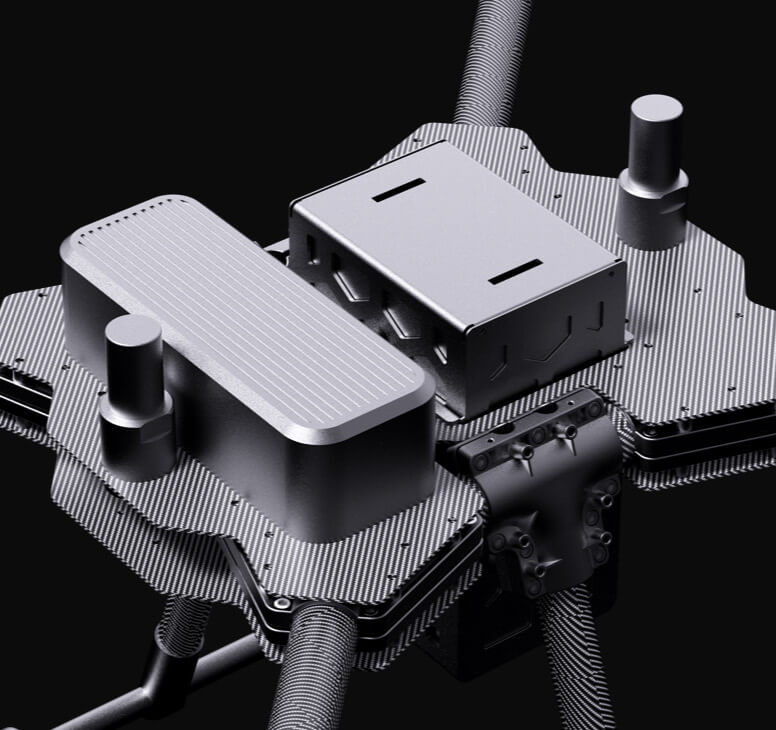

The open hanger of the fuselage supports customized expansion and can be quickly accessed: plant protection spraying system, logistics hook, surveying and mapping sensor, etc., to meet the installation needs of multiple fields.
Plant Protection Spraying System

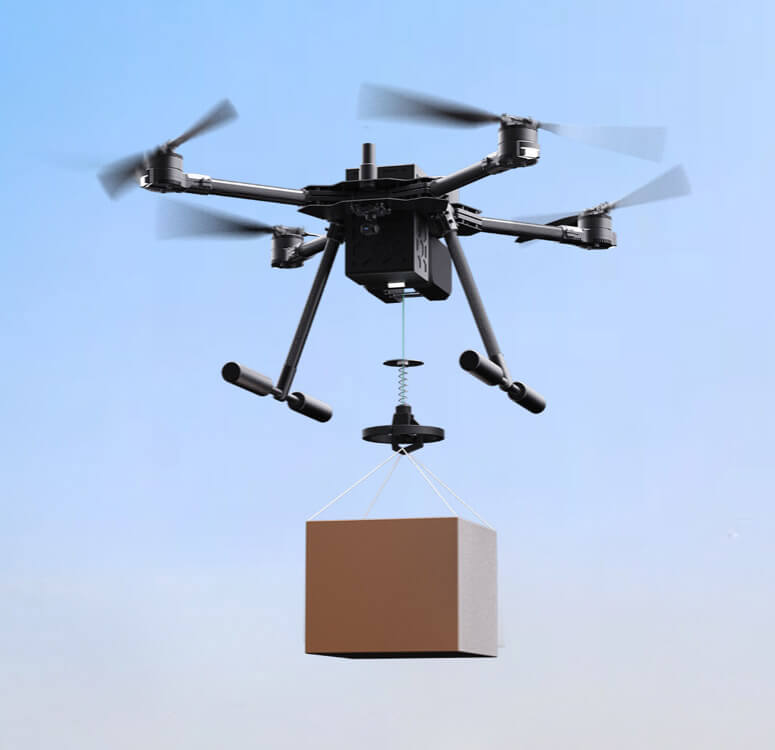

Logistics Lifting
Mapping Sensors
