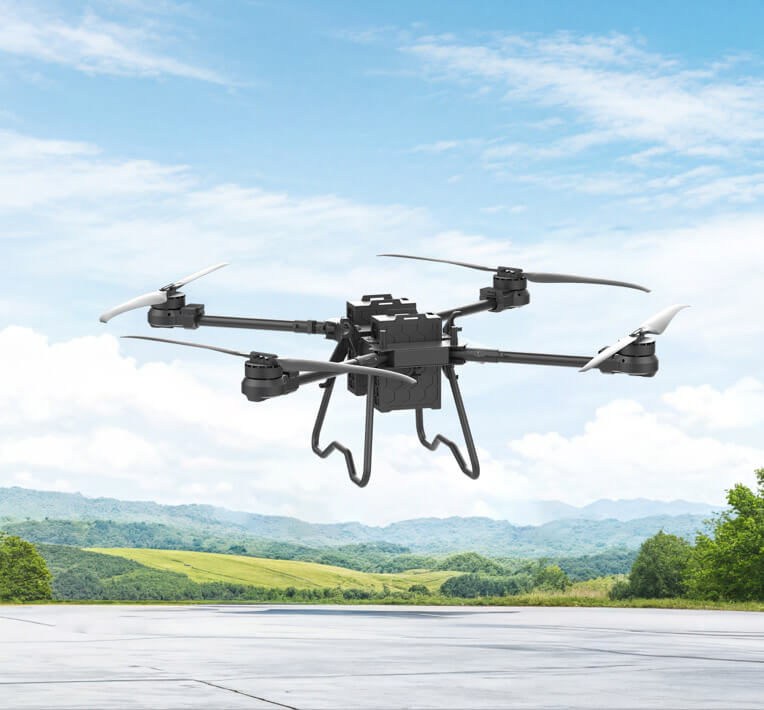

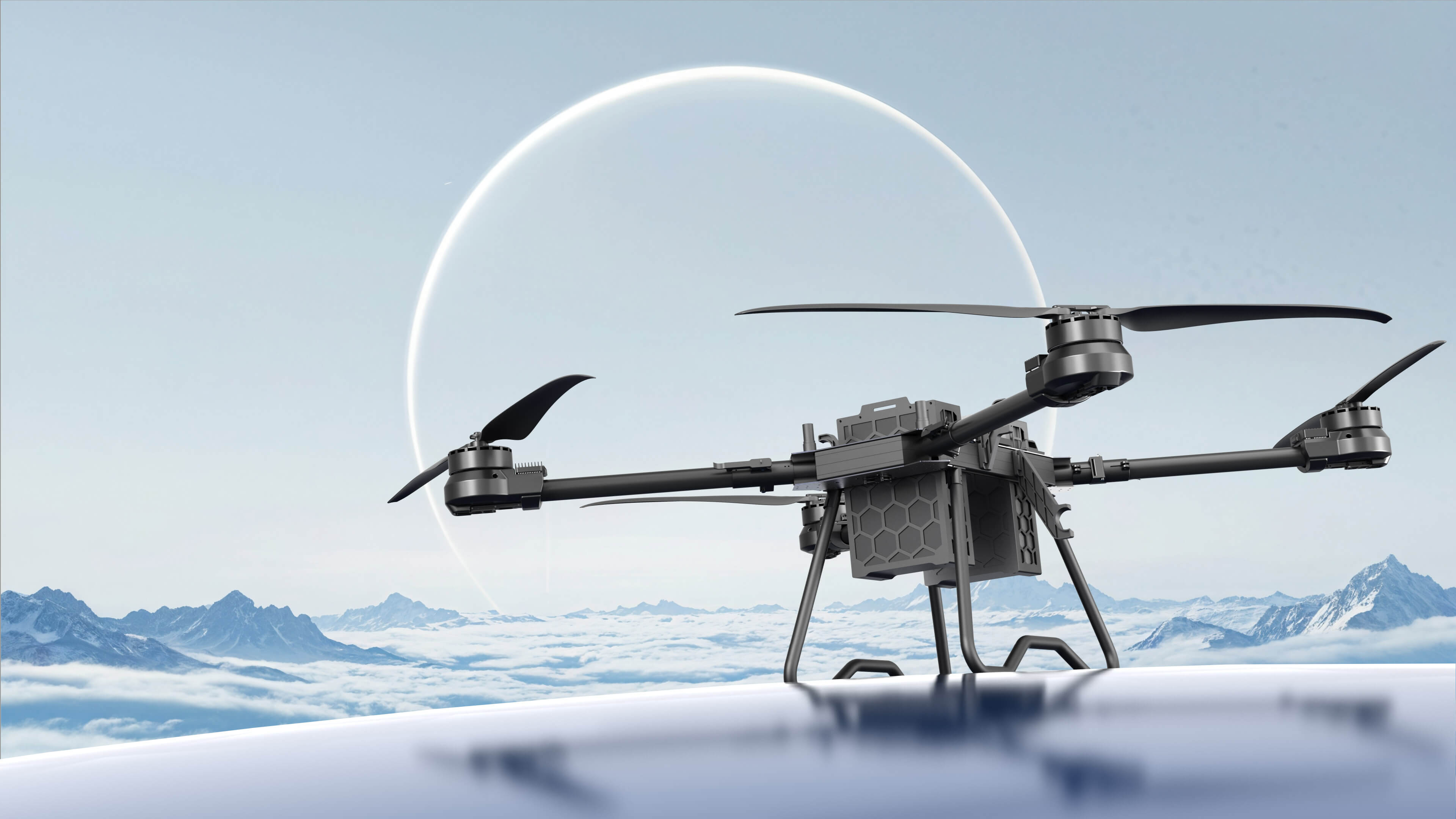

The TS50 frame is integrally molded, stable and reliable. The modular mounting achieves super load, extreme stability and fast response. Solve the problems of high cost, low efficiency and high risk of traditional transportation methods.
Max Payload *
Max Flight Time*
Video Transmission Distance *
HD Camera*
Foldable
GPS/Beidou Positioning System

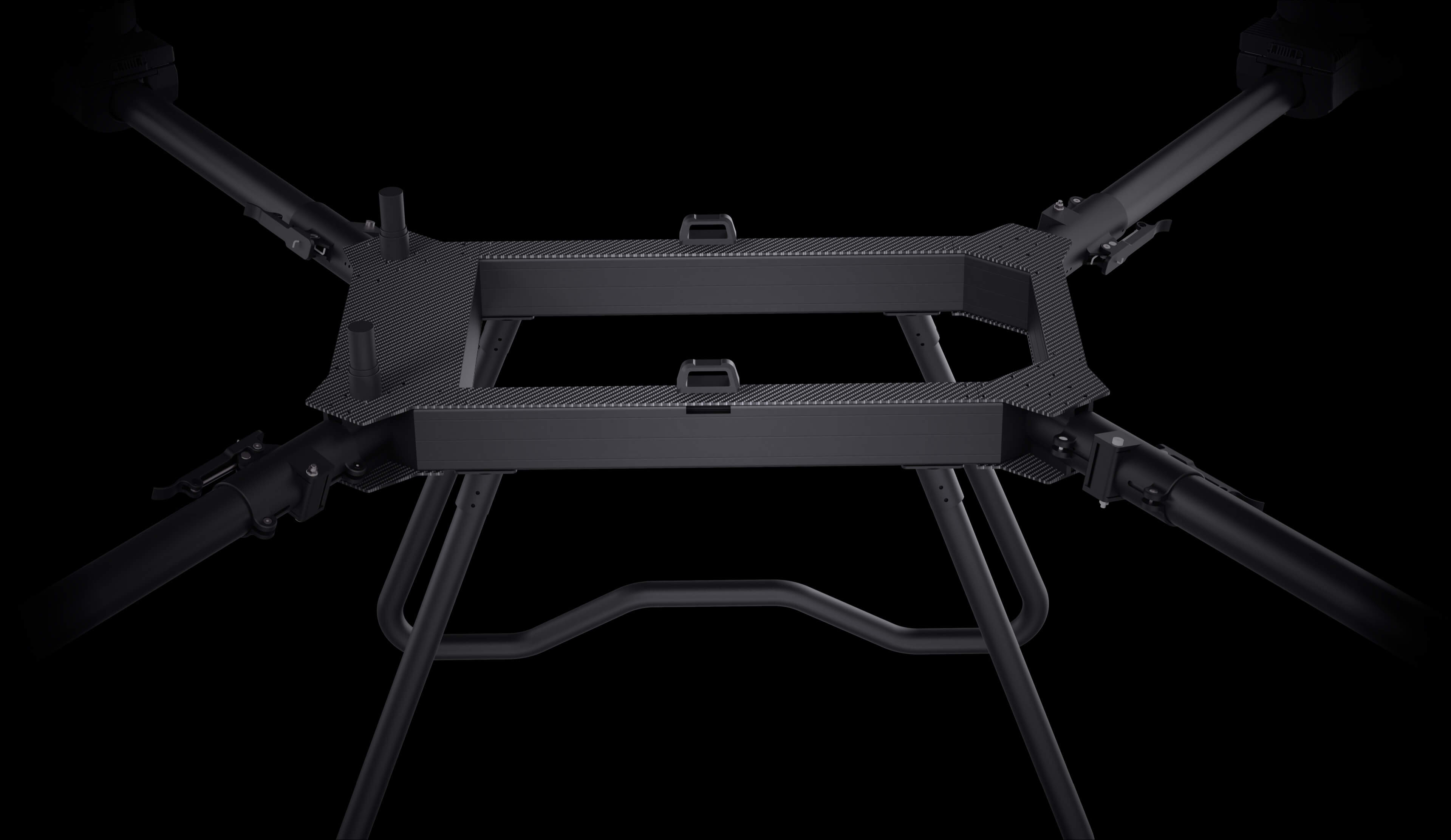

It adopts aviation high duralumin material, integral welding process, and integrated fuselage frame, taking into account lightweight, high strength and high toughness. Large four-axis fuselage frame, 2176mm large wheelbase design, wind resistance up to level 6, easy to cope with multi-scene operations.

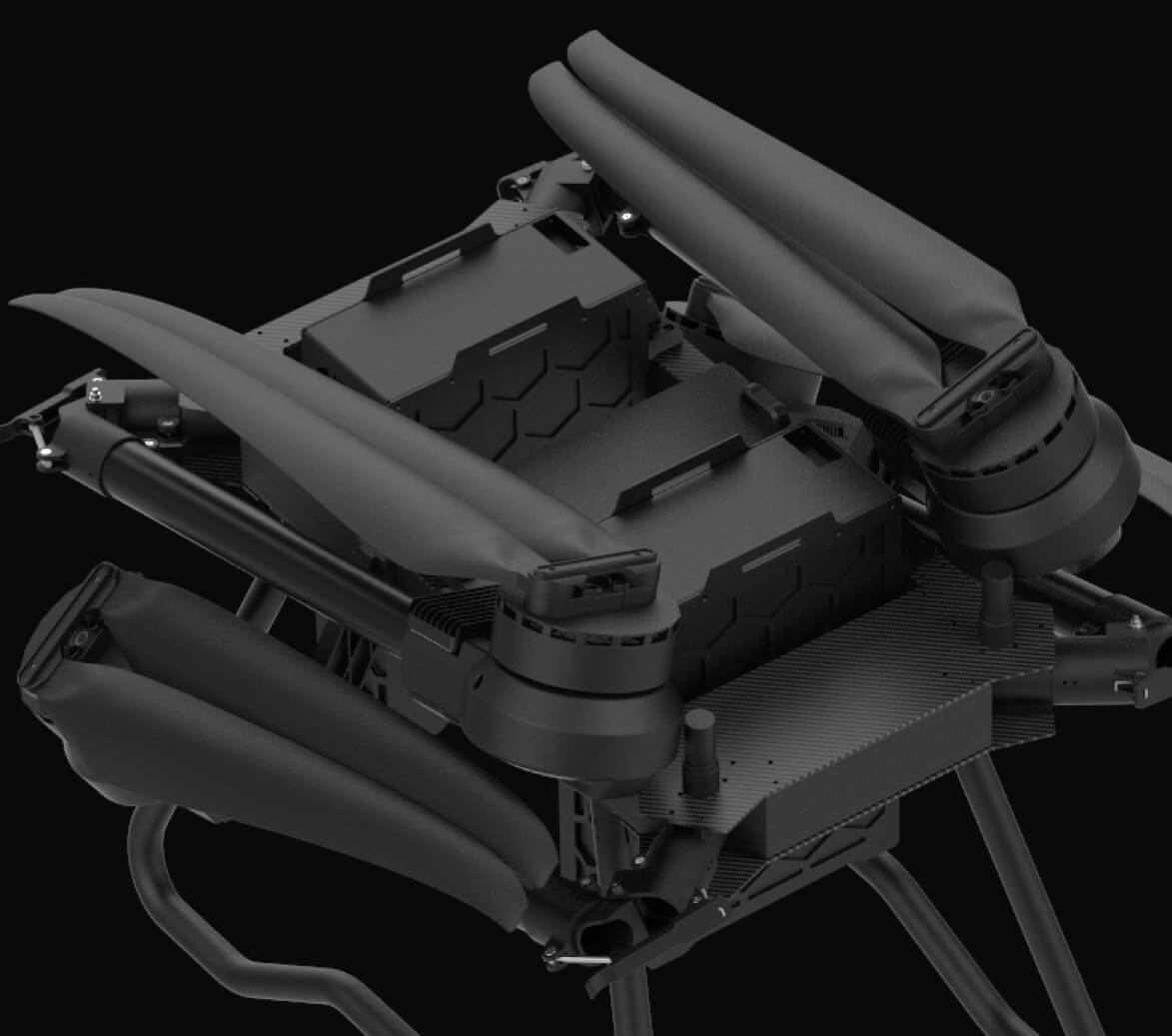

4 sets of self-locking quick-release joints, unfolding/folding in only 15 seconds, folding volume reduced by 70%, suitable for a variety of mobile transportation scenarios.

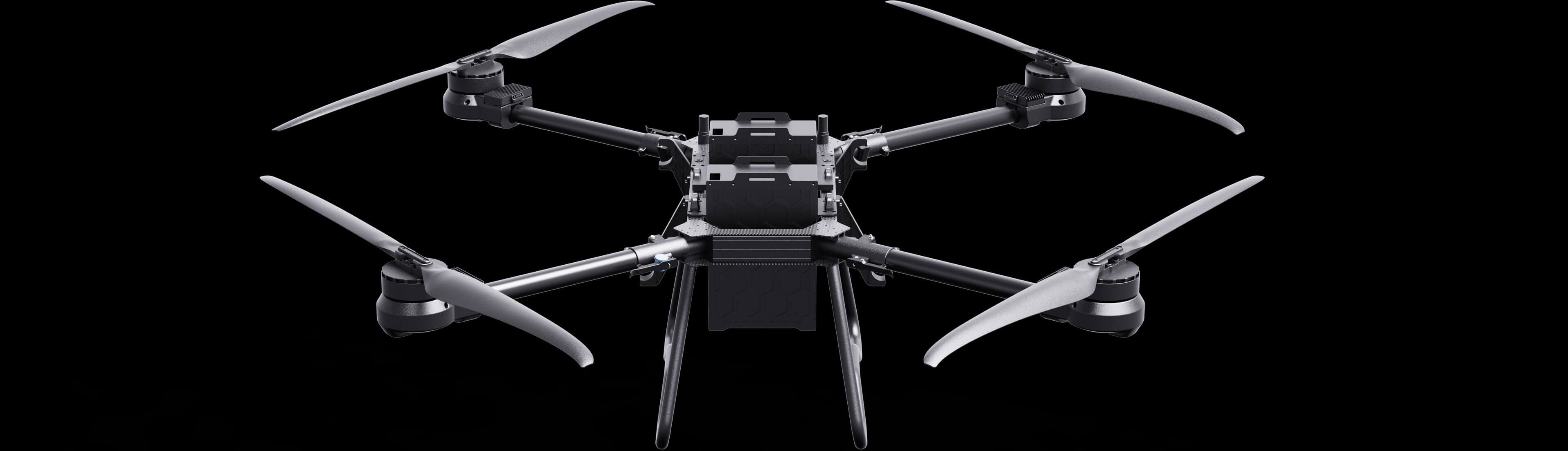

Unfold Size:2930*2917*663mm
Folded Size:896*849*792mm

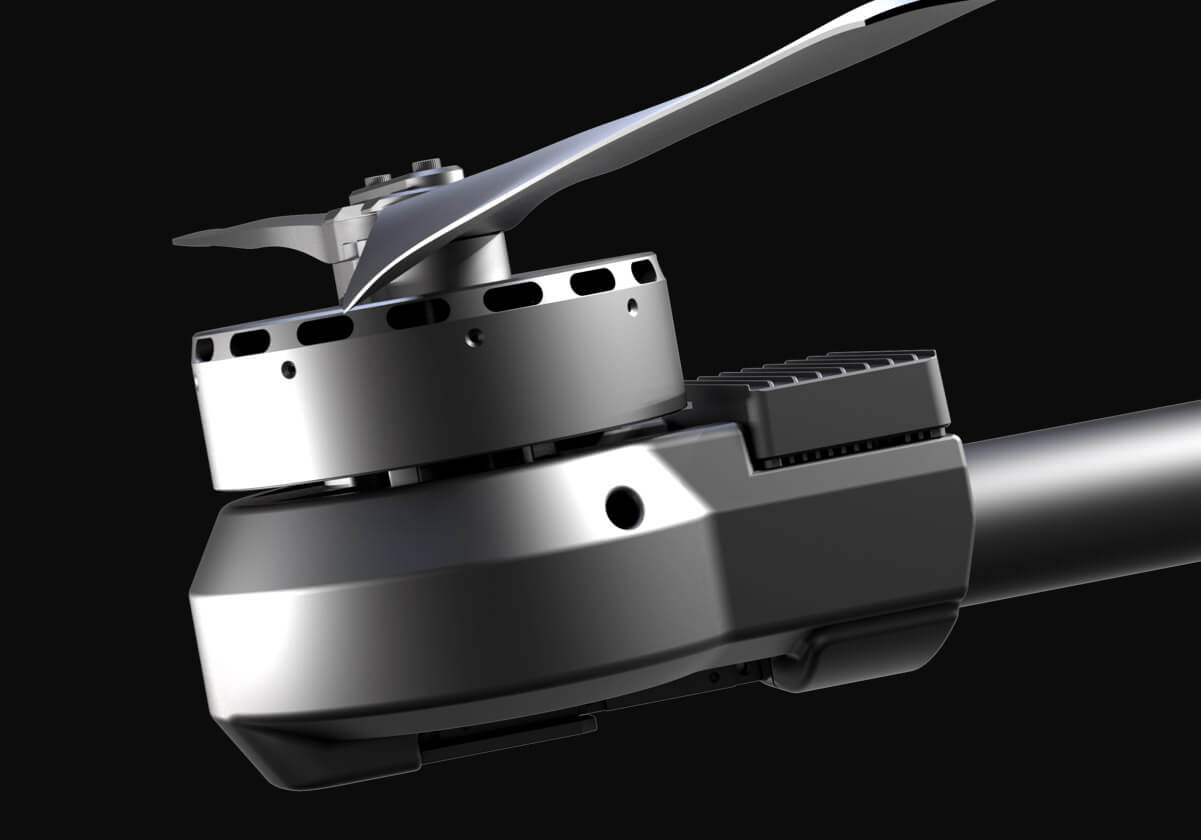

Adopts the F13 power system and is equipped with a FOC dual current sampling electronic control system. Fast response speed. Configuration: 56-inch blades.
Single motor maximum pull force of 57 Kg.

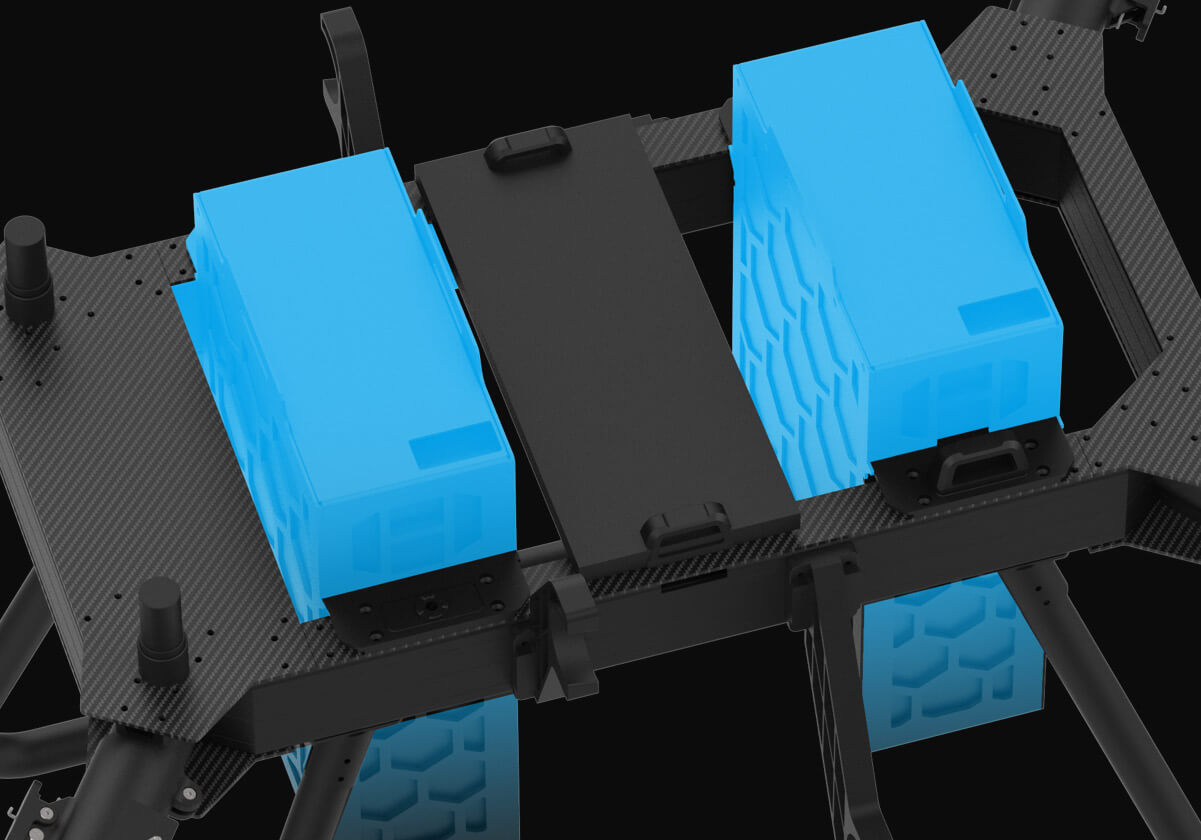

Dual 18S-49000mAh battery modular design, support quick replacement, can work with single battery or dual battery, and increase the operation continuity by 50%.
The airframe hollow structure is completely open for carrying equipment, which can be used to install cargo kits, plant protection pots, and other load tasks.
Heavy Payload, Extended Endurance, Unbound Spatial Operation
Max payload
Max flight time
Max flight speed
Max flying altitude
Max payload
Max flight time
Max flight speed
Max flying altitude

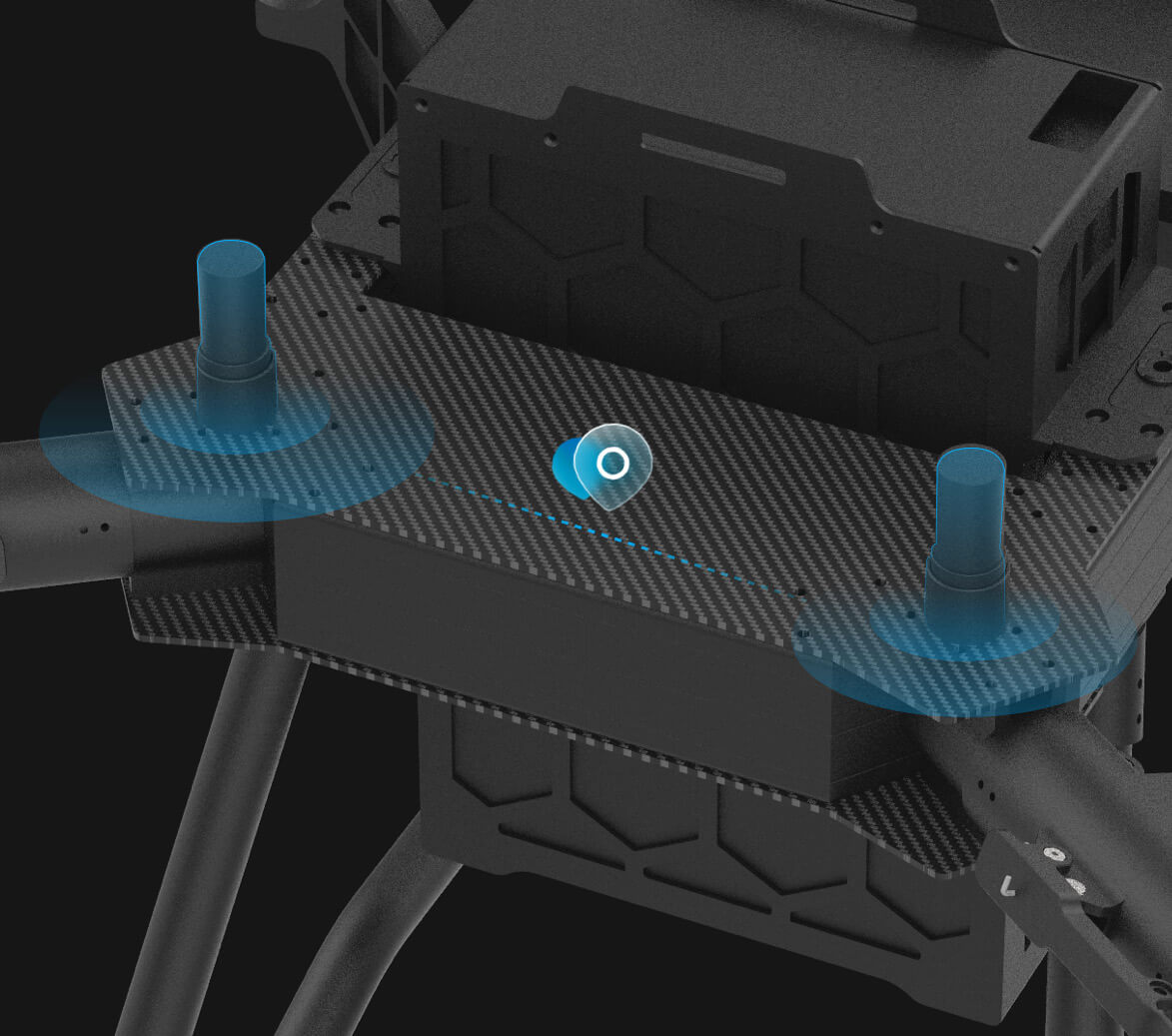

GPS/Beidou dual-mode positioning multi-sensor fusion algorithm, supporting high-precision GPS, RTK. The whole process is autonomous, liberating manpower dependence.
After the route is planned, the route is automatically executed, effectively improving the efficiency of task execution.
When the battery level drops below 15%, communication is interrupted, or the sensor is abnormal, it will automatically trigger a return to home and accurately land to a safe point.
In a complex electromagnetic environment, the RTK horizontal positioning accuracy is ±10 cm and the vertical accuracy is ±20 cm.

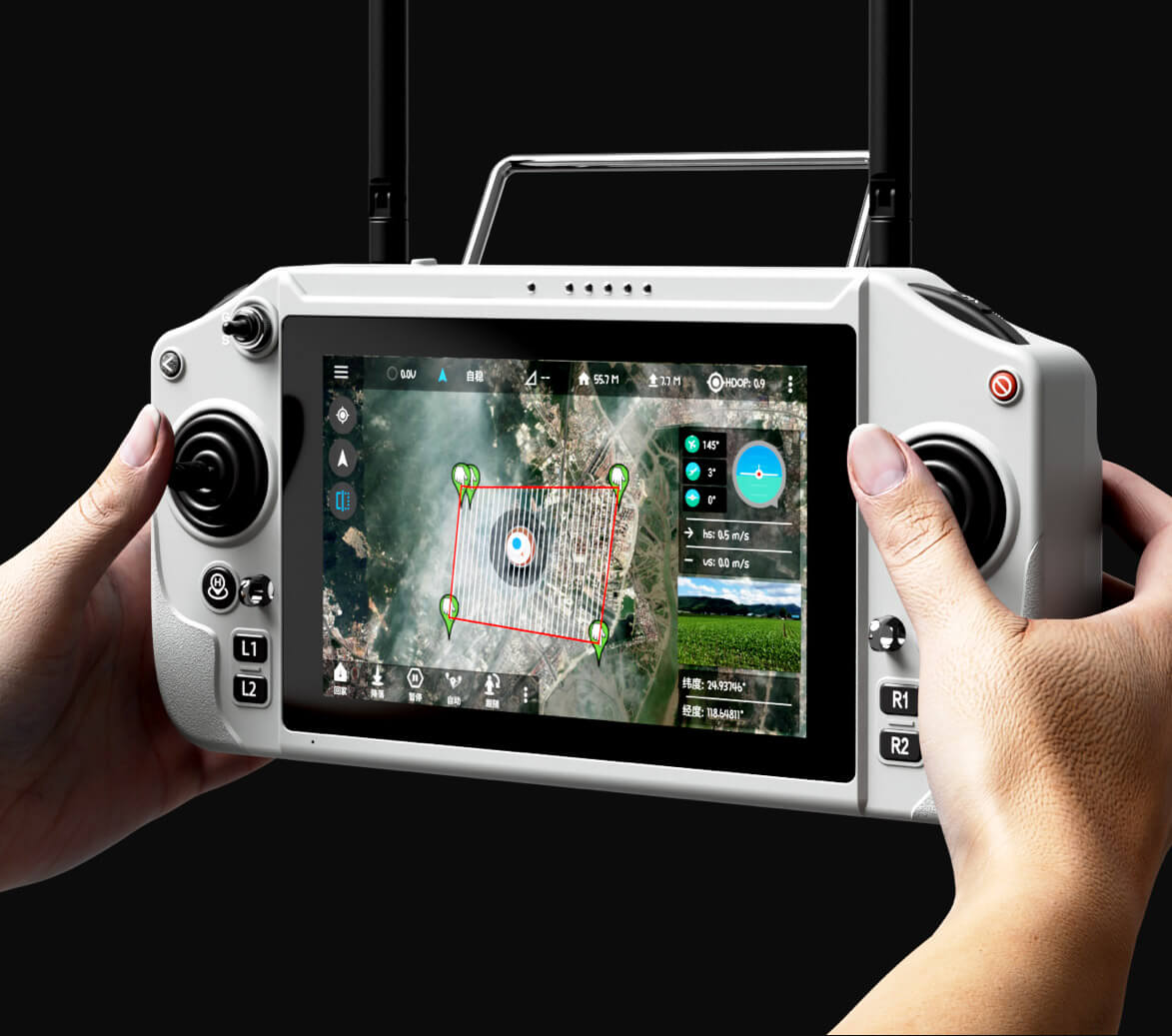

Standard 15km image transmission distance 1080P high-definition picture quality, remote control on the 5.5-inch high-brightness large screen, 1000nit sunlight viewing, real-time superposition of flight parameters, electronic fence warning, battery power and other information, one screen control, efficient decision-making.

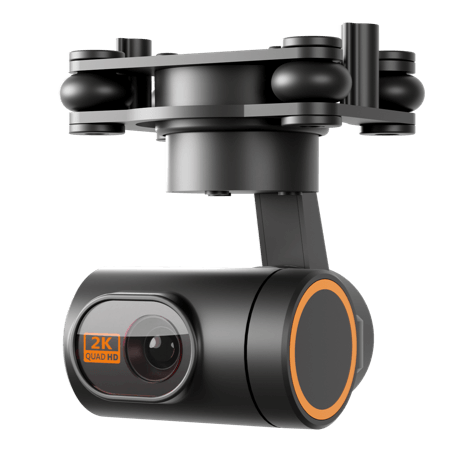

compact quad-sensor camera

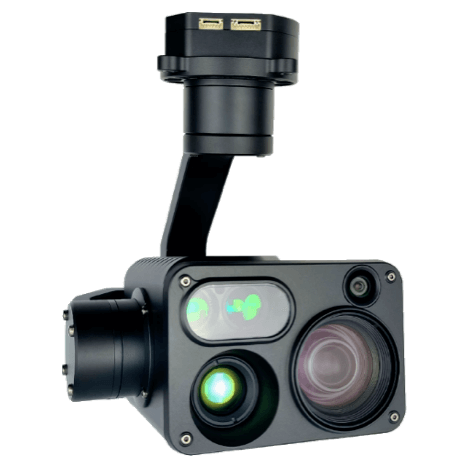

30x single-sensor/AI recognition tracking camera

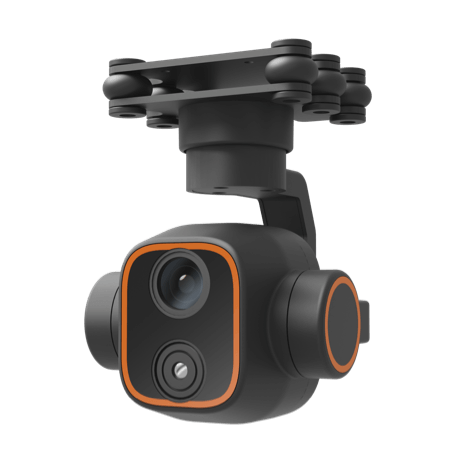

mini dual-sensor camera
