Route Planning: Preset multiple waypoints through the ground station to automatically complete the cruise mission.
The fuselage has excellent stability, high positioning accuracy, quick release design, rainproof whole body, and agile operation. The drone is equipped with a high-performance power package and an FPV gimbal camera as standard. It is suitable for short-haul high-frequency transportation.
Quick Release
Max Payload
Wind Resistance
Autonomous take-off and landing
15 km stable image transmission
FPV gimbal camera as standard
Equipment hangers support customization

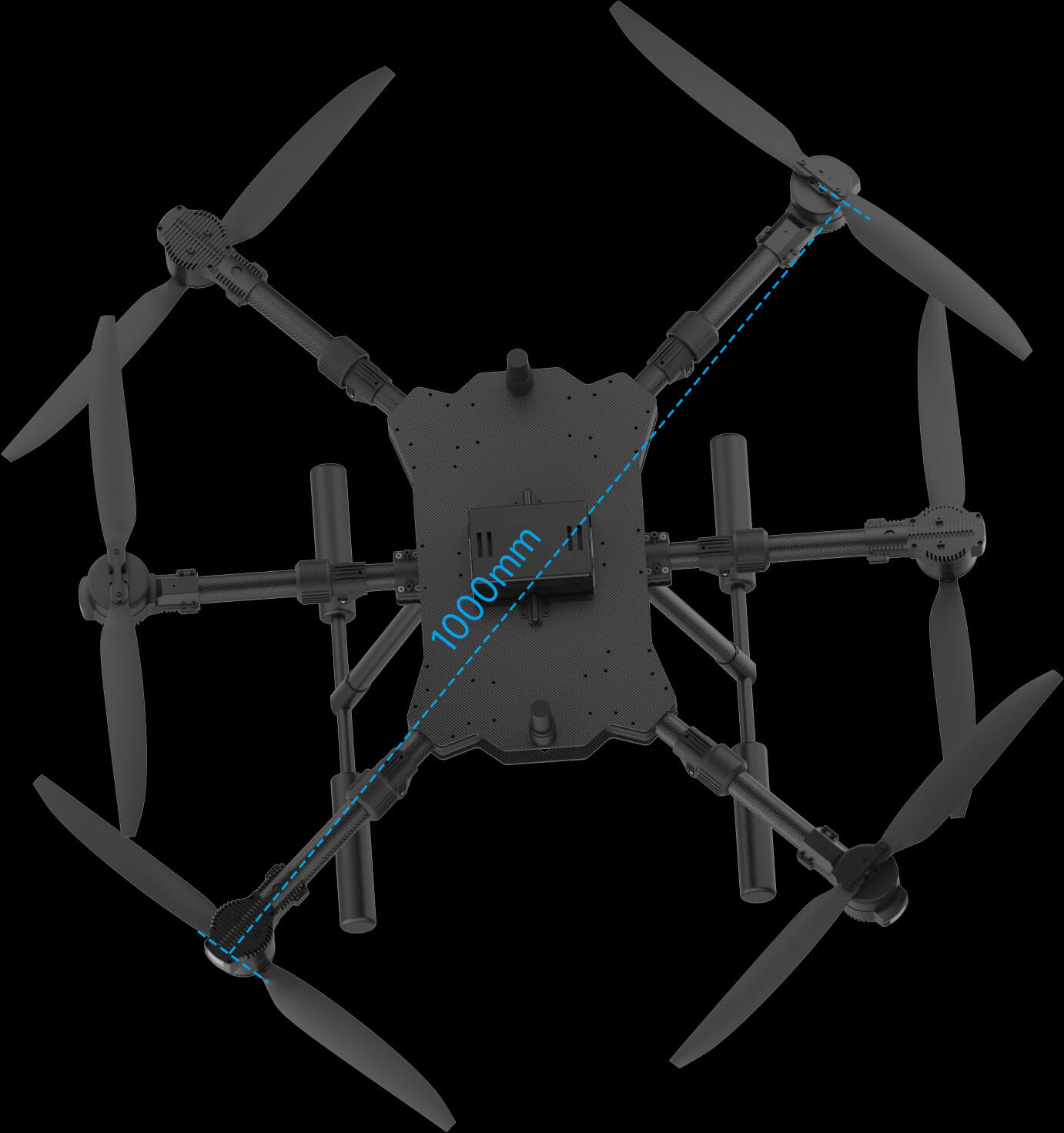

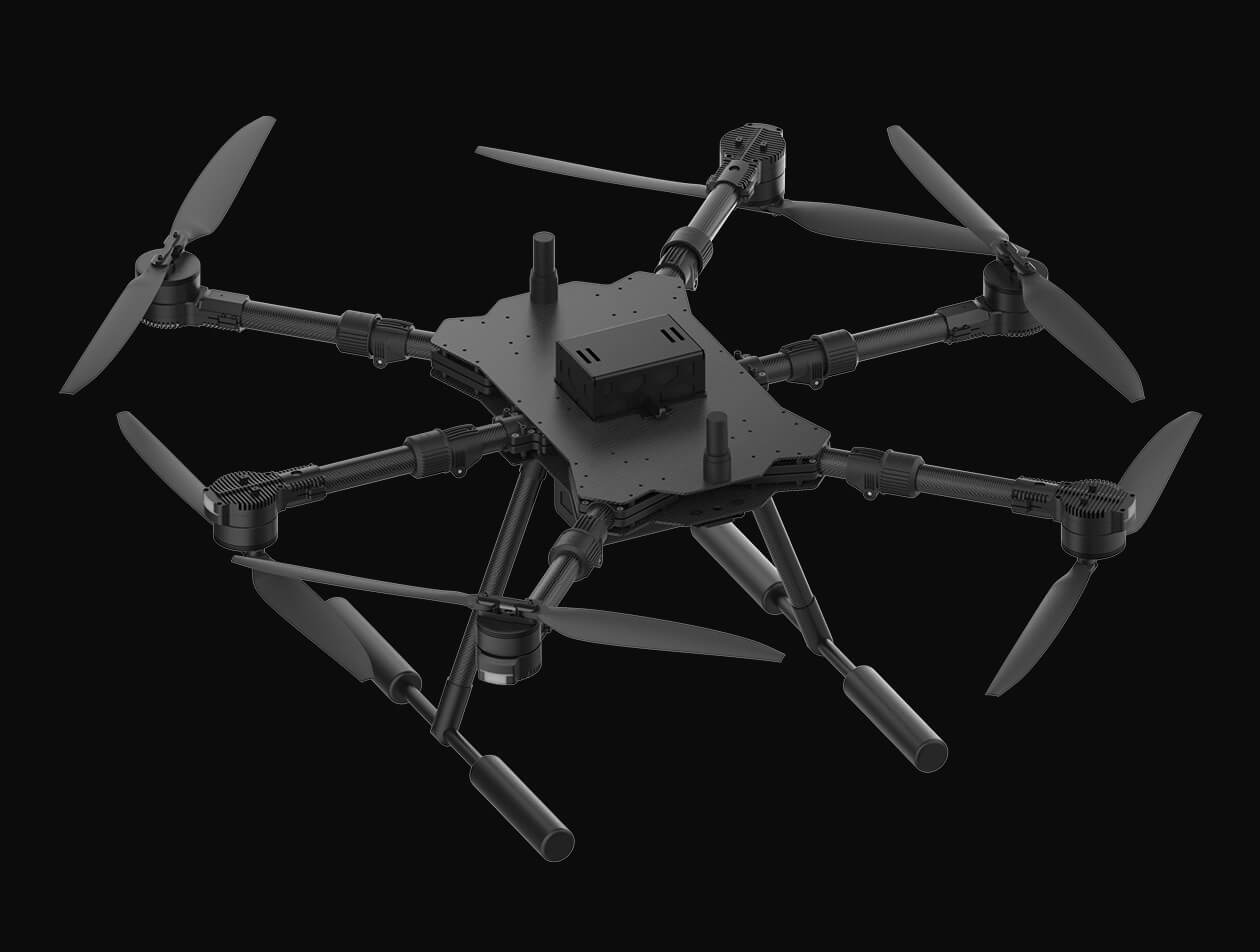

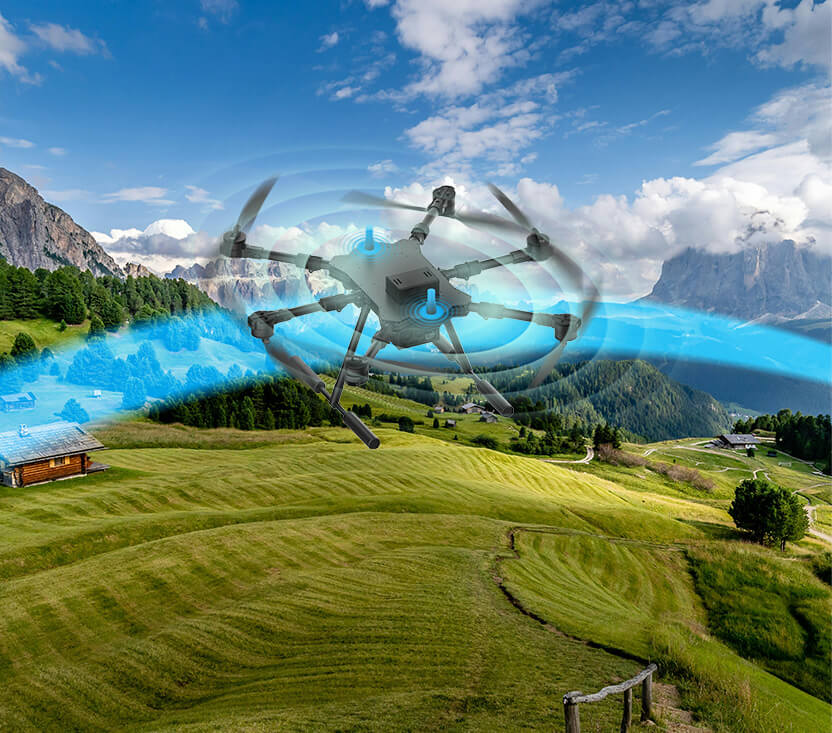

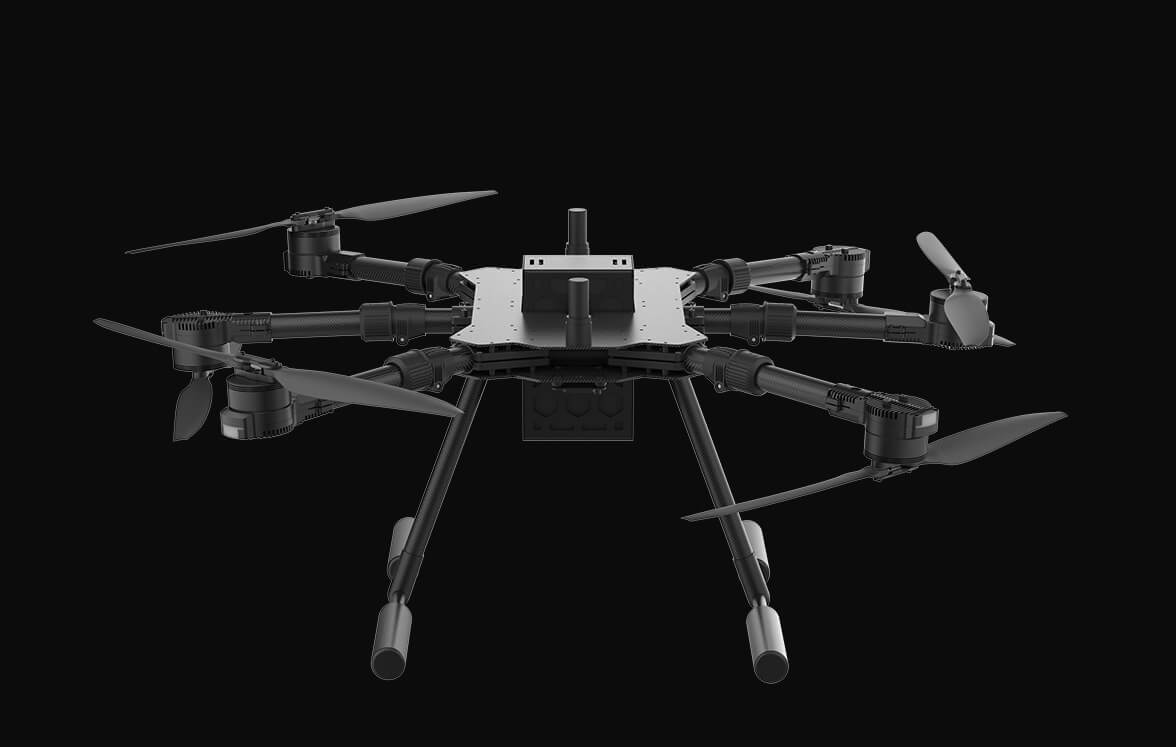

The fuselage is made of ultra-light carbon fiber, and the whole machine is welded to take into account both light weight and high strength. The six-rotor power layout, 1000mm wheelbase design brings higher redundancy and stability, and the wind resistance level reaches 6, which can operate stably in various environments.

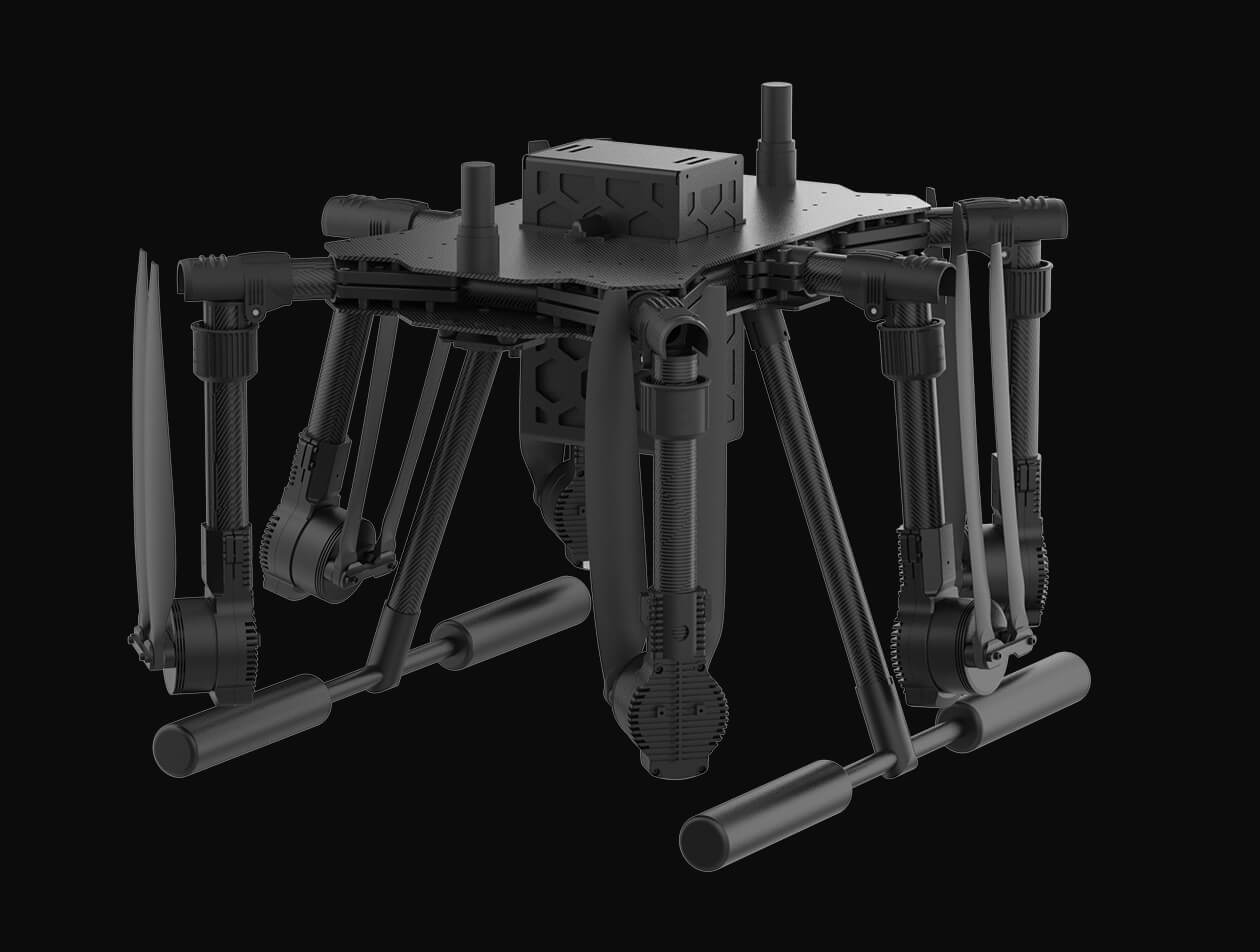

The arm is equipped with a self-locking quick-release joint, allowing it to be fully extended or folded within three minutes. After folding, its volume is reduced by 60%. This makes it convenient for transportation and quick deployment, meeting the needs of mobile operations in various scenarios.
Unfolded Size:930×1060×460mm
Folded Size:560×450×460mm

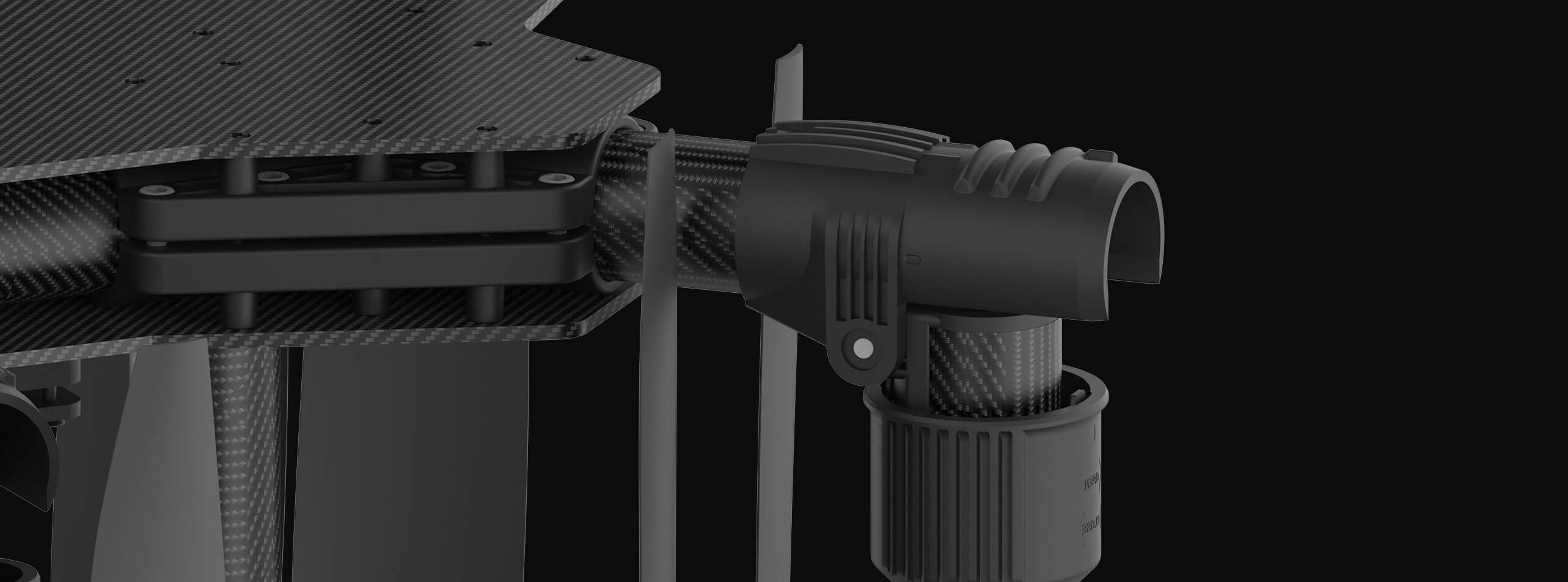

The arm adopts a self-locking quick-release joint.

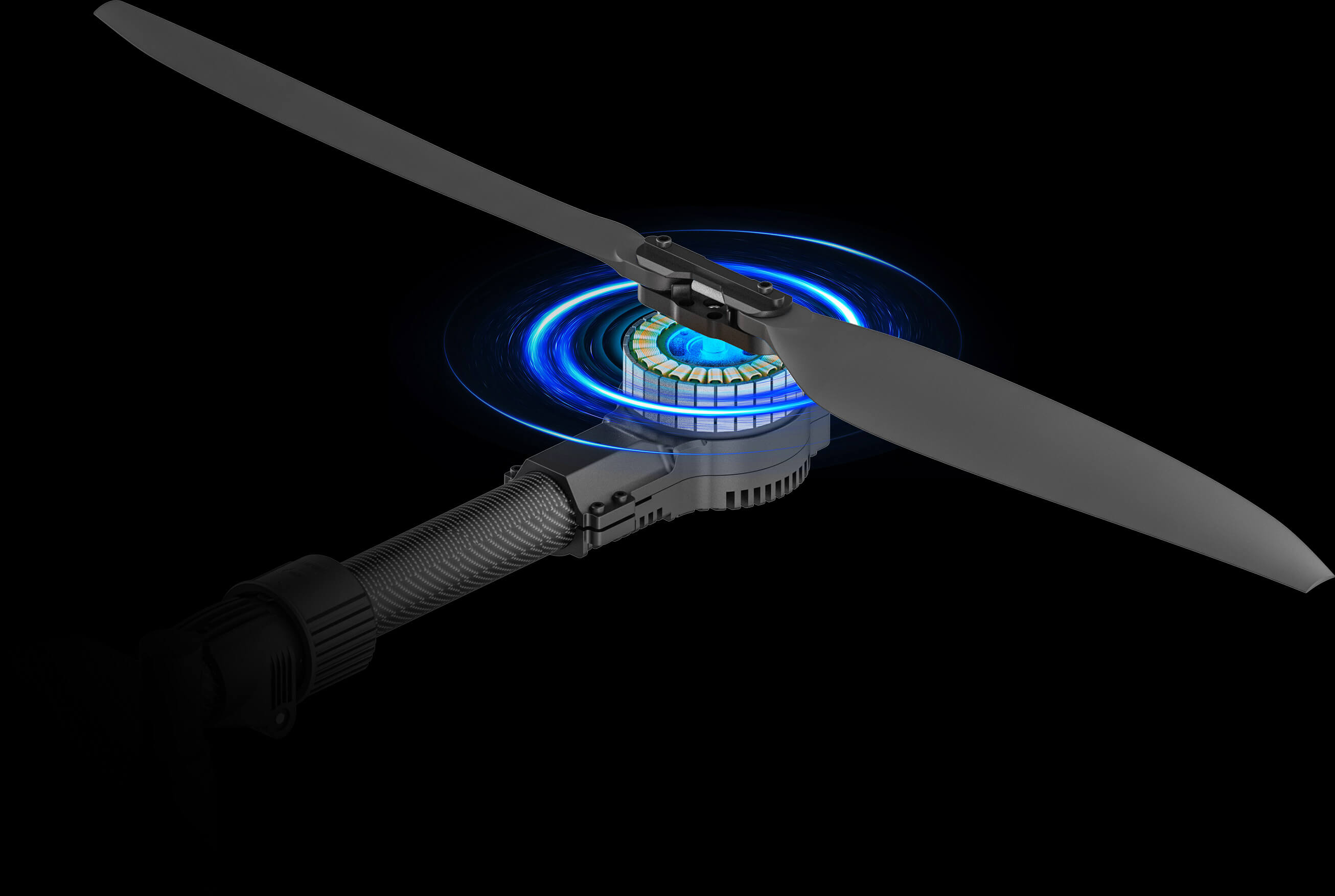

Equipped with F6 power system, using dual redundant magnetic circuit design, the response speed is up to 1050-1950us. With 24×80 custom carbon fiber propellers, the maximum pulling force can reach 12Kg.

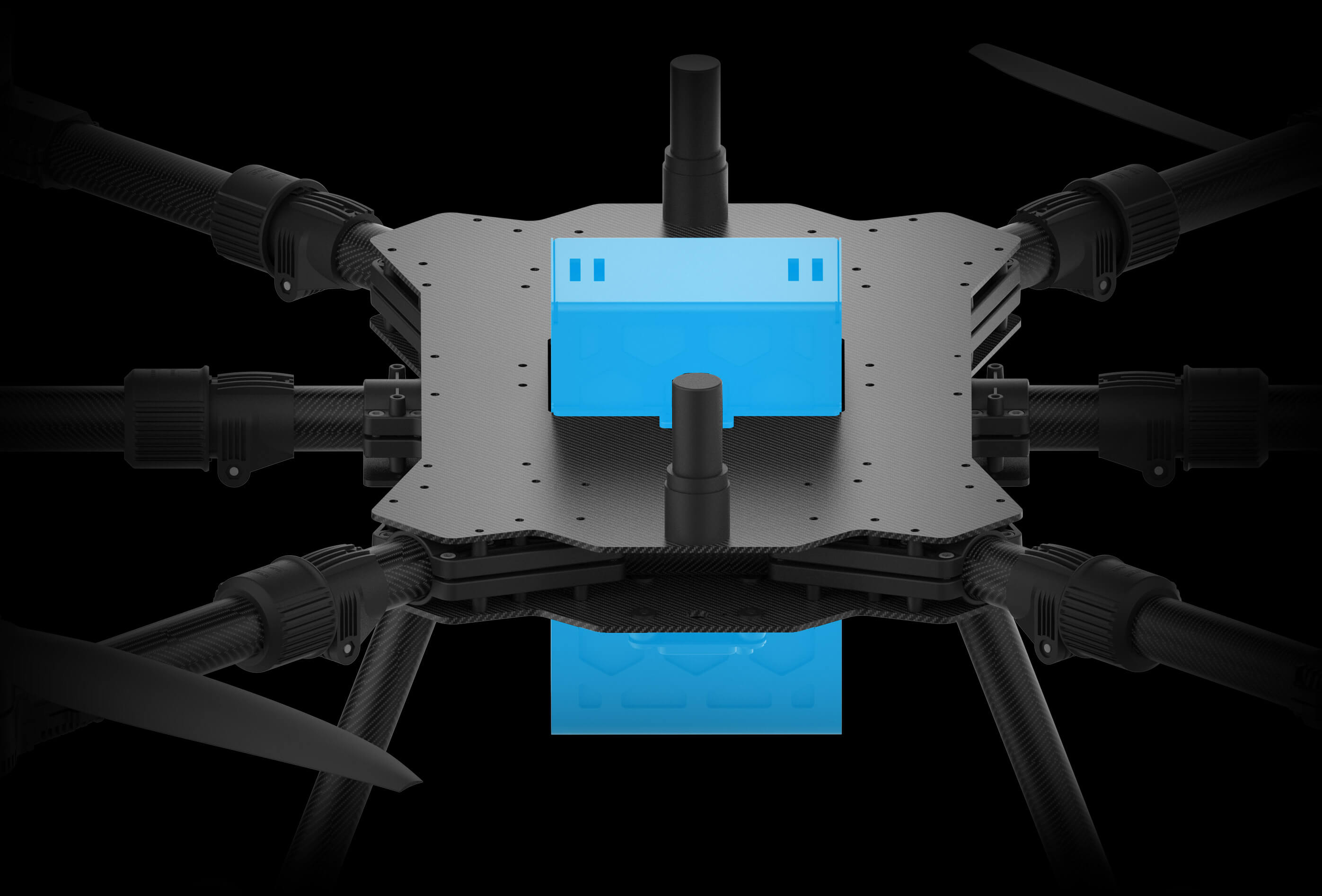

The 12S 22000mAh modular battery configuration supports quick replacement, one-plug and plug-in, and full power restart to ensure operation continuity.

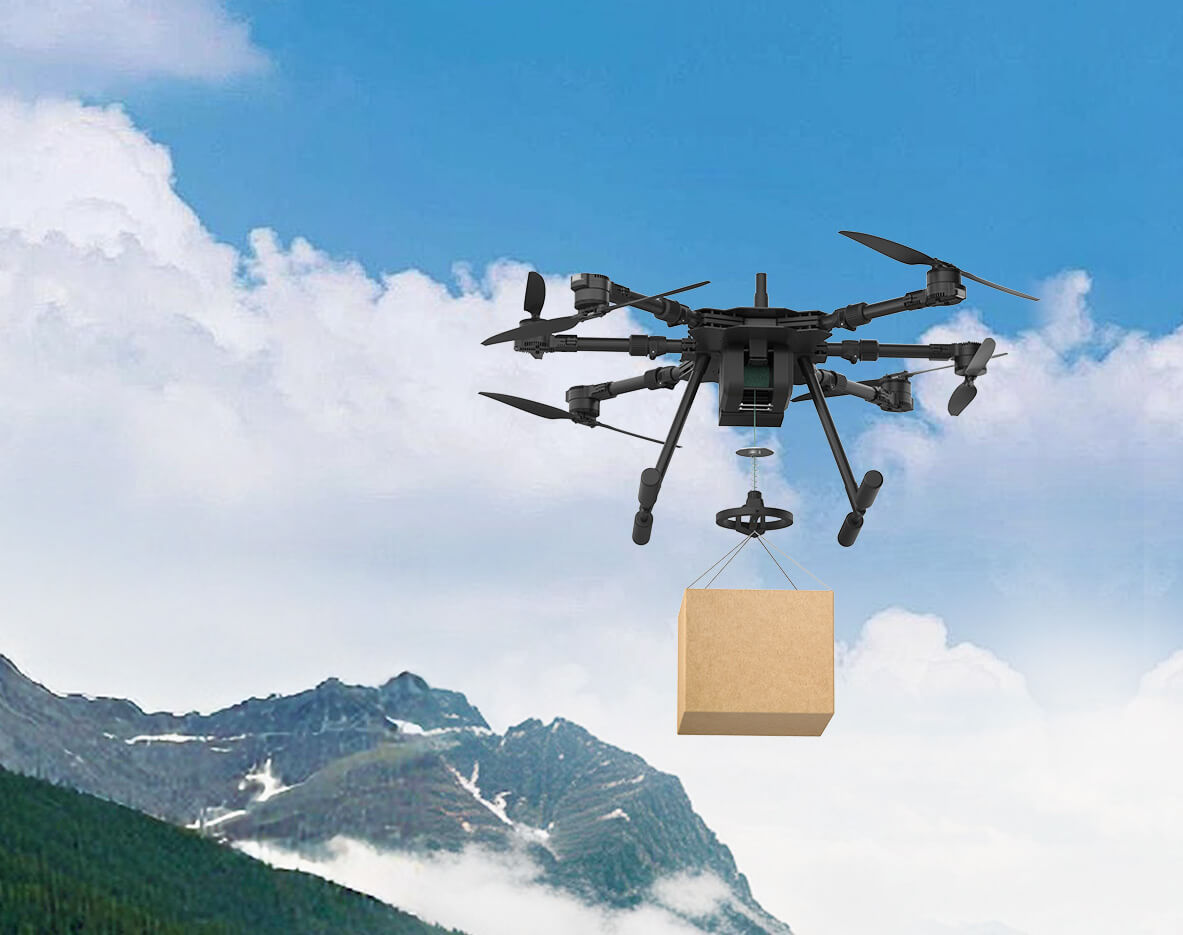

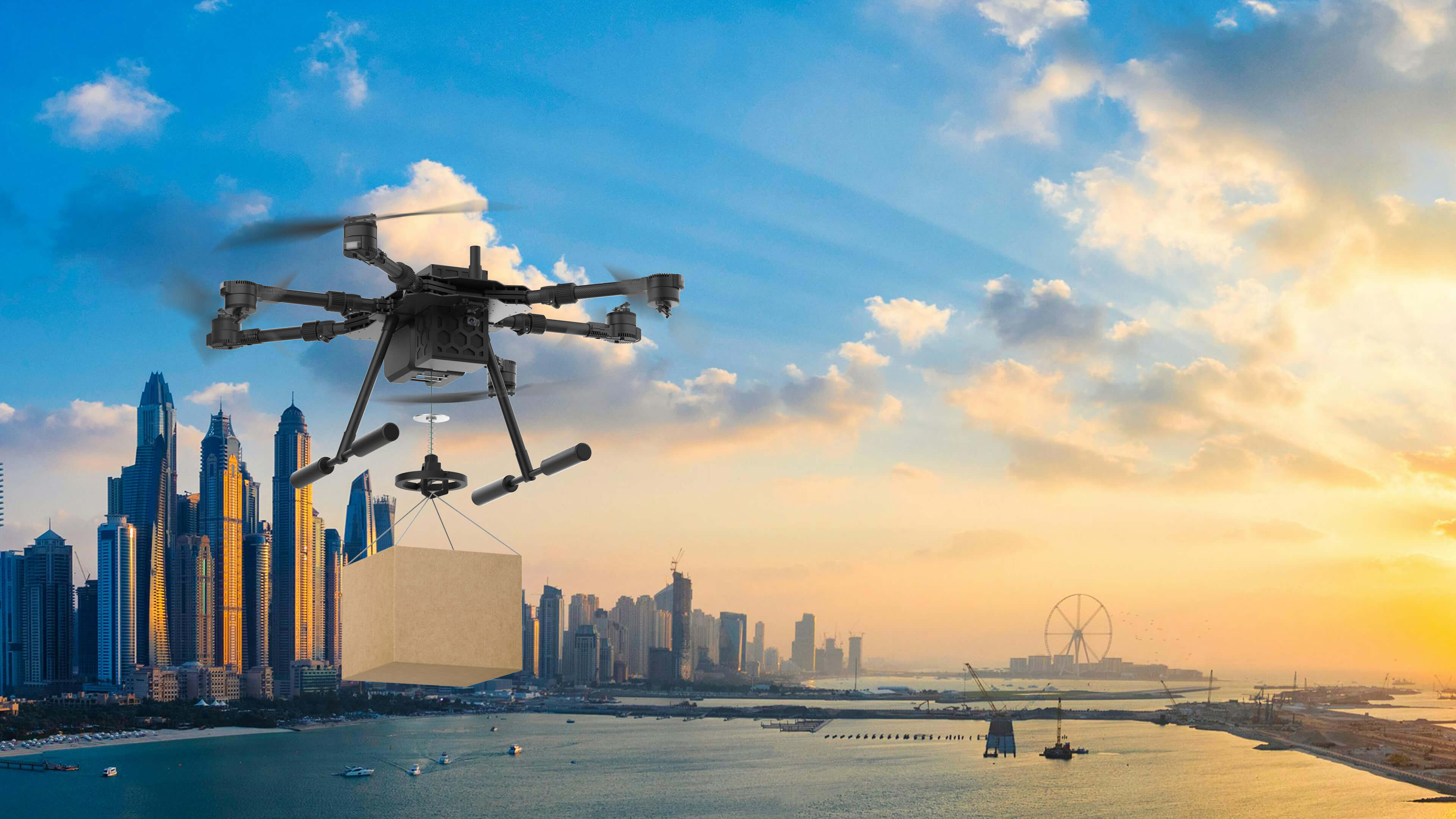

Heavy-Lift Endurance: Deliver Precision Anywhere, Any Terrain.
Max Payload: 15kg
Max Flight Speed:15m/s
Flight Time:45min
Flying without load
Max Flight Speed:15m/s
Flight Time:45min
Working Altitude:5000m
Operating Temperature:-20℃~+60℃

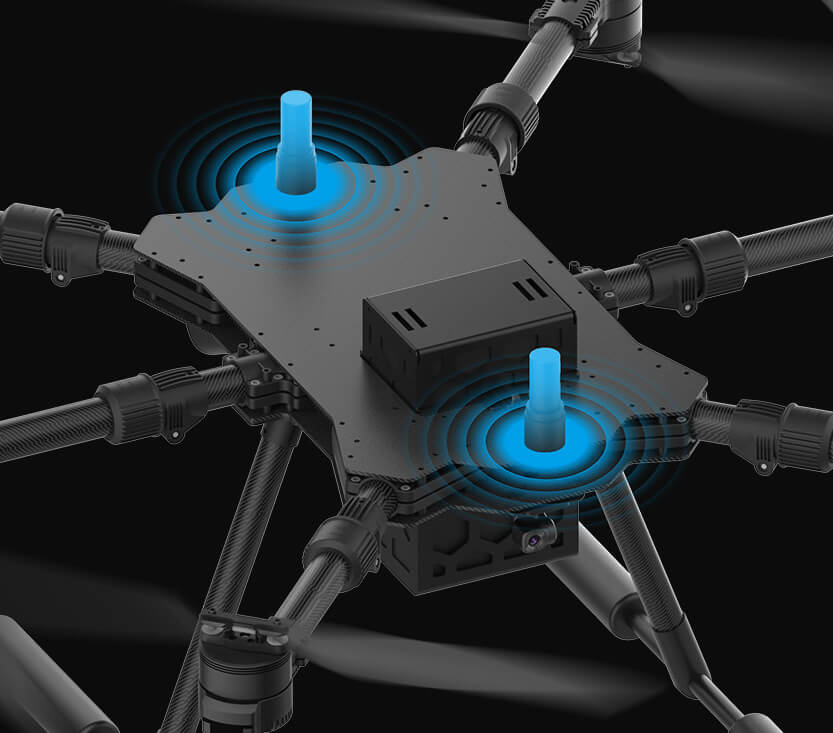

GPS / Beidou dual-mode positioning Multi-sensor fusion supports full-process automated operations.
Route Planning: Preset multiple waypoints through the ground station to automatically complete the cruise mission.
Auto Return: Automatically triggers RTH when the battery is low and the signal is interrupted.
Precise Positioning: In complex environments, the horizontal positioning accuracy of RTK ± 10cm, and the vertical accuracy ± 20cm.

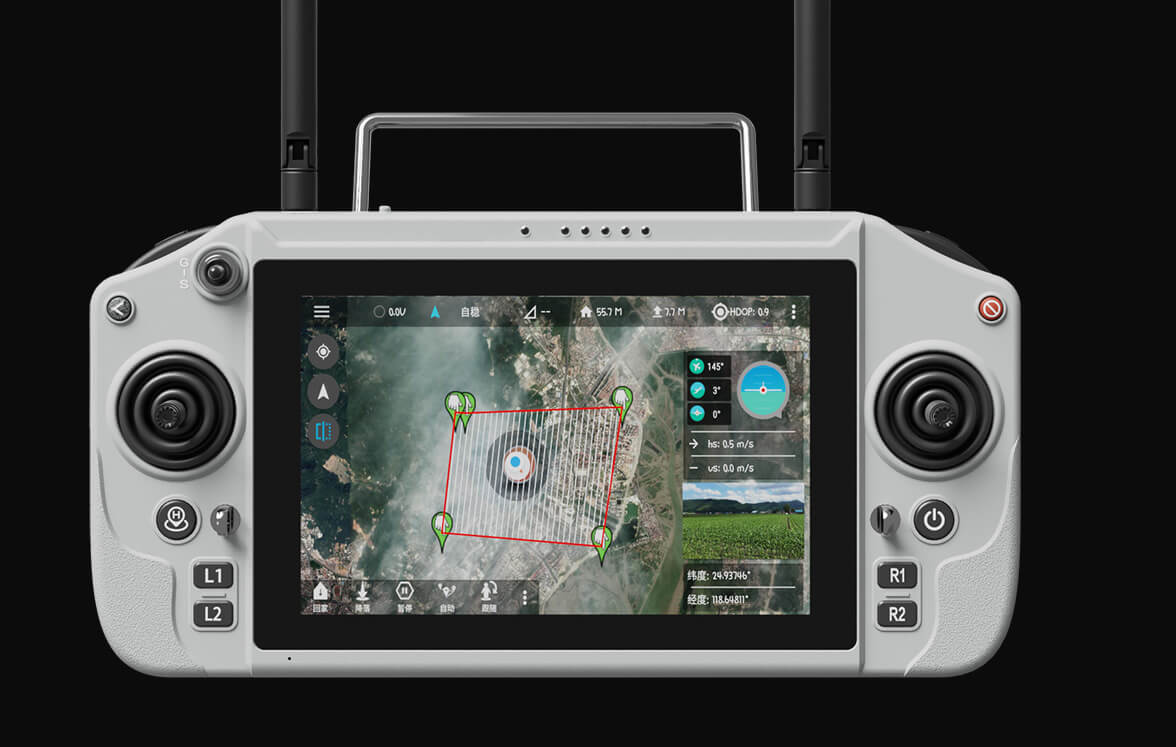

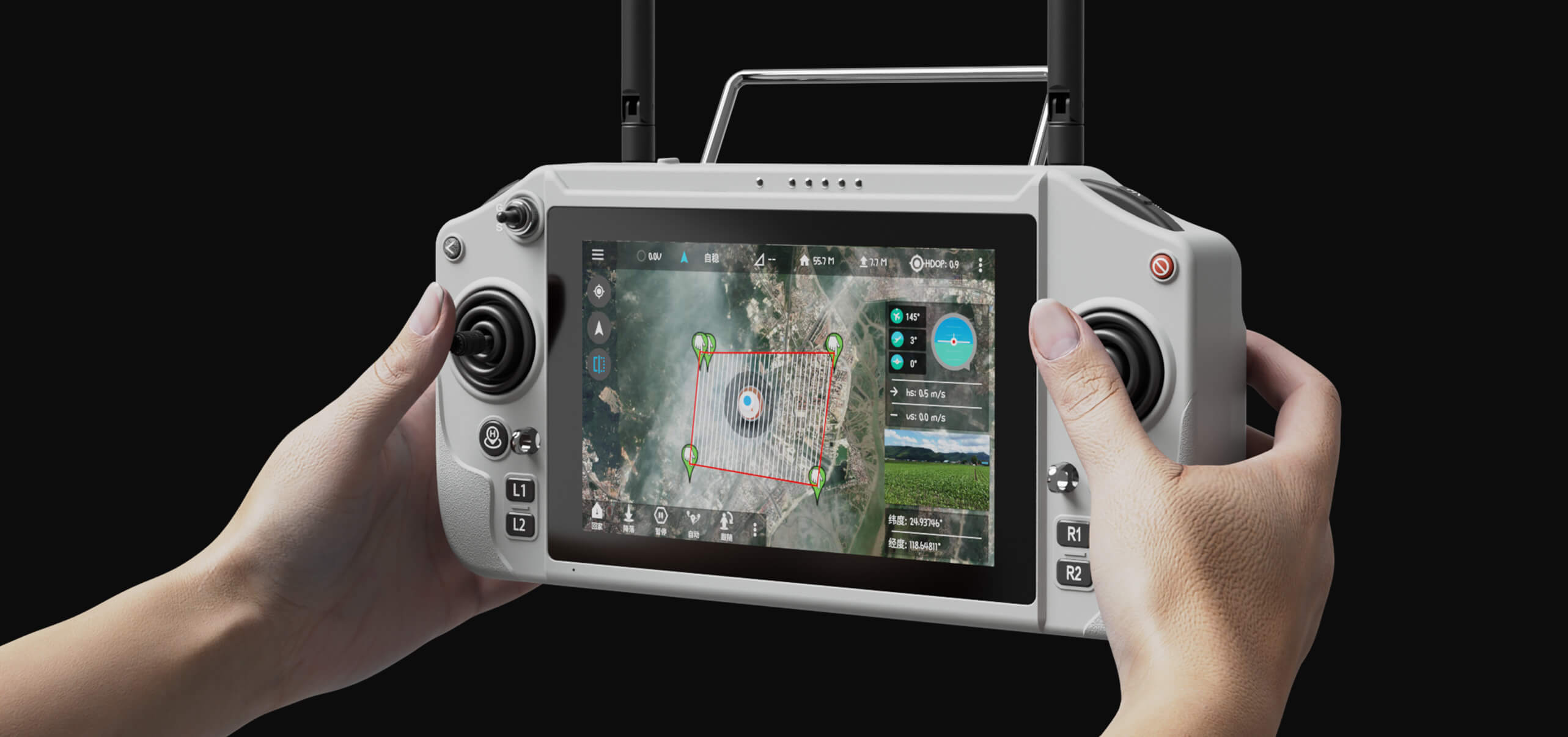

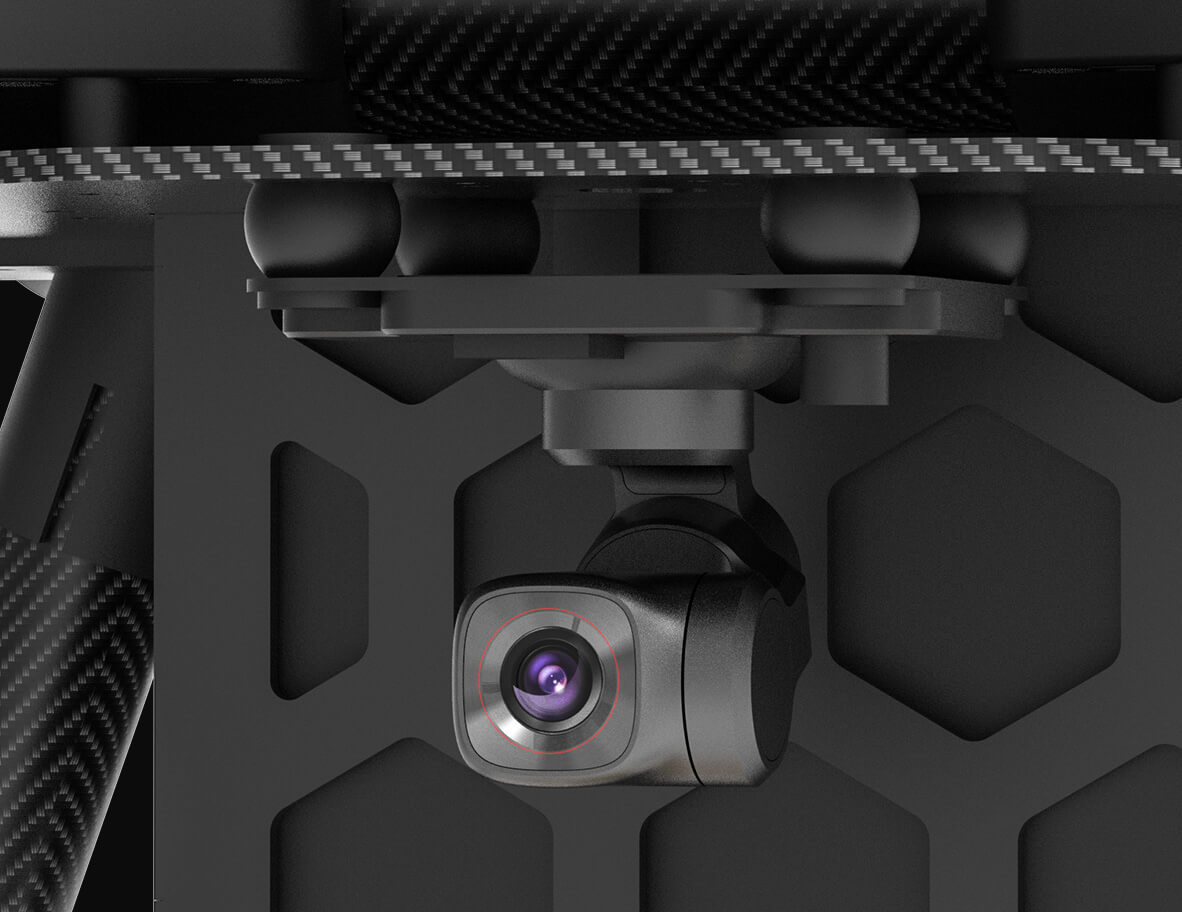

Standard equipped with a 5-inch screen remote controller, a transmission distance of 15 km, and equipped with a 1080P high-definition FPV gimbal camera, which can transmit flight images and parameter information in real time, allowing for an integrated control on one screen for convenient operation.
The equipment hanger supports rapid replacement and can be flexibly applied to diversified scenarios such as logistics and distribution, emergency material delivery, etc.

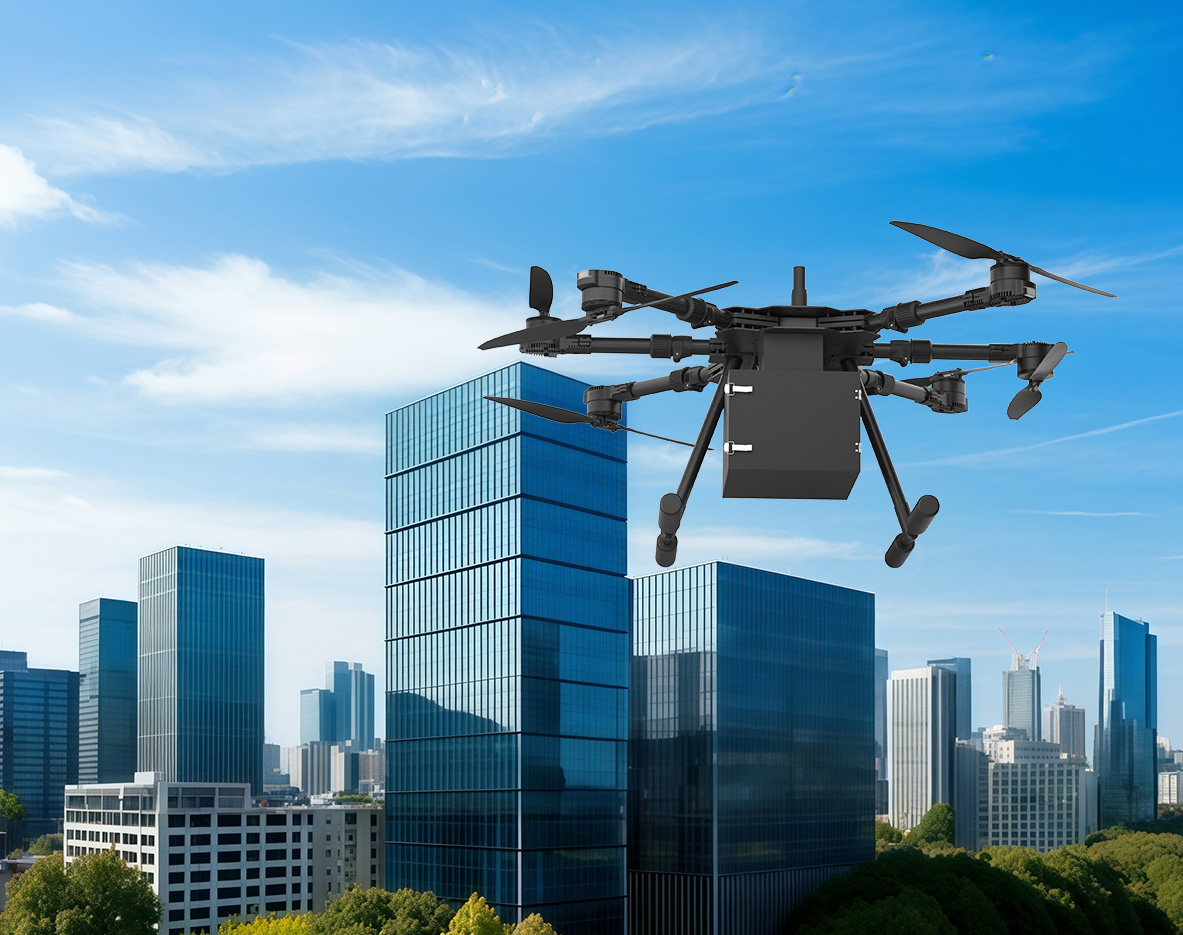

Cargo Box

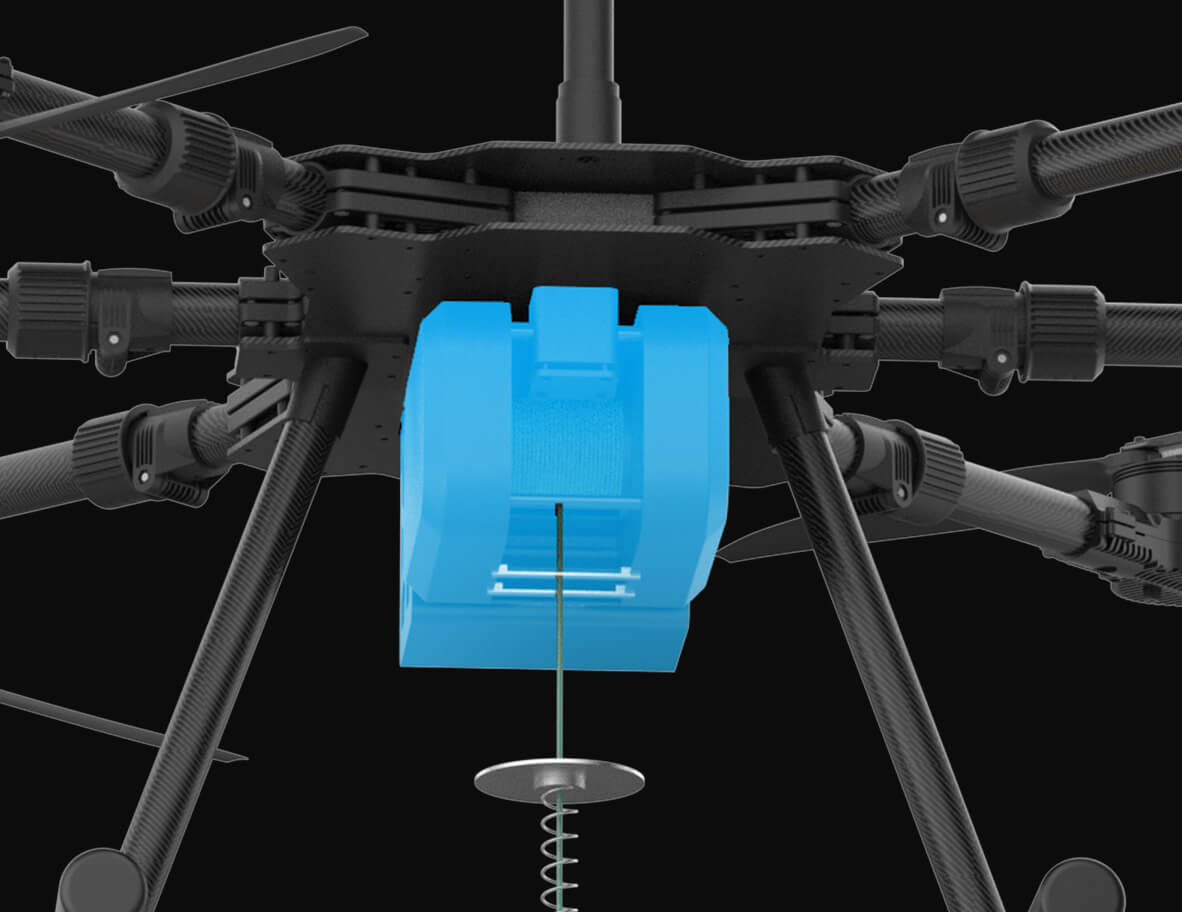

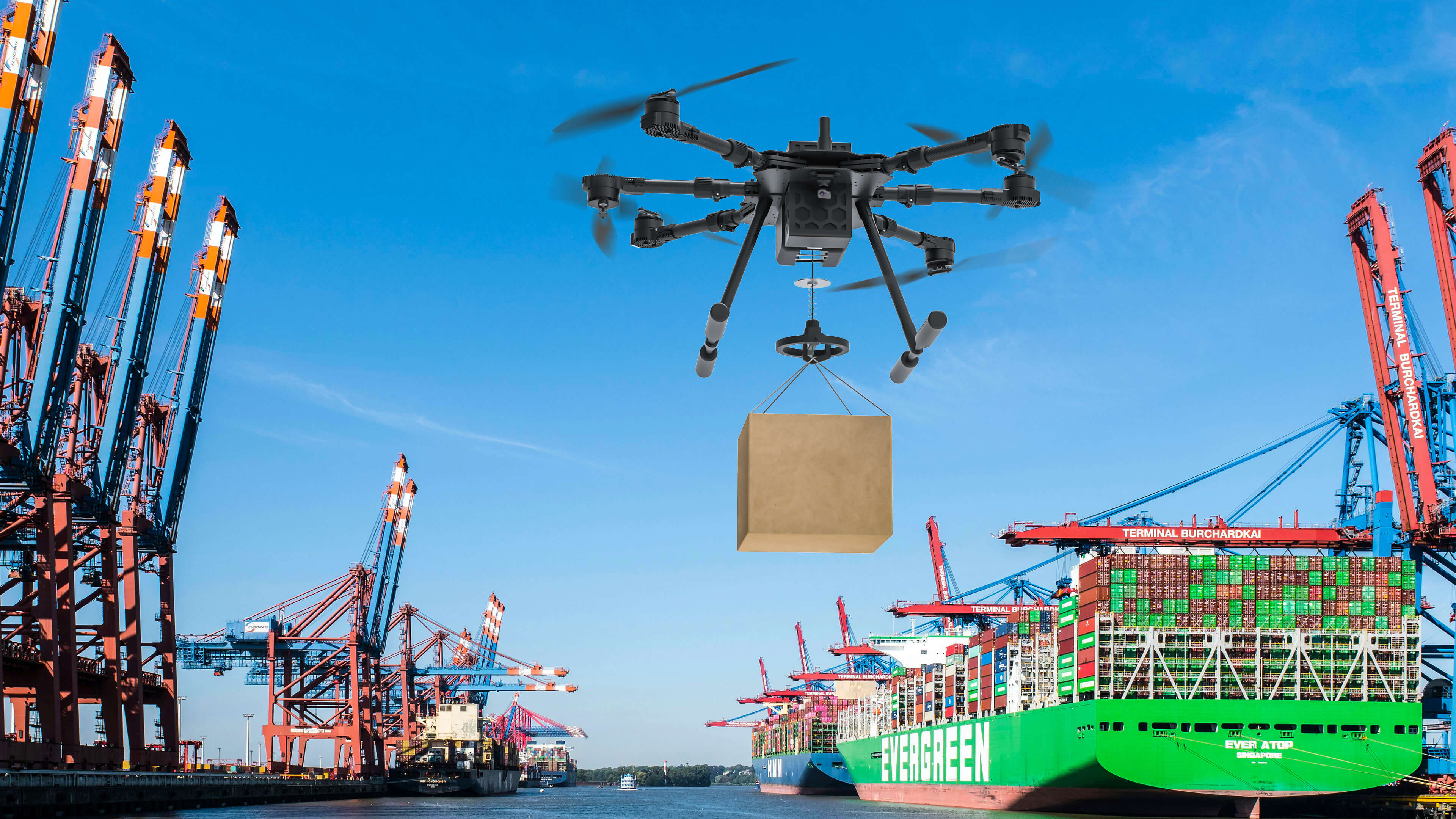

Lifting

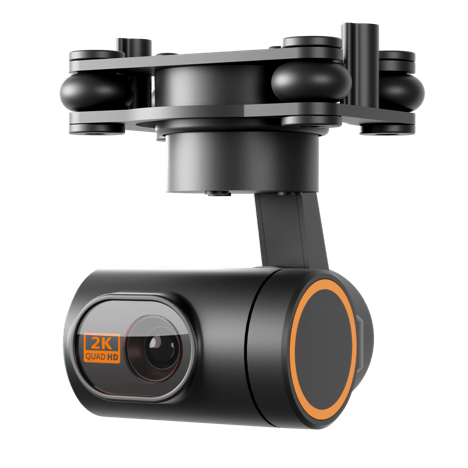

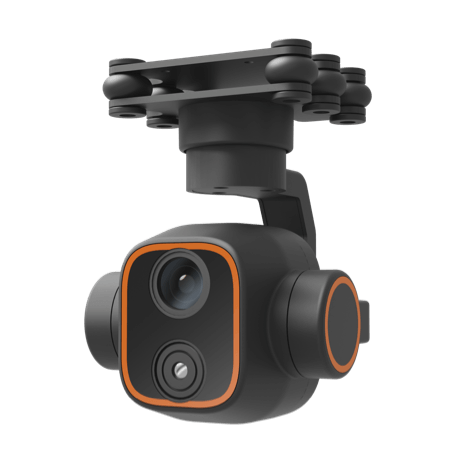

compact quad-sensor gimbal camera

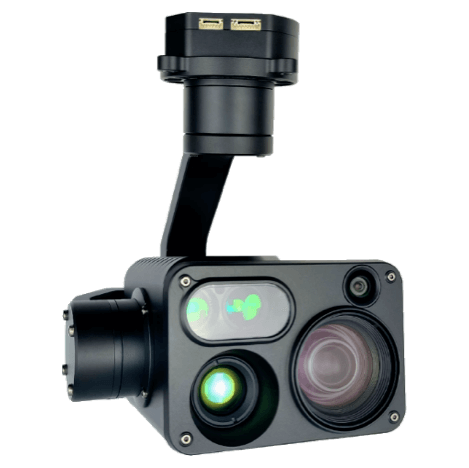

30x single-sensor丨AI recognition & tracking gimbal camera
Mini dual-sensor camera
