4-Hour Flight, Limitless Missions

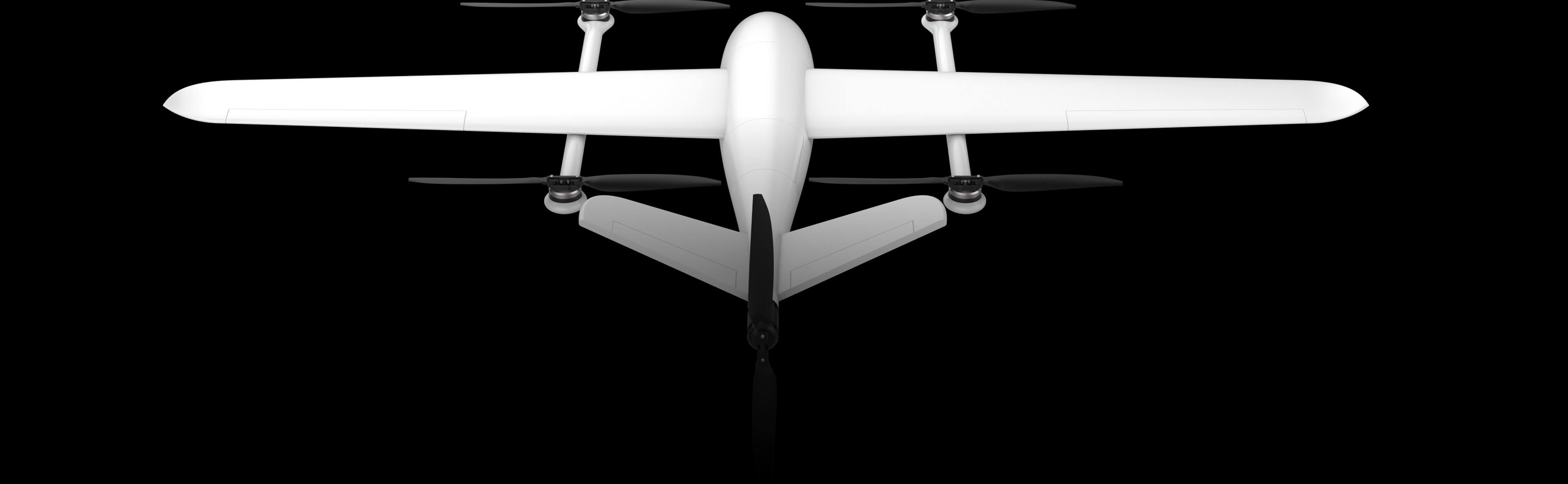

FY-VT04 VTOL Drone

FY-VT04 is a vertical take-off and landing fixed-wing UAV built by the Feiyu team, and the fuselage is made of aviation composite materials to ensure the robustness and safety of the aircraft; The aircraft has the maneuverability and vertical take-off and landing capabilities of a multi-rotor and the long-range advantages of a fixed wing, and can perform a variety of tasks, such as terrain mapping, reconnaissance, power line patrol, search, data collection, etc.

The fuselage has excellent stability, high positioning accuracy, quick release design, rainproof whole body, and agile operation.

  • 3KG

    Max Payload*

  • 220Min

    Max Endurance*

  • Level 6

    Wind Resistance*

  • 4800m

    Working Altitude*

Vertical Take-off & Landing

Quick Disassembly

Route Planning

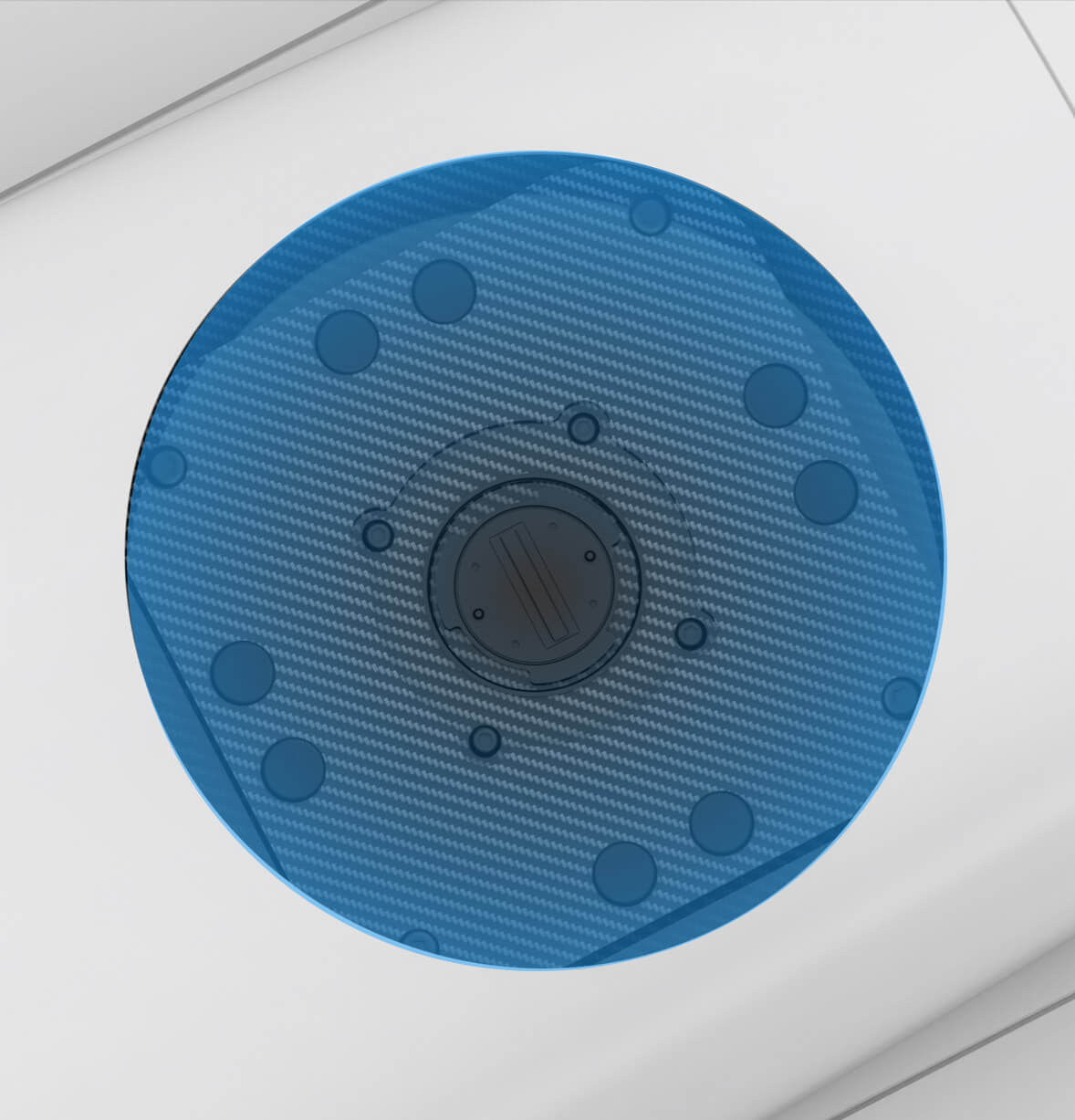

Pod Quick Release

Intelligent Security Protection

Pointing Flights

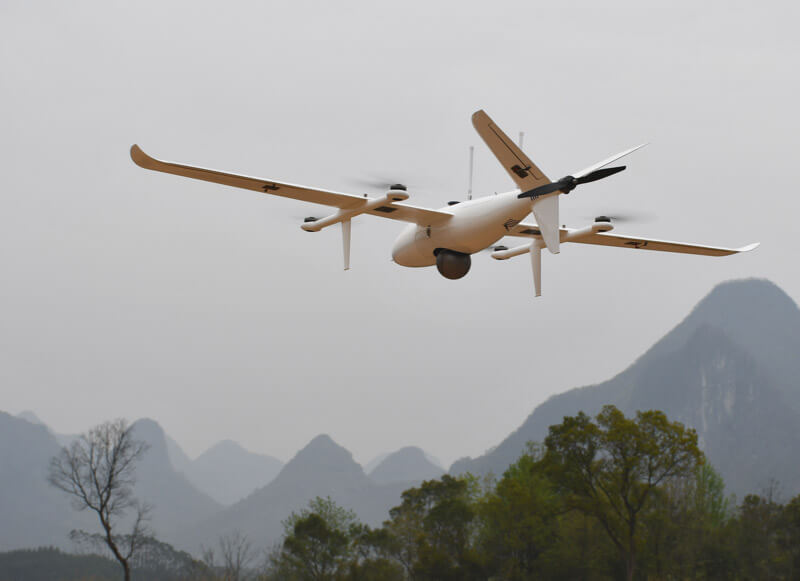

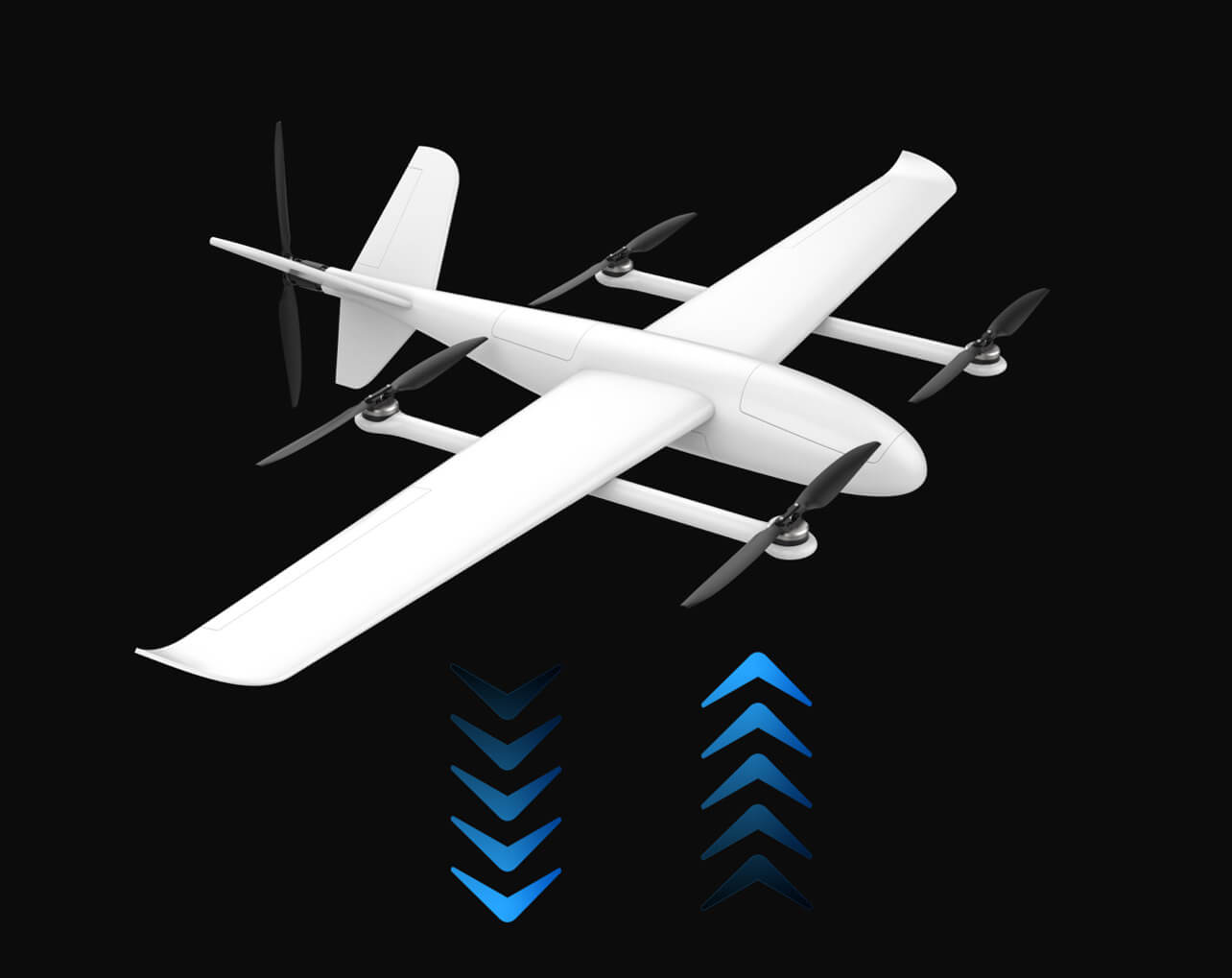

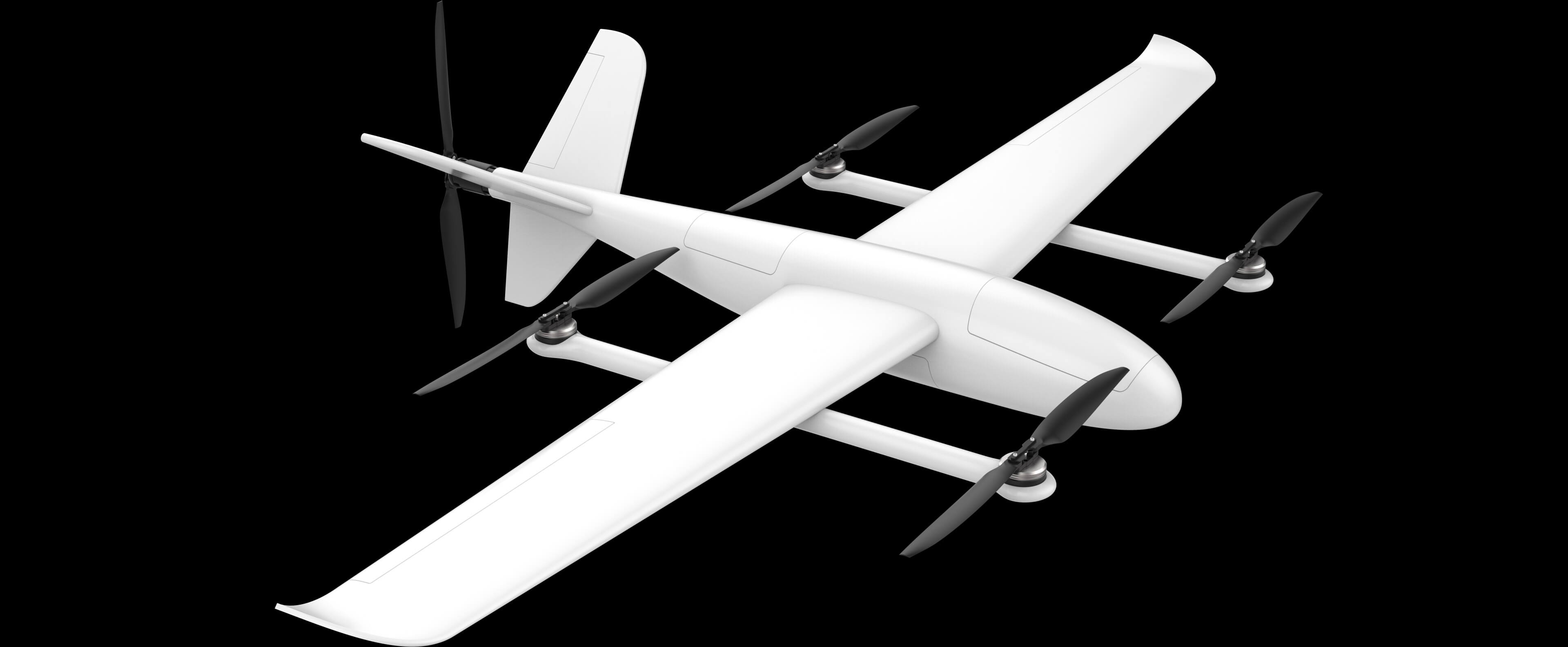

Vertical take-off and landing, all-terrain sortie.

Adopting the power matrix layout of 4 1, it does not need a runway, takes off and lands vertically in complex environments, gets rid of the dependence of traditional fixed-wing on take-off and landing sites, and can fly anywhere, flexible and maneuverable.

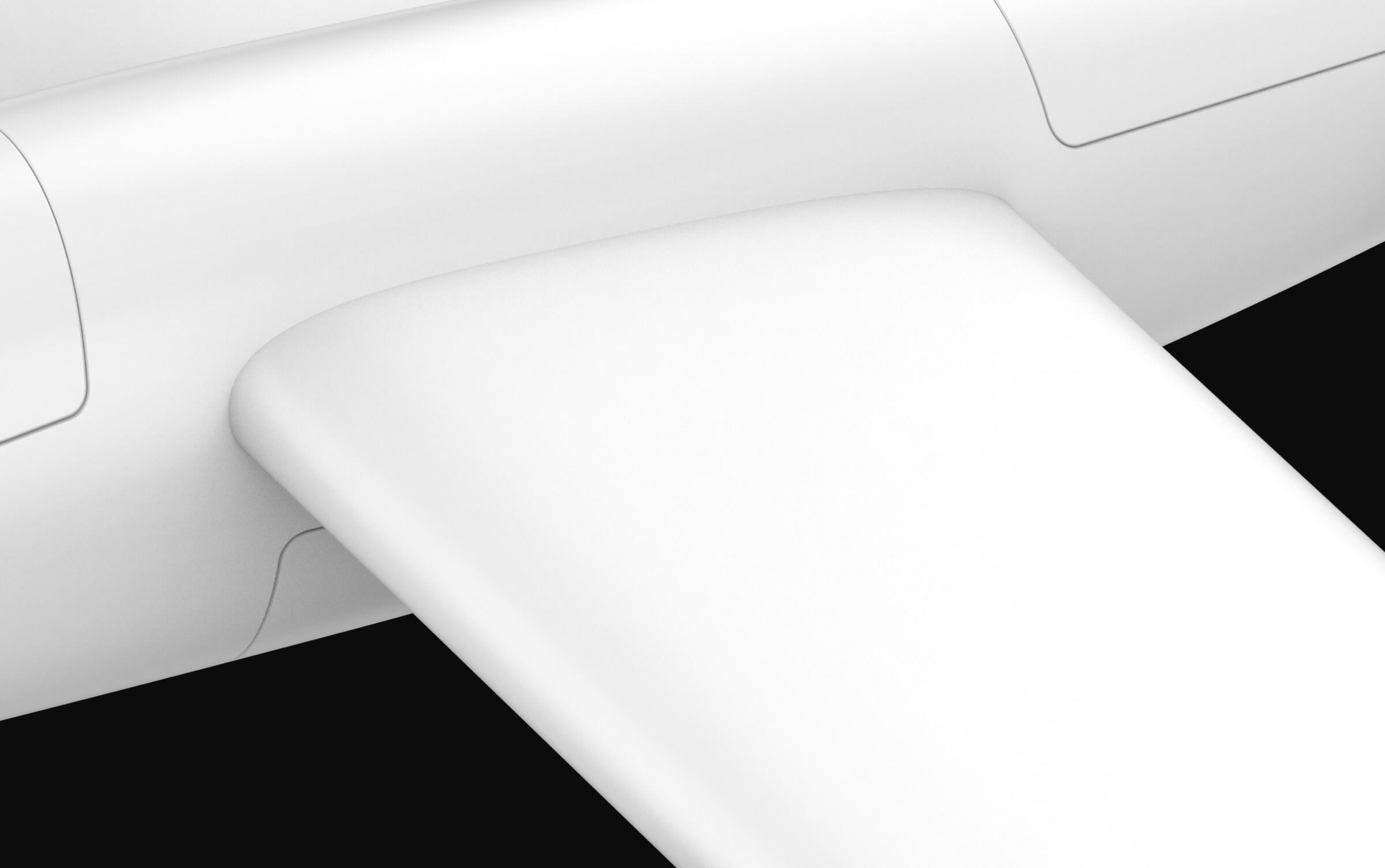

Aviation-grade light and stable fuselage.

The fuselage is made of aviation-grade composite materials, which is light in weight, strong in strength and strong in drop resistance. It can withstand strong winds of level 6 and a wide temperature range of -20°C to 50°C.

Maximum working altitude: 4800m; Wind resistance (headwind) > level 6

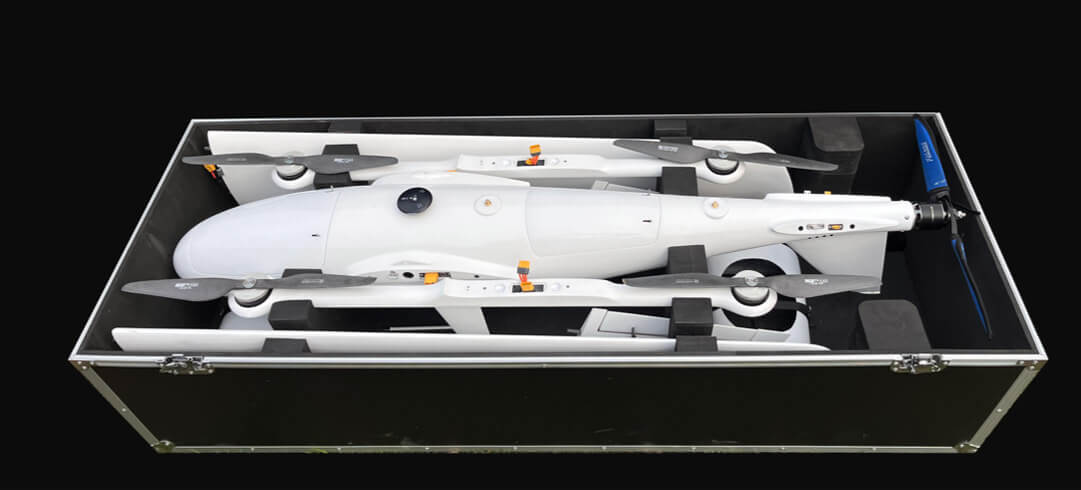

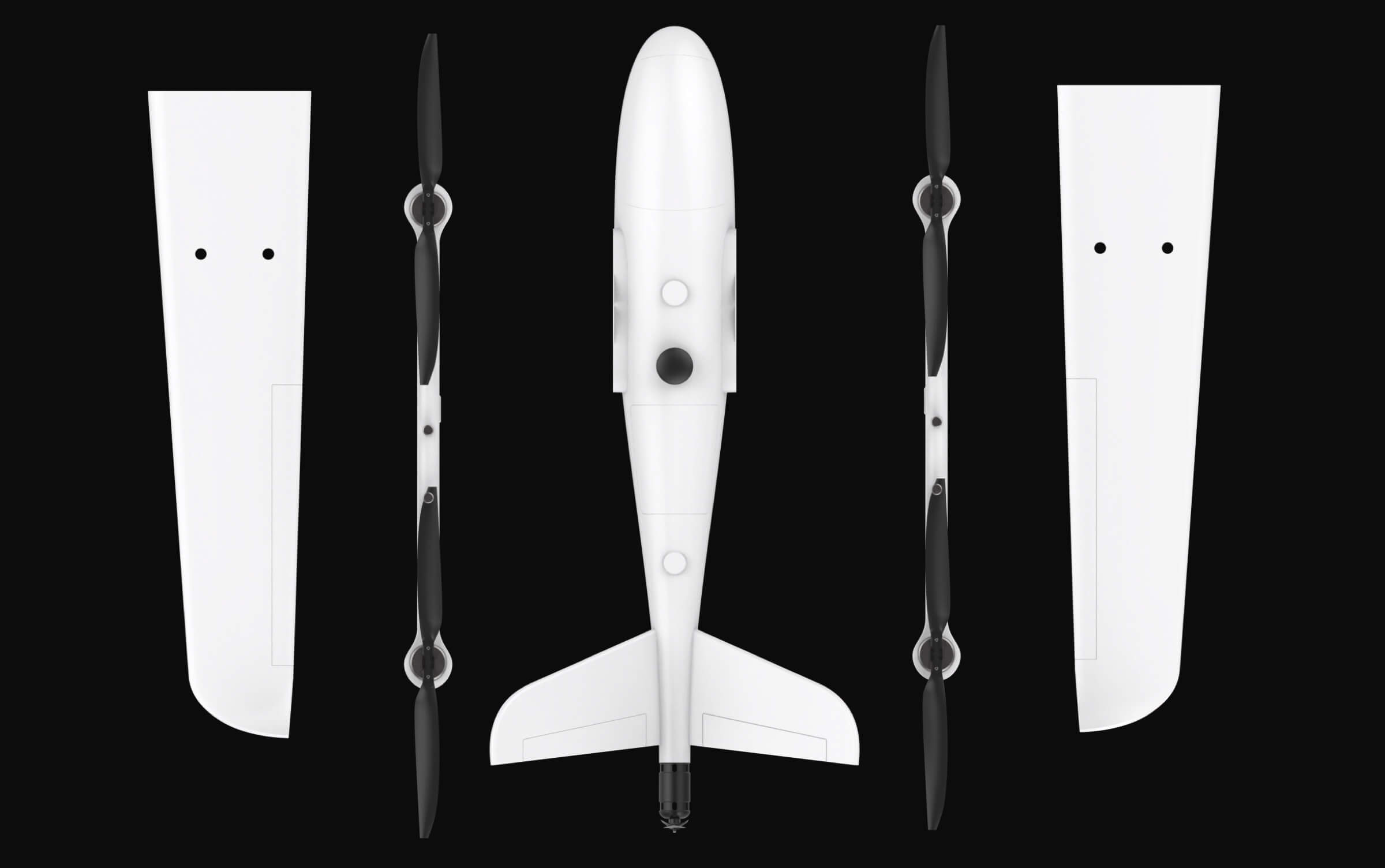

Detachable, small in size.

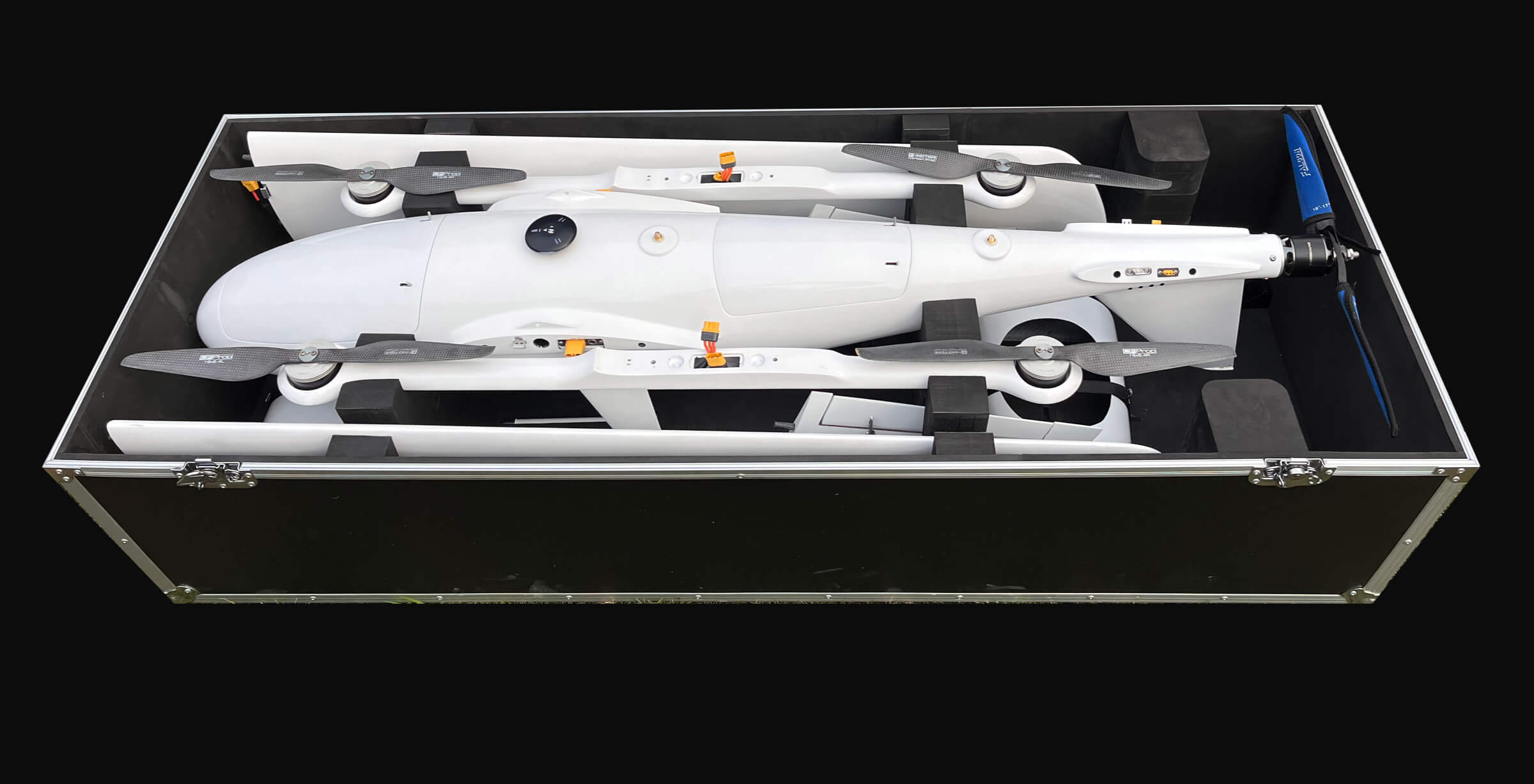

The fuselage adopts a modular design, the fuselage and wings can be quickly disassembled and assembled, and the disassembled aircraft parts can be put into a special flight case for easy operation and transportation.

Easy to carry, quick to deploy in 5 minutes.

3-step assembly, short deployment time, no calibration, take-off in less than 5 minutes.

Case Size:1470mm*560mm*400mm

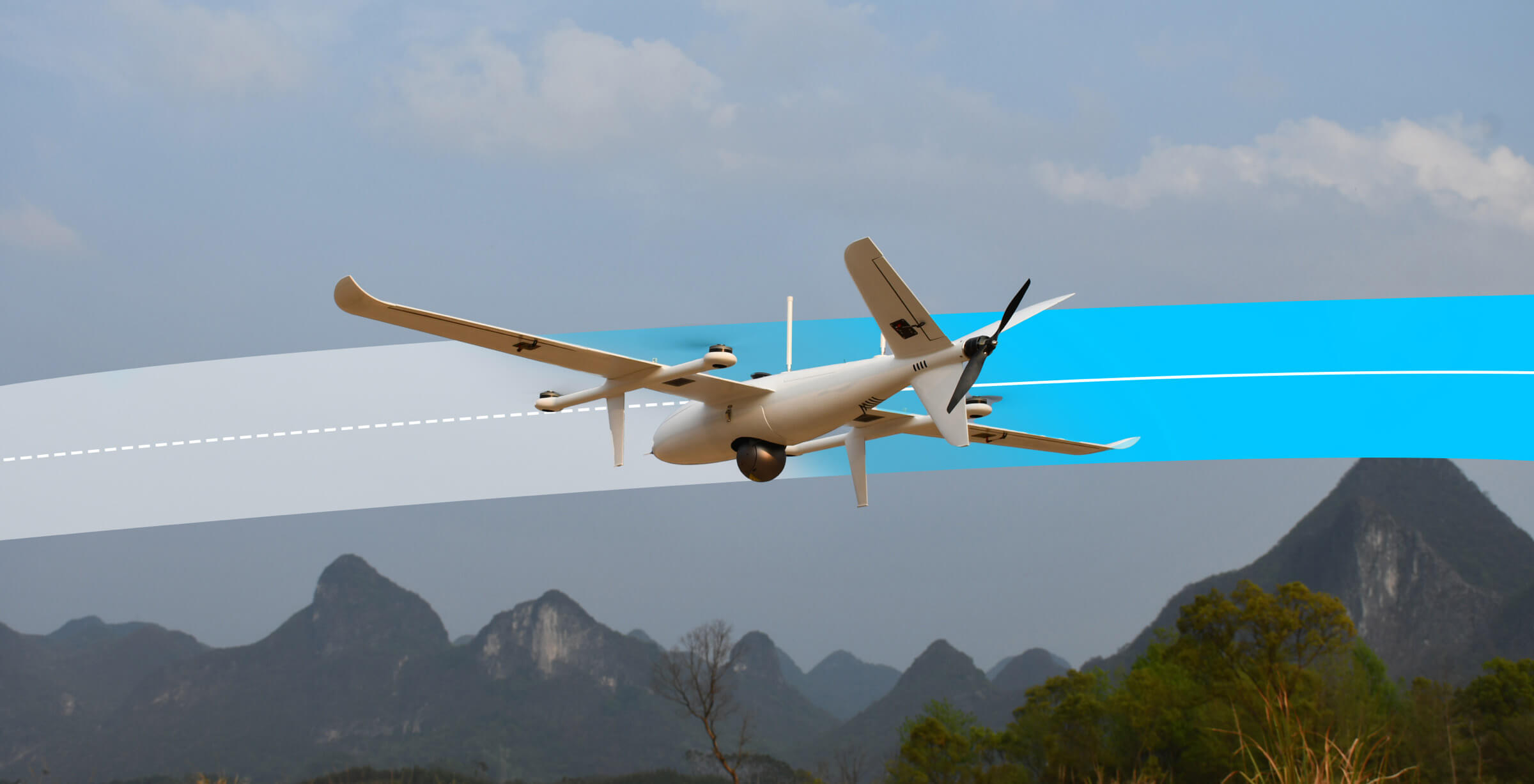

Auto flight, precise and efficient.

It can automatically generate routes according to the requirements of the results, and take pictures at fixed points and distances, which reduces the professional requirements for operators and improves the quality of results.

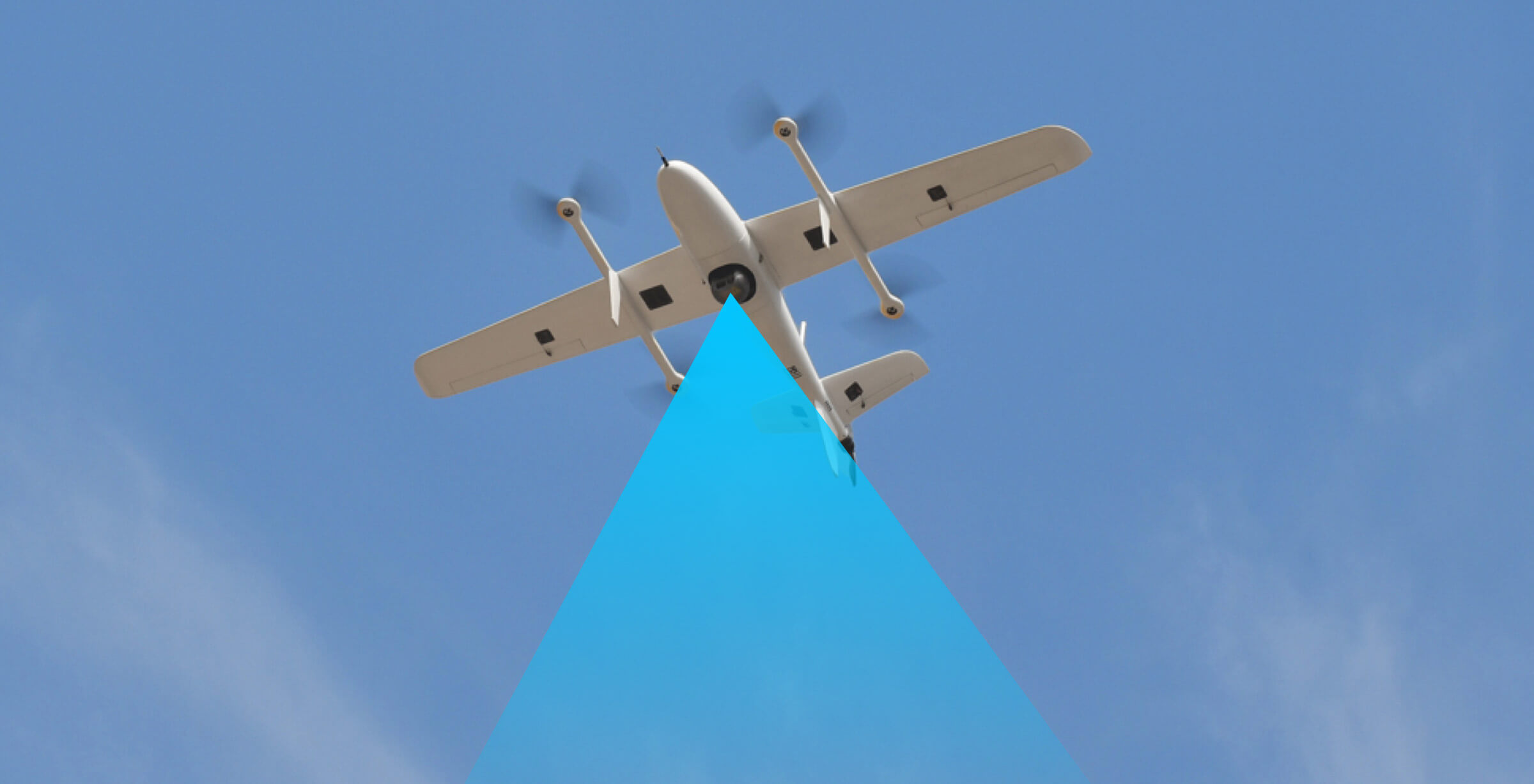

Task area fully covered.

Accurately meet the requirements of the results, and avoid the possible omissions of manual route planning.

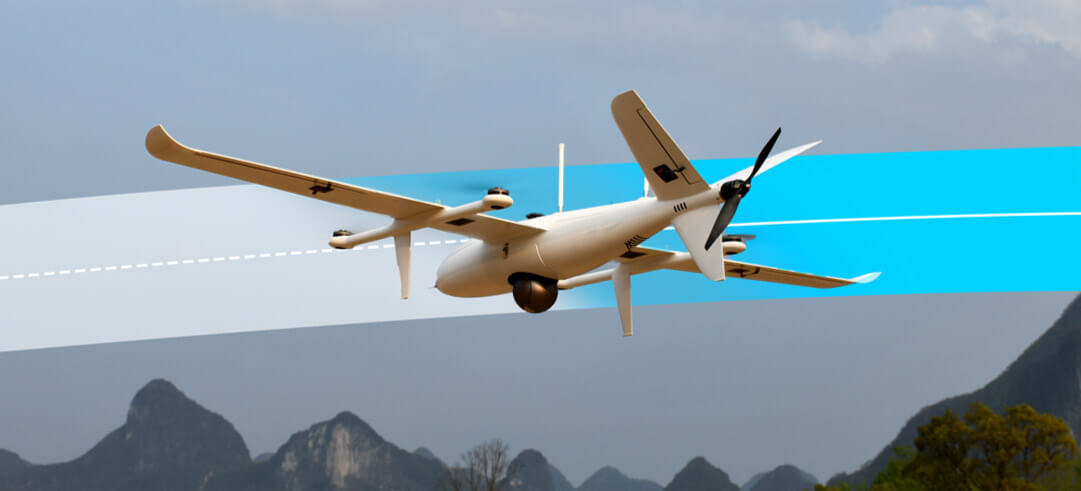

High-speed cruise, accurate monitoring.

VT04 combines the long endurance of fixed-wing and the maneuverability of multi-rotor, and can carry out pointing flight, fly to the target point at high speed in fixed-wing mode, and then hover and lock, so as to adapt to the dynamically changing mission needs.

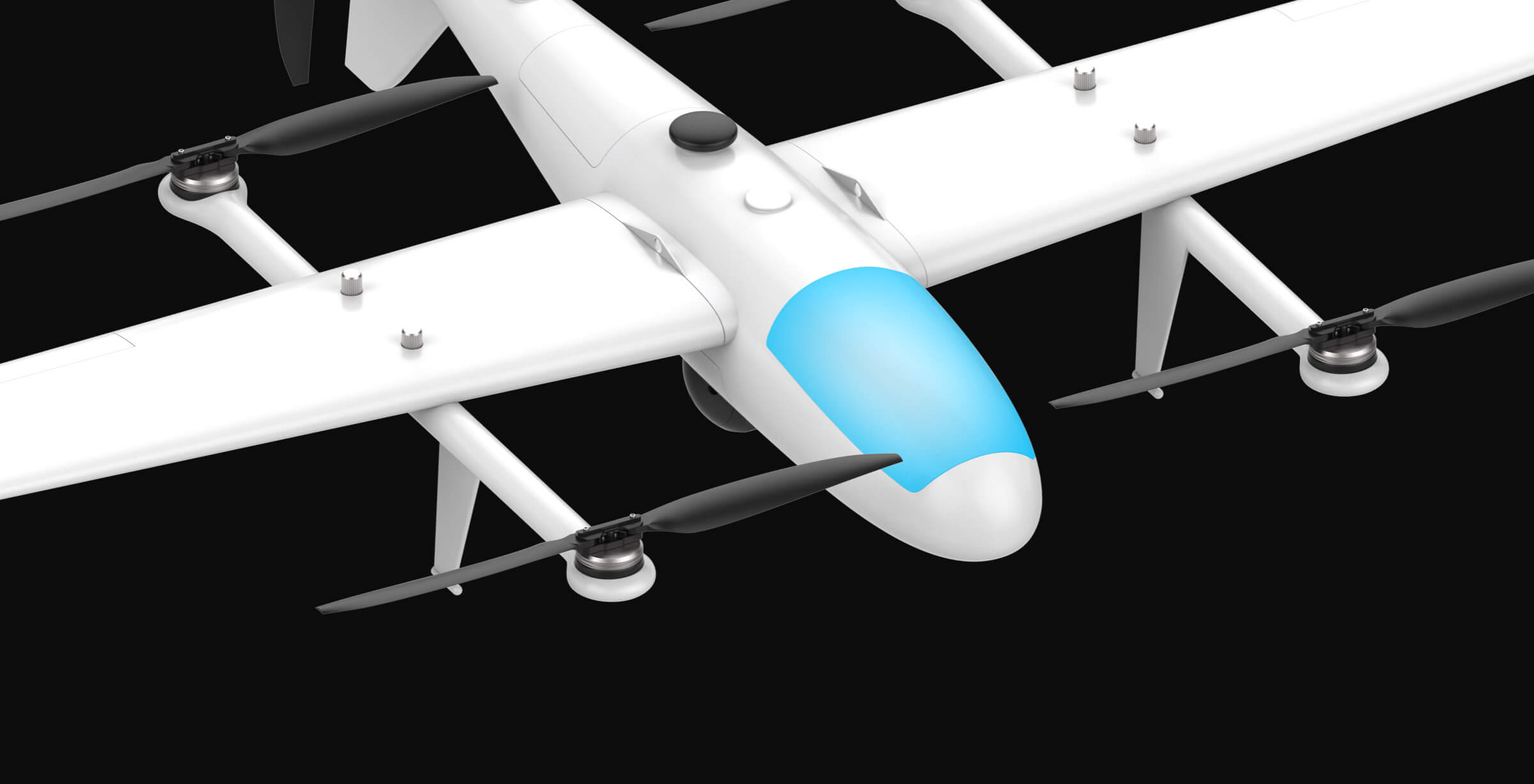

Long endurance, large payload space.

Different cameras can be installed according to different working environments. It has a high load strength and can carry objects up to 3 kg. The FY-VT04 has a large space in the cabin and a long battery life of 240 minutes, which can complete a wide range of missions.

  • Max Payload

    3000g

  • Max Endurance

    240Min

  • Recommend Payload

    1.5kg

  • Flight Time

    140Min

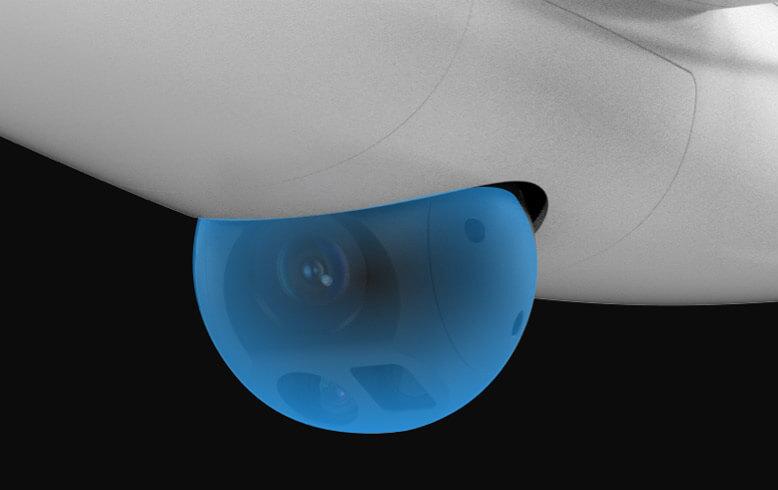

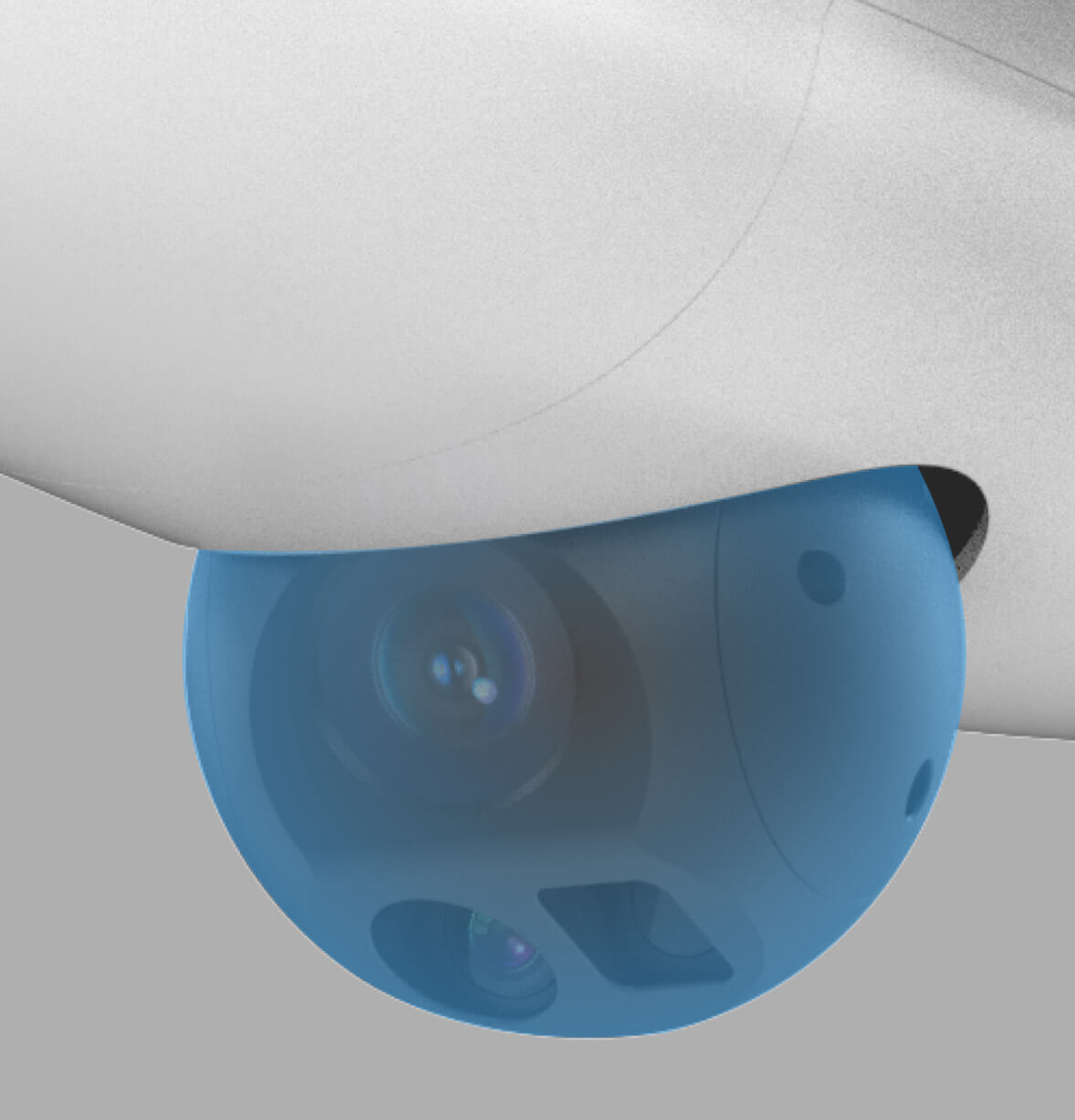

Various types of devices can be mounted to meet diverse task requirements.

Support OEM/ODM customization and empower industry-specific solutions.

  • Orthophoto Camera

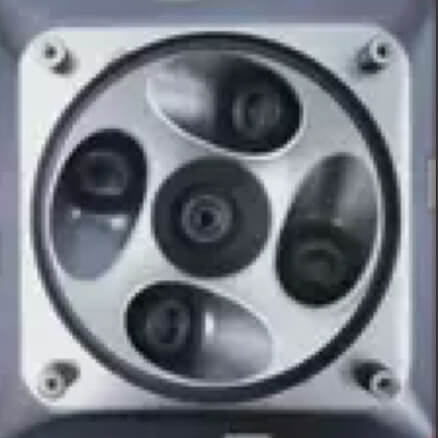

  • Oblique Camera

  • Gas Detection Device

  • 30x Visible Light Camera

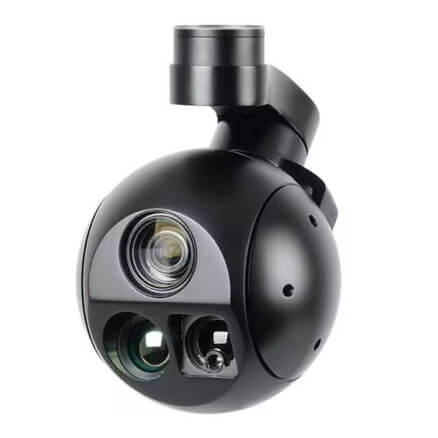

  • IR Dual/triple-sensor Gimbal Camera

Application Fields

Topographic Mapping

Topographic Mapping

Border Patrol

Border Patrol

Power Line Inspection

Power Line Inspection

Disaster Investigation

Disaster Investigation

Forest Fire Detection

Forest Fire Detection

Fire Rescue

Fire Rescue

Technical Parameters

Type
4+1 VTOL Drone
Material
Carbon fiber, fiberglass, Kevlar
Take-off and Landing Mode
Vertical Take-off and Landing
Fuselage Length
1260mm
Wingspan
2500mm
Max Endurance (depending on load)
240min (loading 1.5kg, 120min)
Max Payload
3kg
Standard Payload
1.5kg
MTOW
13.5kg
Cruising Speed
75-144km/h
Wind Resistance
> Level 6
Max Operating Altitude
4800m
