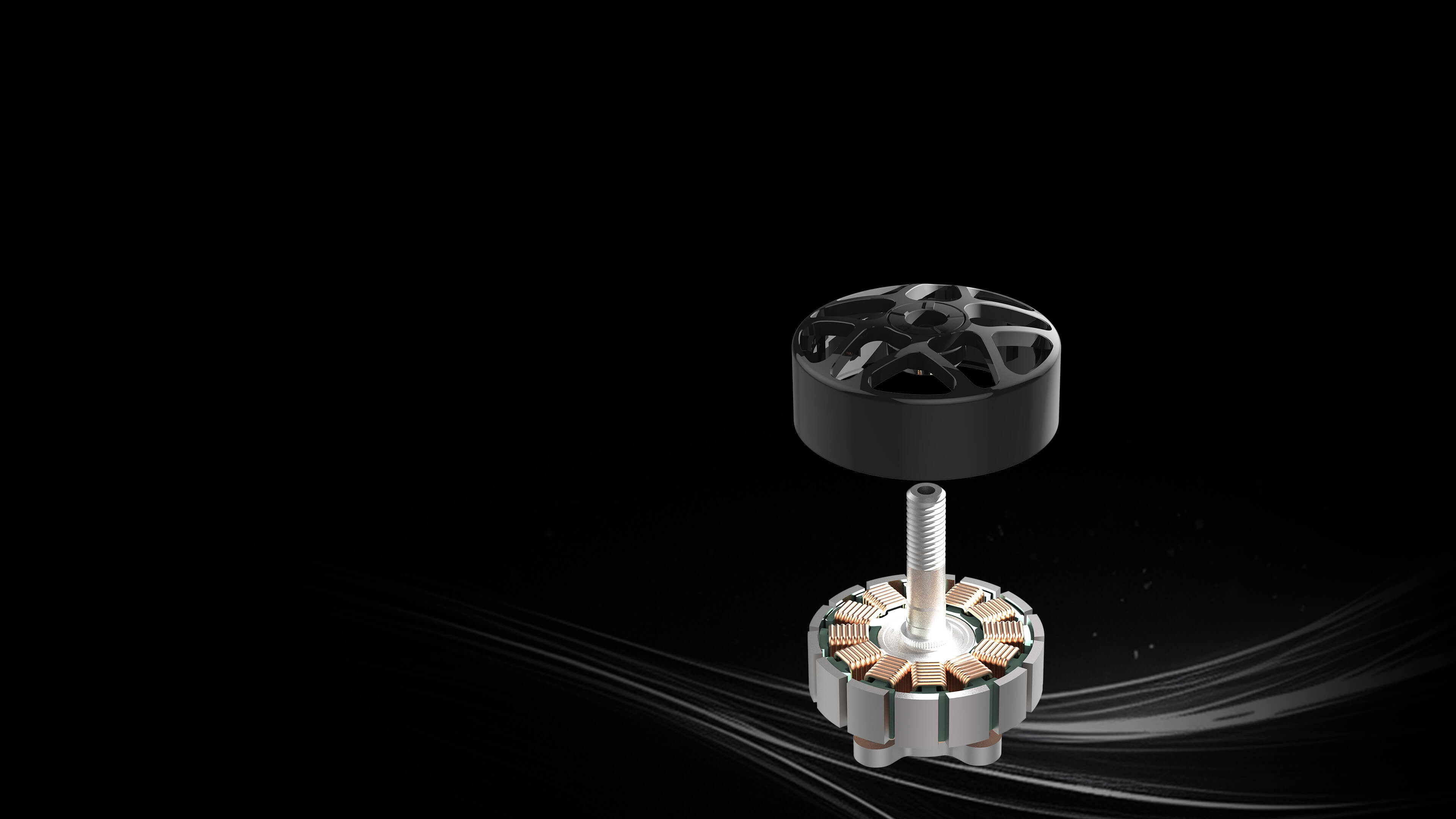

Precision-engineered with premium materials featuring robust internal motor structure, delivering low-loss, high-efficiency performance and extended service life.
High-performance Core
Laminated with 0.2mm ultra-thin silicon steel sheets for lower core loss.
Alloy Steel Spindle
High hardness (HRC58-62) with superior toughness, and exceptional bending resistance.
Precision Endurance Bearings
Premium Rotor Housing
with electroless nickel-phosphorus alloy plating, engineered to balance superior electromagnetic performance with exceptional corrosion resistance.

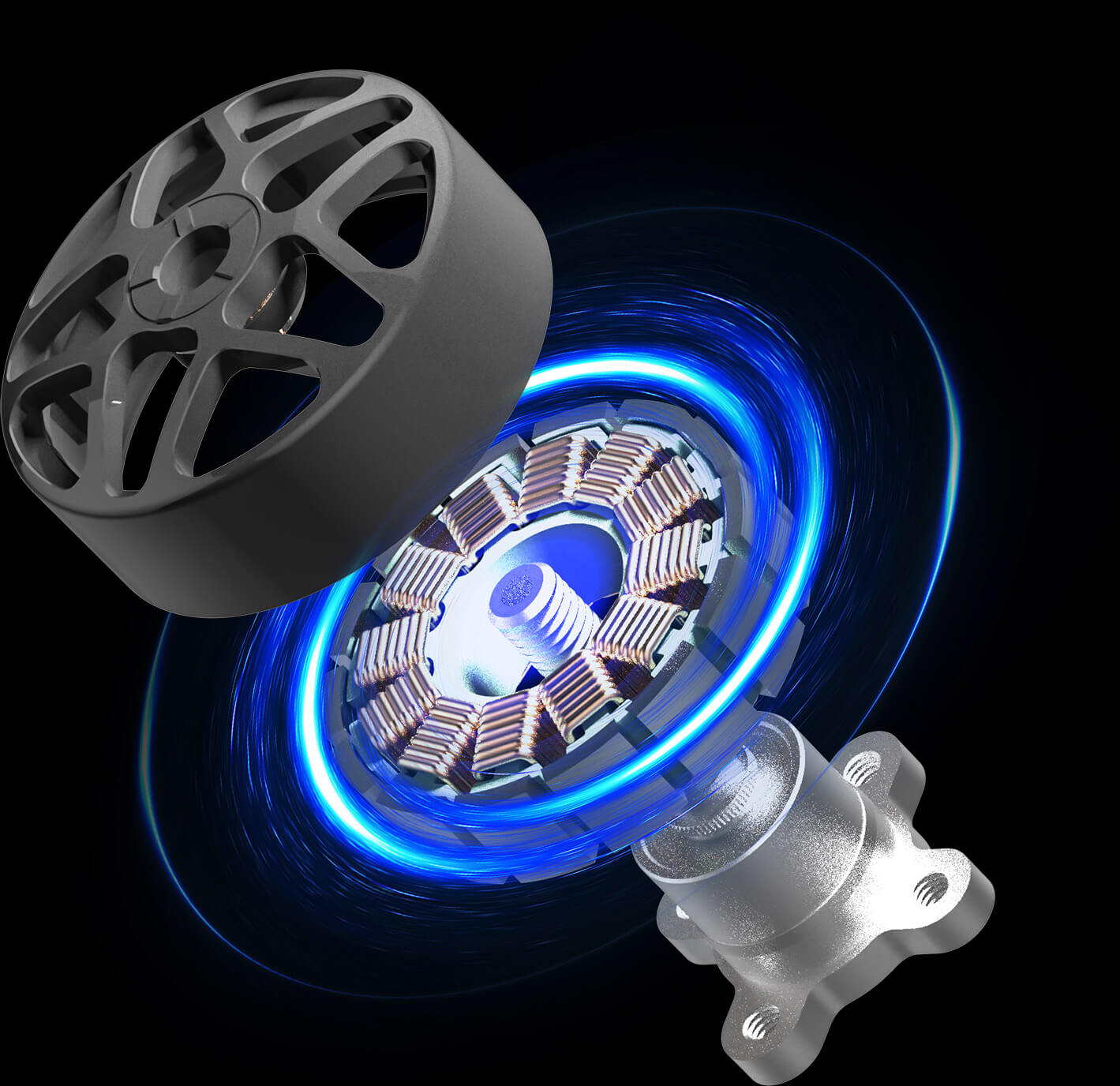

High-current capability, ensuring stable power delivery during high-load operation.High-performance brushless motor system featuring rapid rotor response and precision throttle control, enabling instantaneous transitions between flight velocities and attitudes.
Delivering 1100W peak power, with instantaneous torque burst capability, engineered for aerobatic-grade flight performance.
The motor system has passed rigorously tests with outstanding performance metrics across all throttle positions.Featuring excellent thermal management and peak efficiency power transmission for uncompromised flight performance.
ESC for testing | Propeller | Throttle | Voltage | Current | Thrust | Speed | Power | Thrust Efficiency | Temperature |
---|---|---|---|---|---|---|---|---|---|
60A ESC | GF7037 | 30% | 24.65 | 2.7 | 375 | 8822 | 67.5 | 5.55 | 96 |
40% | 24.64 | 5.2 | 628 | 11254 | 128.9 | 4.87 | |||
50% | 24.61 | 8.2 | 866 | 13189 | 201.3 | 4.3 | |||
60% | 24.57 | 12.7 | 1178 | 15327 | 311.1 | 3.79 | |||
70% | 24.52 | 19.1 | 1570 | 17586 | 469.1 | 3.35 | |||
80% | 24.47 | 26.5 | 1955 | 19595 | 648.9 | 3.01 | |||
90% | 24.4 | 35.4 | 2367 | 21357 | 863 | 2.74 | |||
100% | 24.31 | 45.8 | 2722 | 22783 | 1113.6 | 2.44 | |||
HQ7 X3.7 | 30% | 24.67 | 2.6 | 352 | 8909 | 64.9 | 5.43 | 102 | |
40% | 24.65 | 5.1 | 607 | 11291 | 126 | 4.82 | |||
50% | 24.63 | 8.1 | 846 | 13339 | 198.3 | 4.27 | |||
60% | 24.59 | 12.6 | 1159 | 15420 | 310.1 | 3.74 | |||
70% | 24.53 | 19.1 | 1529 | 17642 | 468.5 | 3.26 | |||
80% | 24.48 | 26.9 | 1915 | 19605 | 658.5 | 2.91 | |||
90% | 24.41 | 35.8 | 2274 | 21297 | 873.9 | 2.6 | |||
100% | 24.32 | 46.2 | 2537 | 22602 | 1123.3 | 2.26 |
