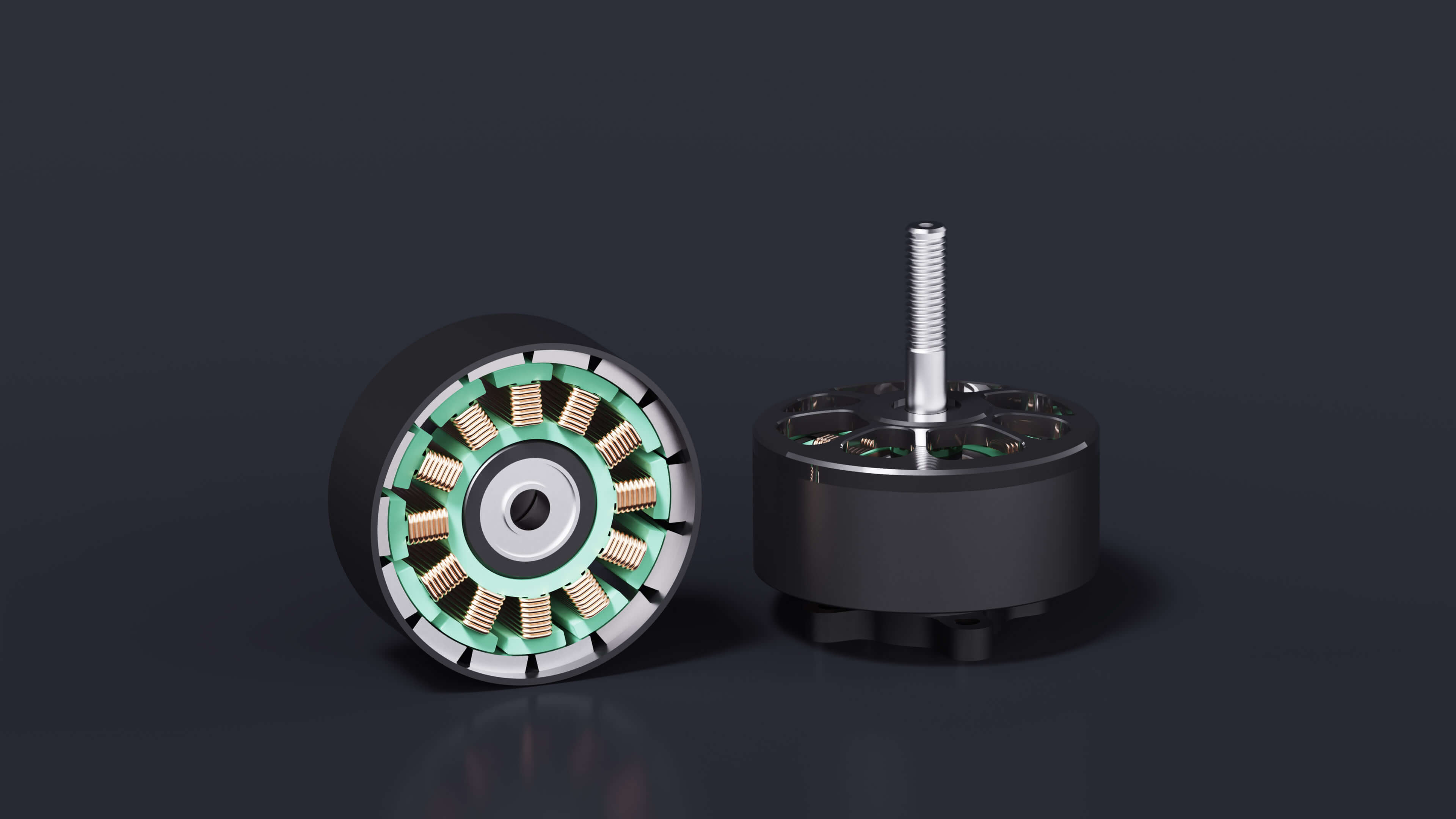

Industrial-grade Brushless FPV Motor

Industrial-grade Brushless FPV Motor

4214-380KV

Achieves high-payload capacity while maintaining outstanding propulsion performance

High-torque brushless motor with heavy-duty operation, optimized for 13-15" FPV racing drones.

Achieves high-payload capacity while maintaining outstanding propulsion performance

214g±3

Motor Weight

4.5Kg

Max Pulling Force

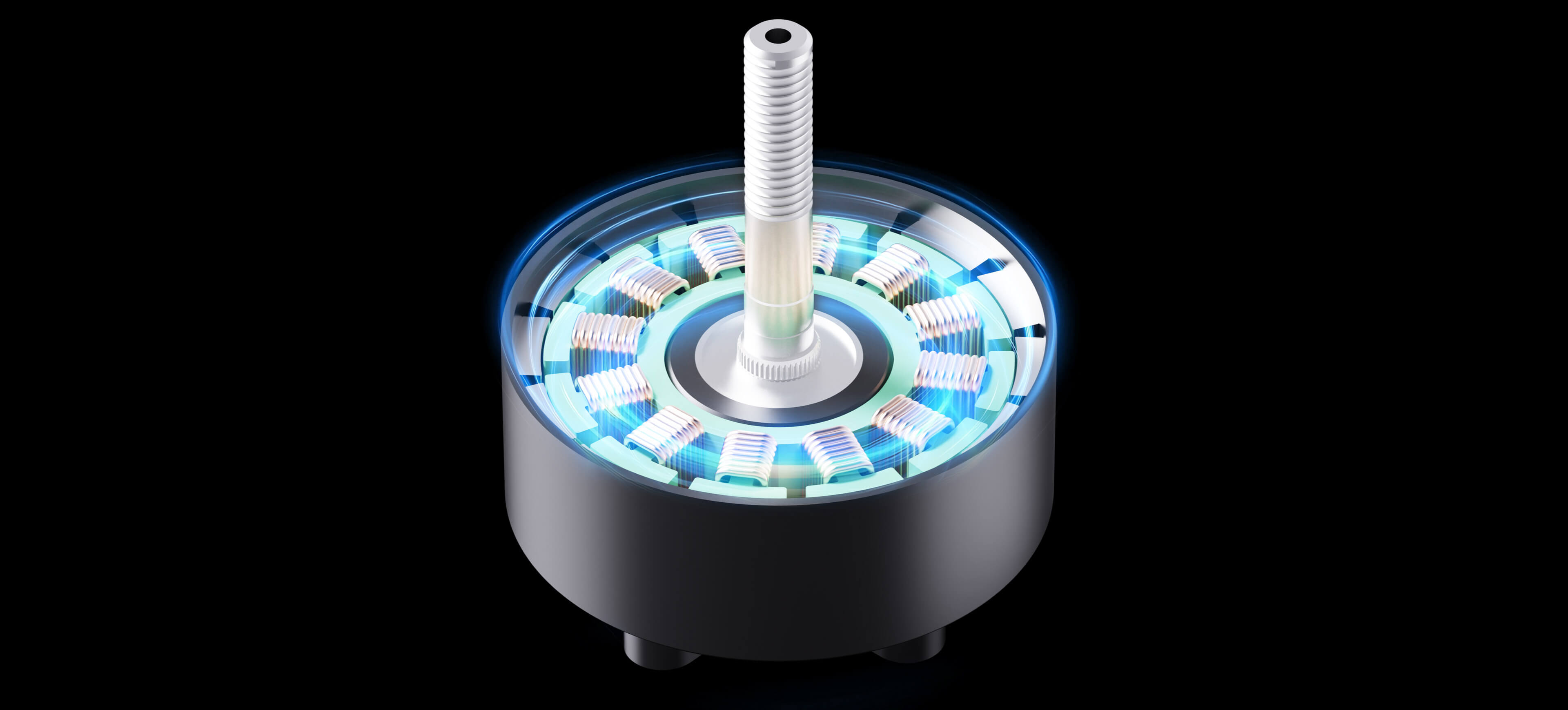

Aerospace-grade precision engineering ensures optimized propulsion efficiency, delivering 15% higher thrust-to-weight ratio than conventional designs.

Aerospace-grade precision engineering

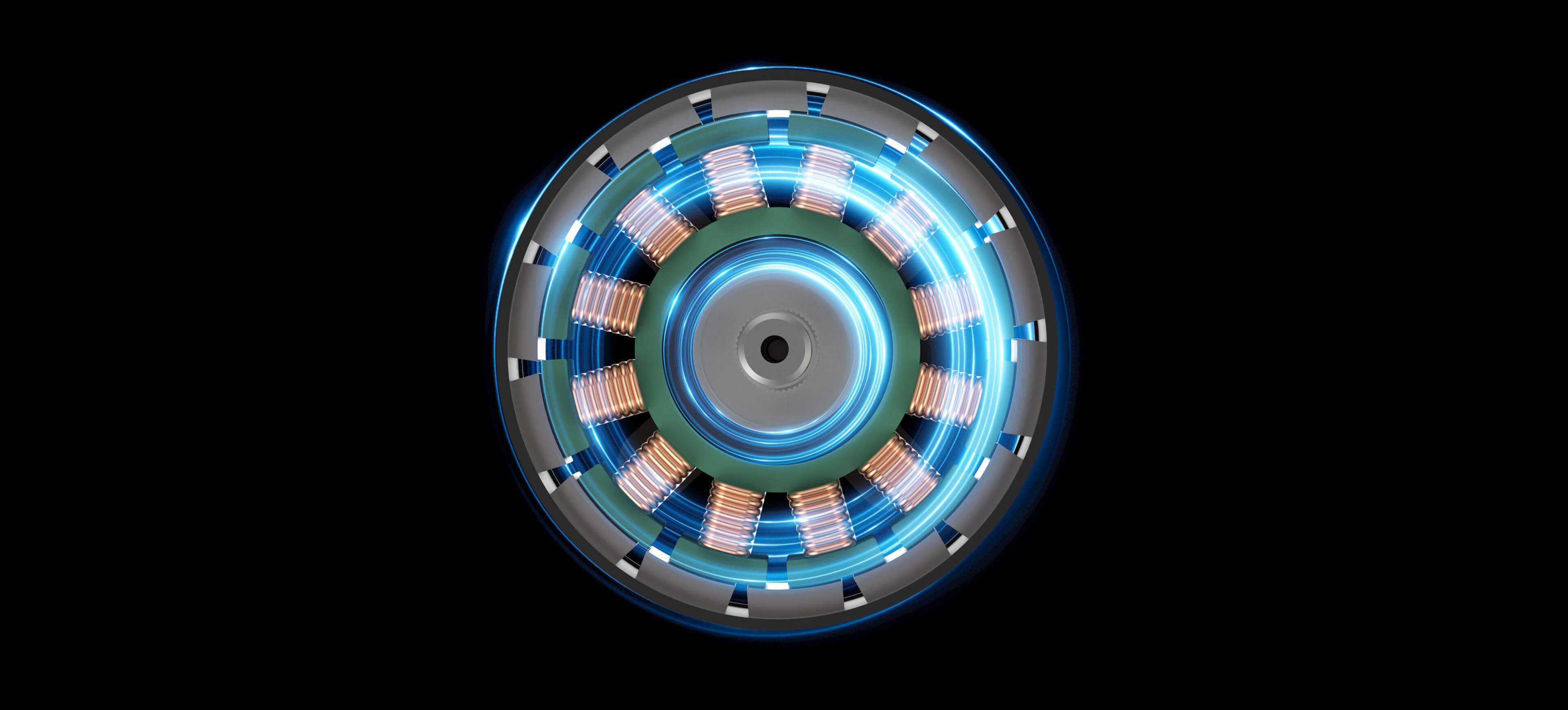

High toughness carbide spindle

High strength and corrosion resistance

High-strength aviation aluminum

Is used to create the stator base

200℃ high temperature resistant enameled wire

Stable performance

High-speed precision bearings

Low friction torque, impact resistance, long service life

Nickel plating electrophoresis process

Magnetic conductivity and corrosion resistance

20# seamless steel tube rotor casing

It adopts 20# seamless steel pipe

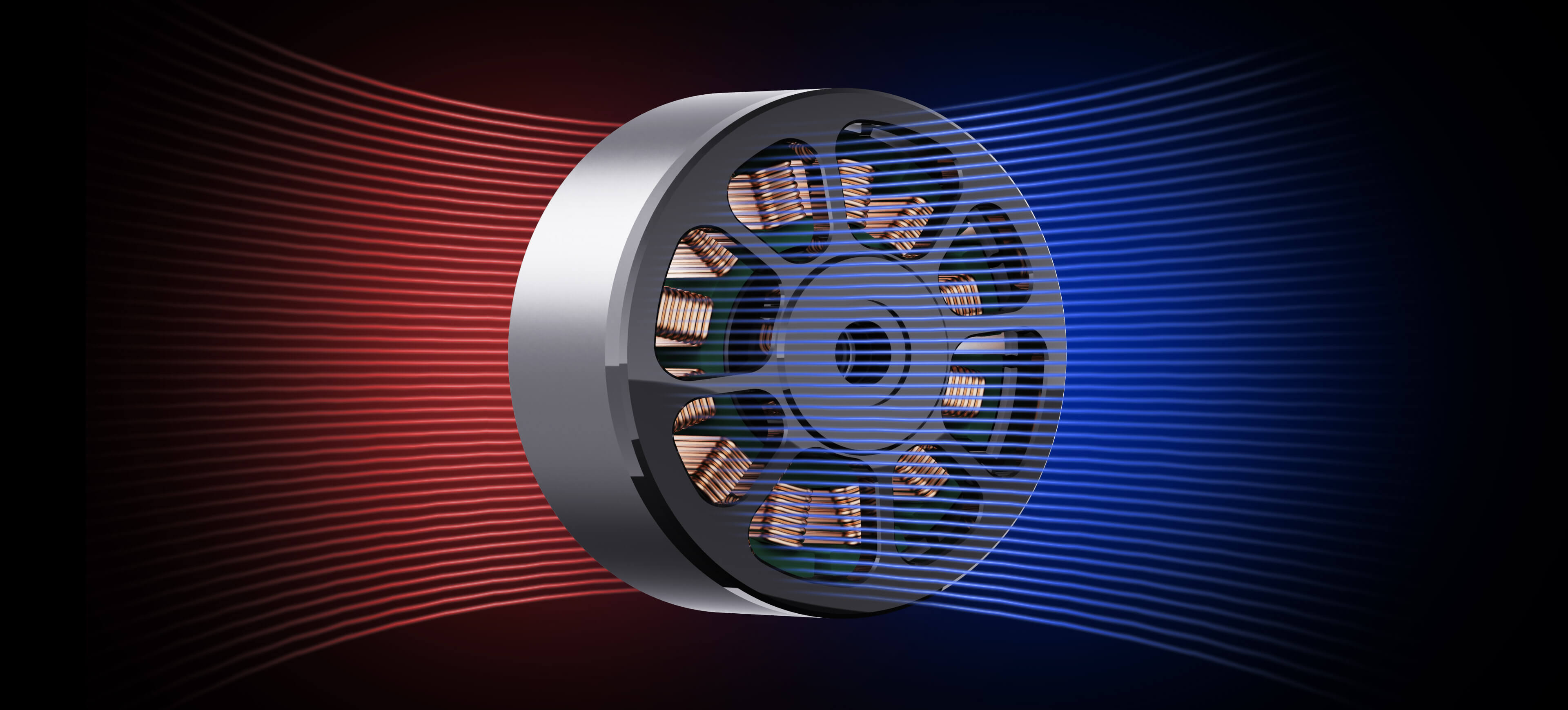

Ultra-hollow structure design with high-efficiency thermal dissipation, achieving 40% better cooling performance than conventional solid frames.

Skeletonized end-frame design with embedded flow channels maintains sustained low-temperature operation under heavy-duty conditions, extending motor lifespan by 30% compared to conventional designs.

Ultra-hollow structure design

Diverse application scenarios

  • Emergency Rescue

    Emergency Rescue

  • Urban Transportation

    Urban Transportation

  • Logistics Transportation

    Logistics Transportation

Technical Parameters

Rated Voltage(LIPO)
65-8S
Max Power(W)
1090
Max Current(A)
36A
KV Value
380
No-load Current(10V)
<2.0A
Outer Shaft Diameter
6mm
Number of Slot Poles
12N/14P
Inter-phase Internal Resistance
58mΩ
Core Size
Ф42mm*14mm
Motor Size
Ф49mm*59mm
Temperature Class
H
Silicone Cable
14AWG/250mm
Motor Weight (including wire)
214g±3
