Engineered for Compact FPV Dominance

Engineered for Compact FPV Dominance

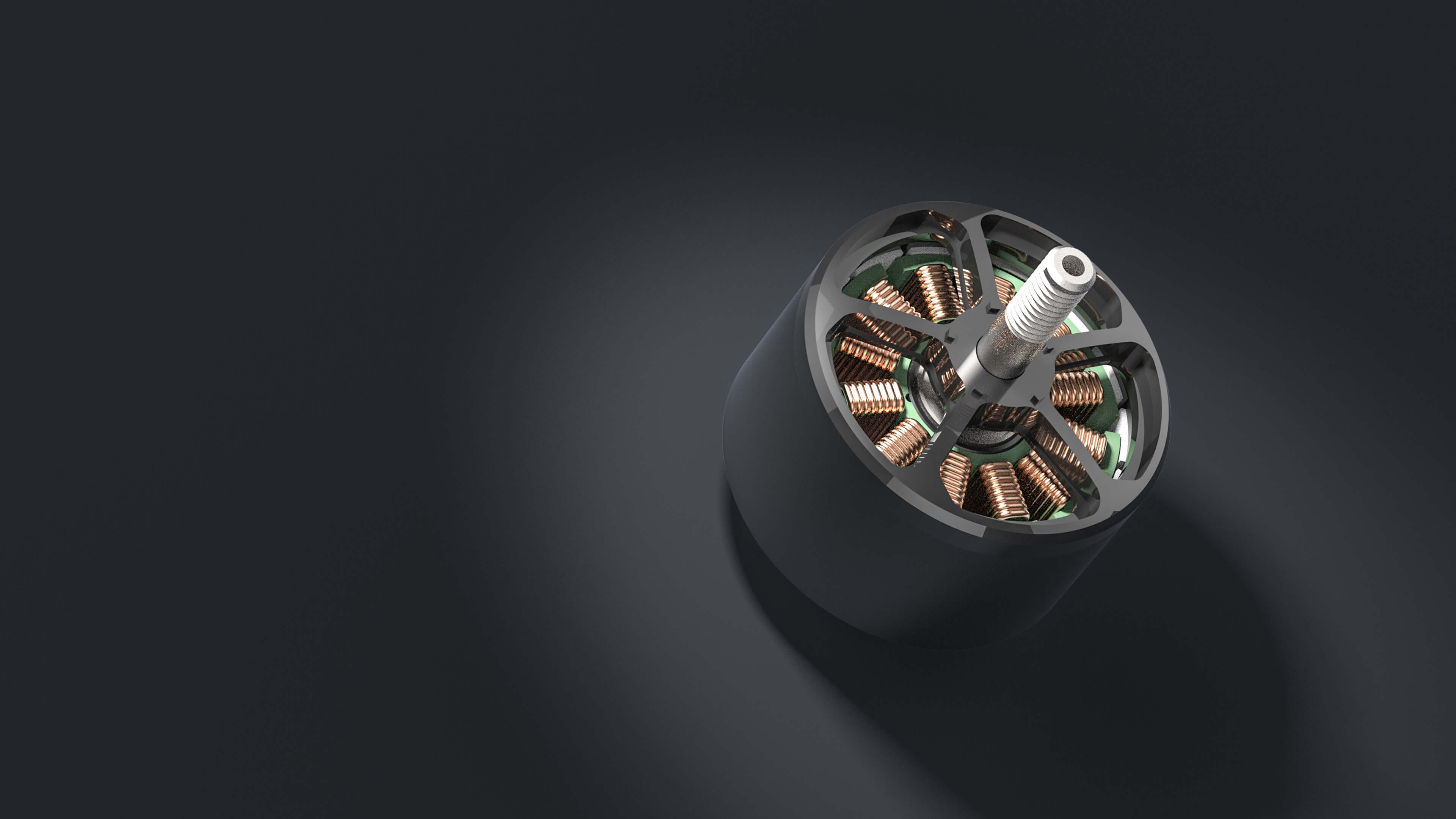

3115P-900KV

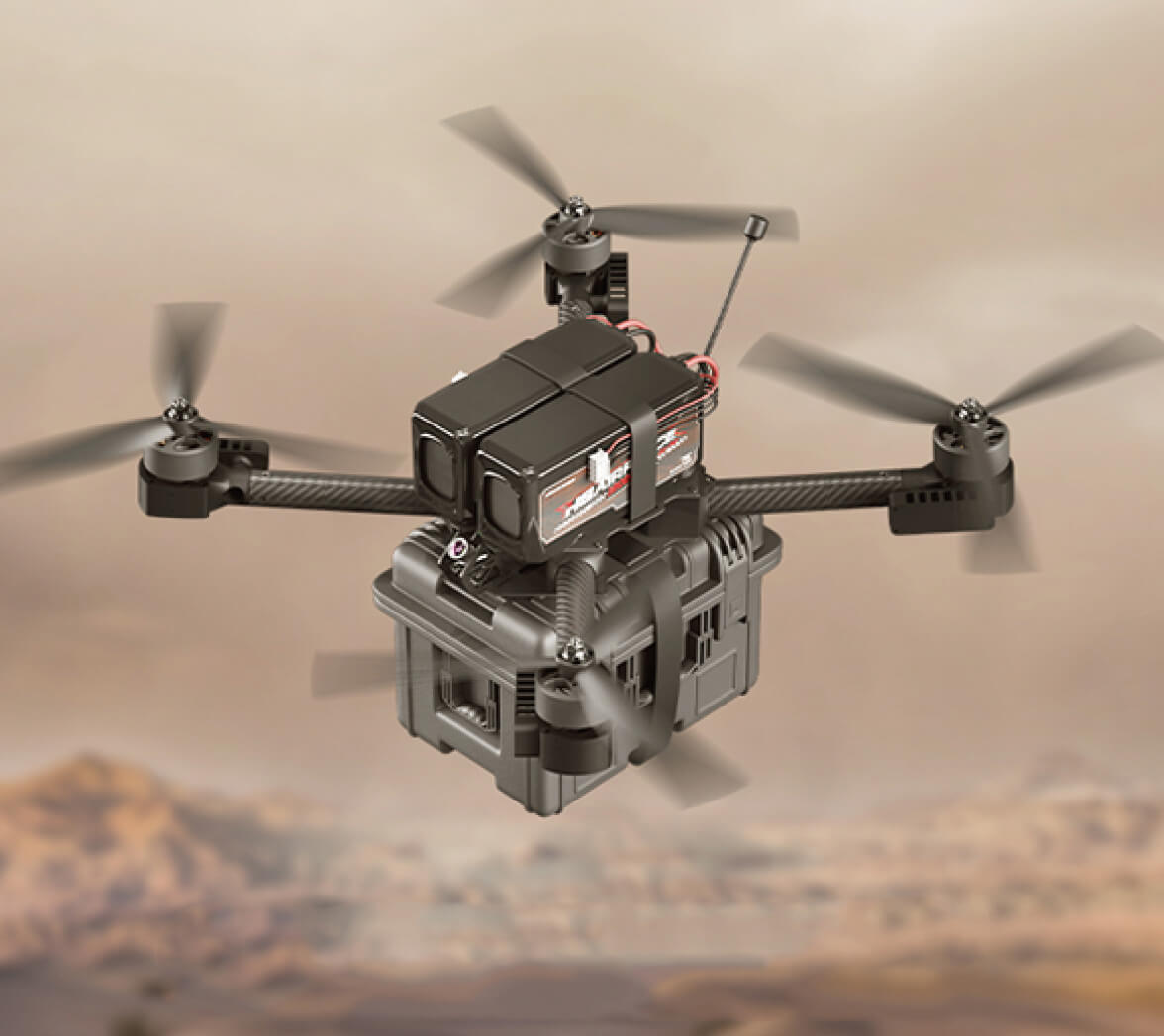

Light, Stable, and Powerful – Suitable for 10-inch Small FPV Drones

The lightweight motor minimizes airframe load and delivers stable and abundant power.

Motor Weight 115g±3

Max Pulling Force 3.7KG

Light

Vacuum Magnetic Conduction with Dynamic Stability

12-slot 14-pole distributed winding architecture with high current-carrying capacity, balancing stability while reducing vibration and loss.

Vacuum Magnetic Conduction with Dynamic Stability

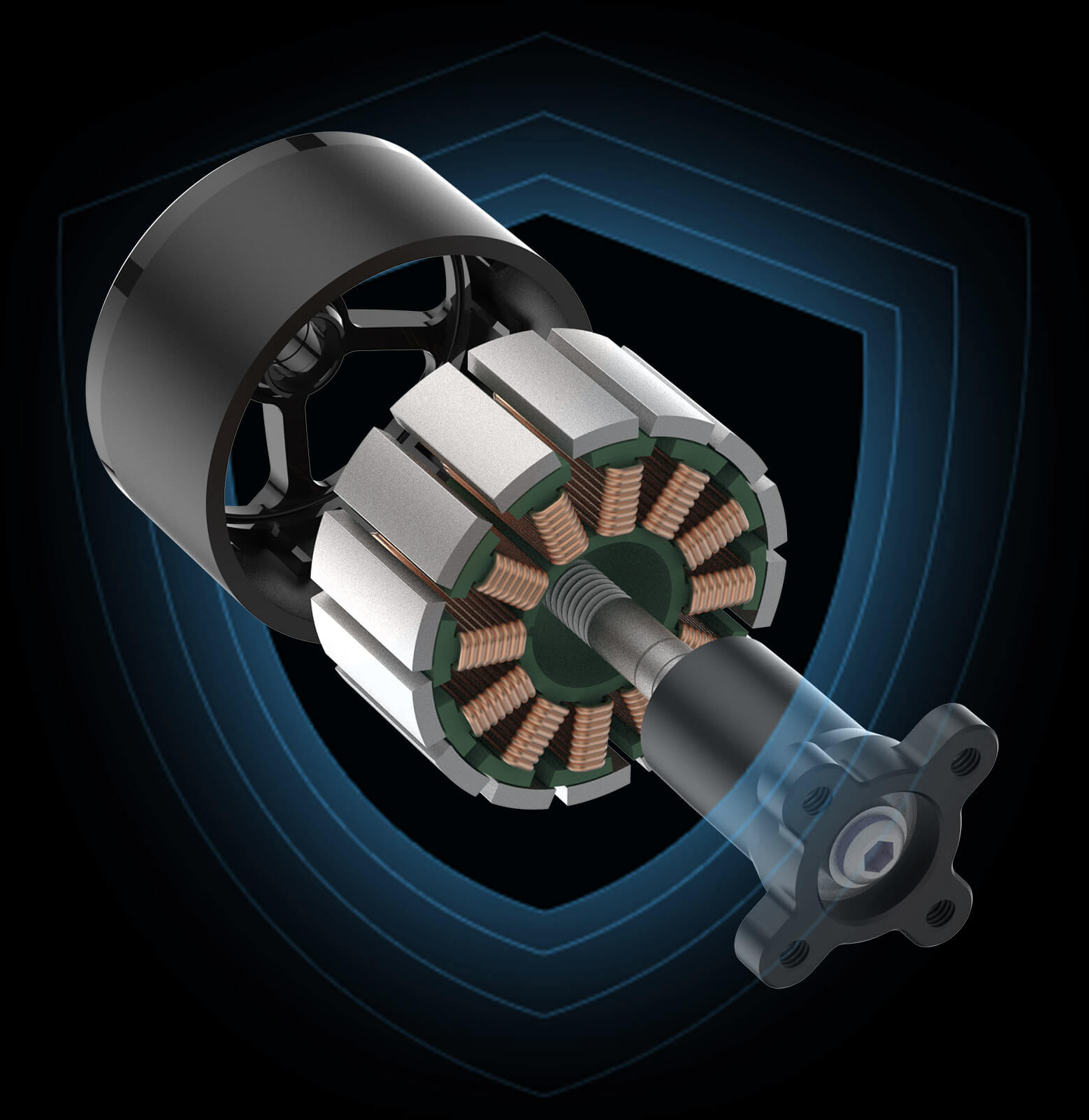

Enhanced Safety Flight Power System

precision manufacturing

Utilizing low-loss silicon steel laminations for the core + 200°C high-temperature resistant enameled wire + high-toughness integrated bearing structure, featuring low interphase resistance and high conversion efficiency to ensure reliable flight performance.



Superior Quality

The outer rotor housing adopts electroless nickel-phosphorus alloy plating, featuring corrosion resistance, excellent anti-interference capability, and superior environmental adaptability.



Enhanced Safety Flight Power System

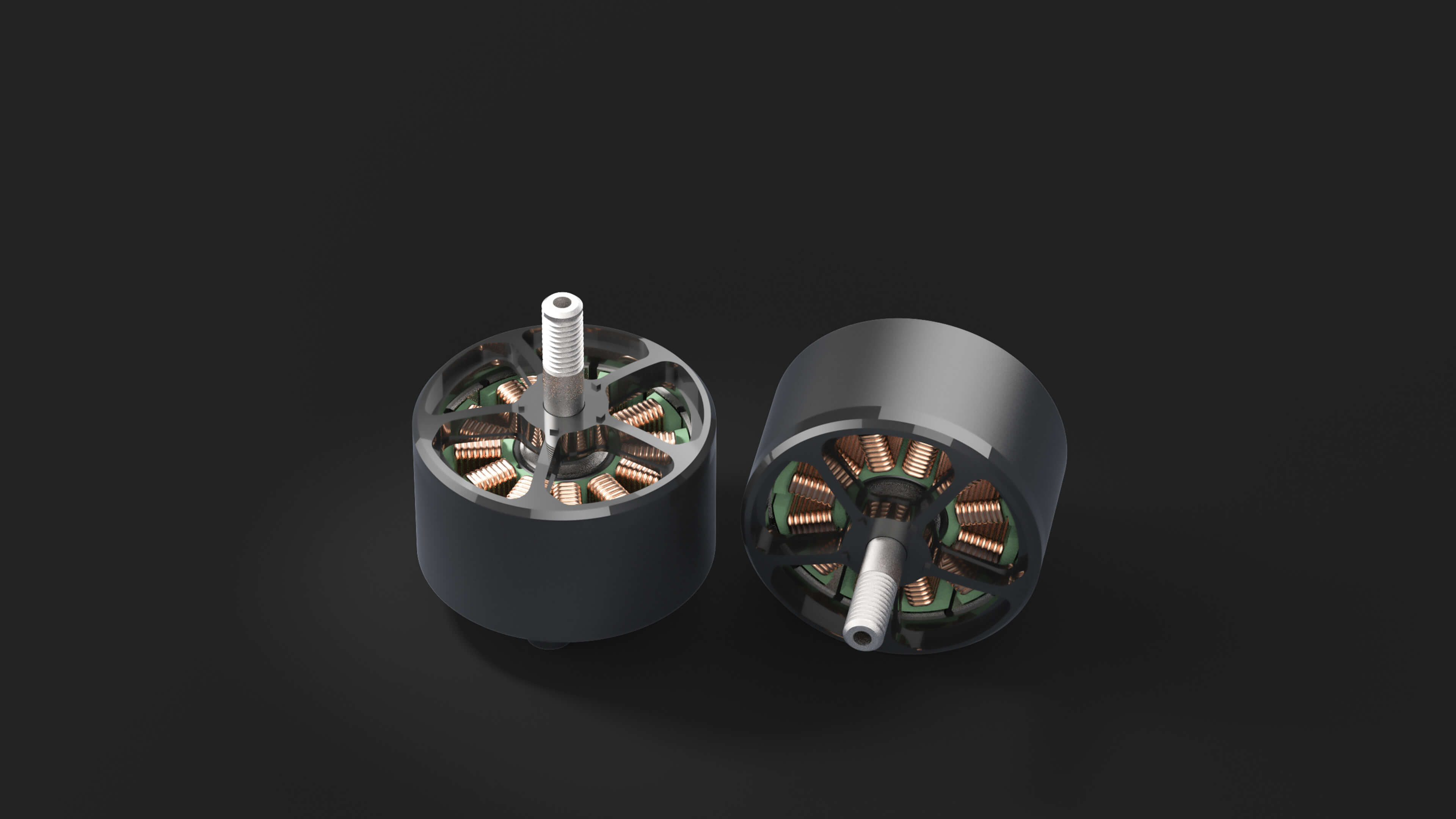

High-efficiency conversion with extended operational endurance

High-efficiency conversion with extended operational endurance

Benefiting from high-power motor dynamics, it delivers greater thrust with lower power consumption under identical power input, while maintaining flight stability and extended endurance.

Technical Parameters

  • Rated Voltage(LPo):6S
    Inter-phase Internal Resistance:47mΩ
  • Max Power(w):1700
    Core Size:Ф31mmx15mm
  • Max Current(A):72
    Motor Size:Ф37.5mmx46mm
  • KV Value:900
    Temperature Class:H
  • No-load Current(10V ):<2.0A
    Silicone Cable:18AWG/260mm
  • Outer Shaft Diameter:5mm
    Motor Weight (including wire):115g±3
  • Number of Slot Poles:12N/14P
