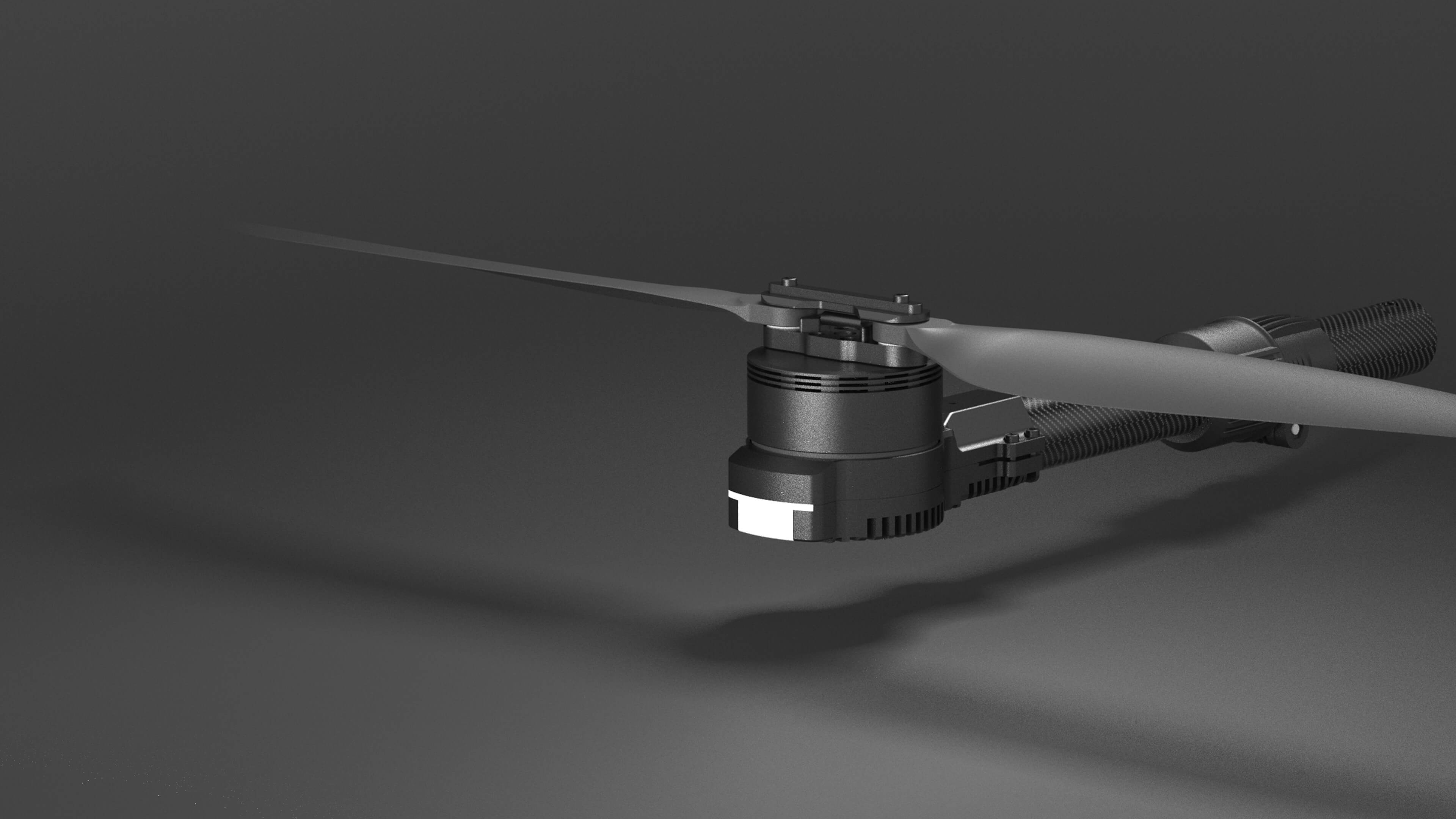

F6 Propulsion System

Powerful Core, Safer Protection

F6 Propulsion System

As the UAV industry becomes increasingly specialized and regulated, user demands for products continue to rise. In line with our mission to 'provide customers with safer power systems,' Feiyu has developed the F-series professional motors specifically for agricultural plant protection. These motors are highly reliable, feature long service life, and can withstand harsh operating conditions, delivering an efficient, convenient, and worry-free power solution for agricultural applications.

  • 12KG

    High Thrust

  • IPX6

    Protection Level

  • Data Communication

  • High-Temperature Resistant

Efficient Propeller

Efficient Propeller

Multiple Protections

Multiple Protections

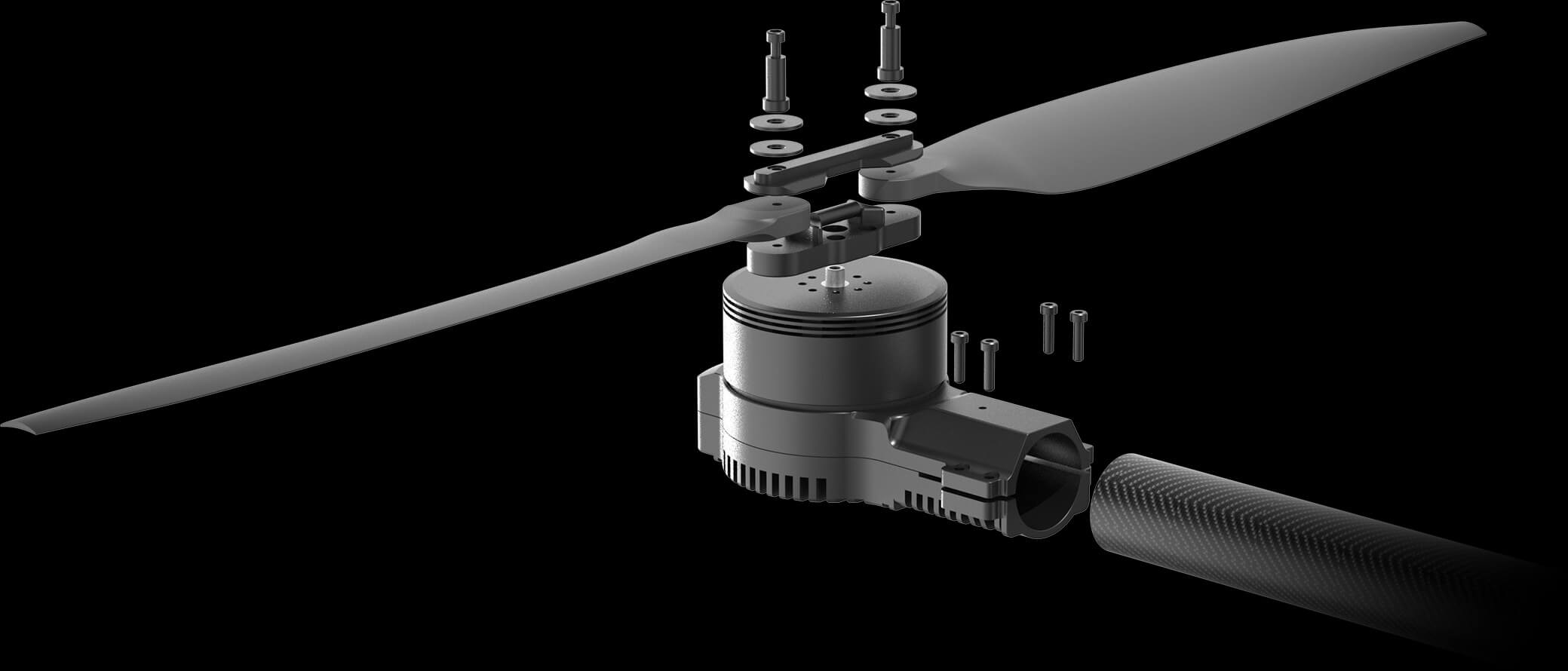

Integrated Power System, Easy to Use

Integrated high-performance motor, ESC platform, propeller blades, and custom motor mount with modular design. Requires no complex assembly or debugging, featuring simple installation and stable, efficient operation.

Integrated Power System, Easy to Use

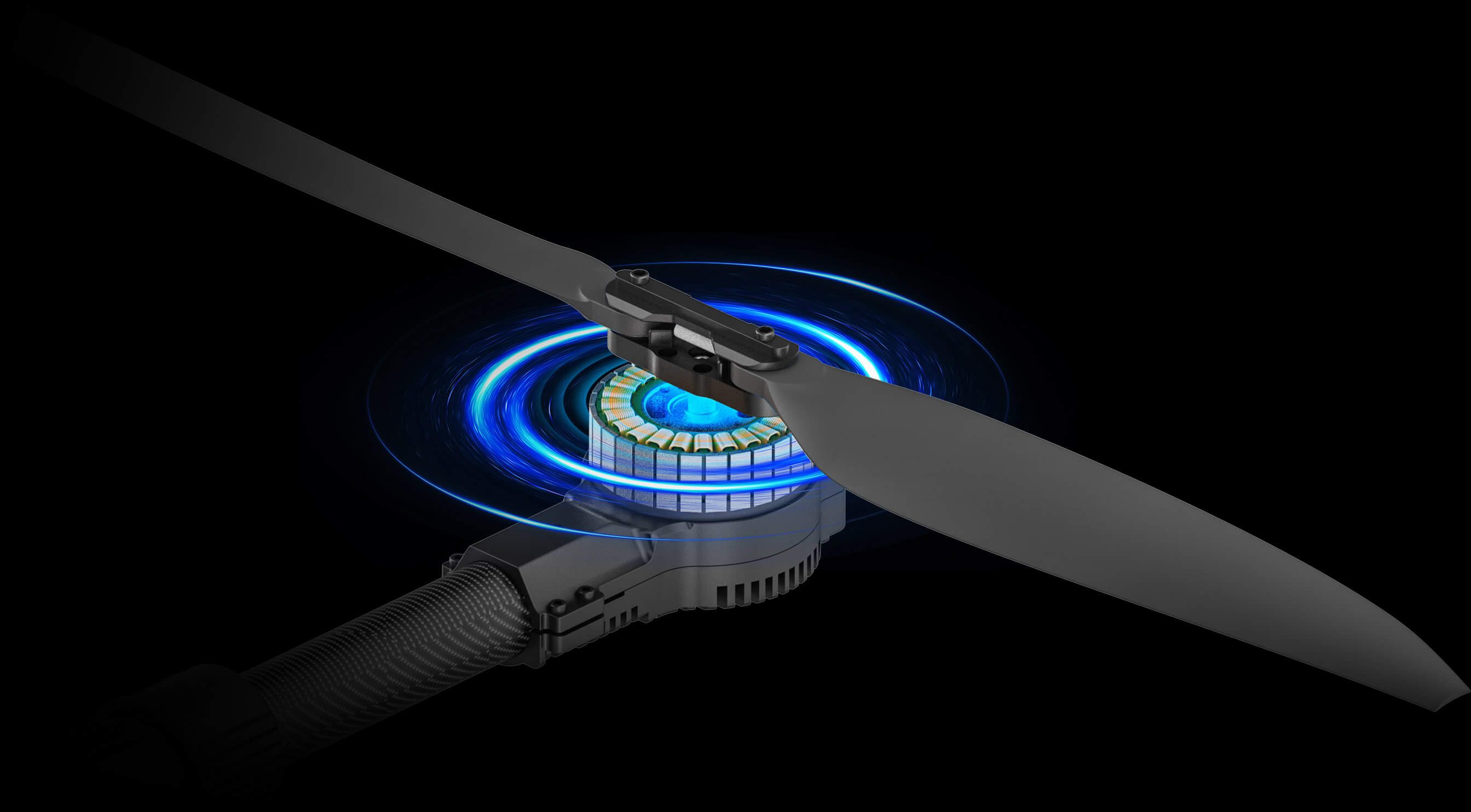

Strong Thrust, Rapid Response – Engineered for High-Payload Agricultural Drones.

Featuring a dual-redundant magnetic circuit design and paired with custom 24x80 carbon fiber propeller blades, the motor achieves a maximum thrust of 12kg. Compatible with a wide-frequency signal (50-500Hz) and capable of handling 60A instantaneous current, it balances power and efficiency.

Strong Thrust, Rapid Response – Engineered for High-Payload Agricultural Drones.

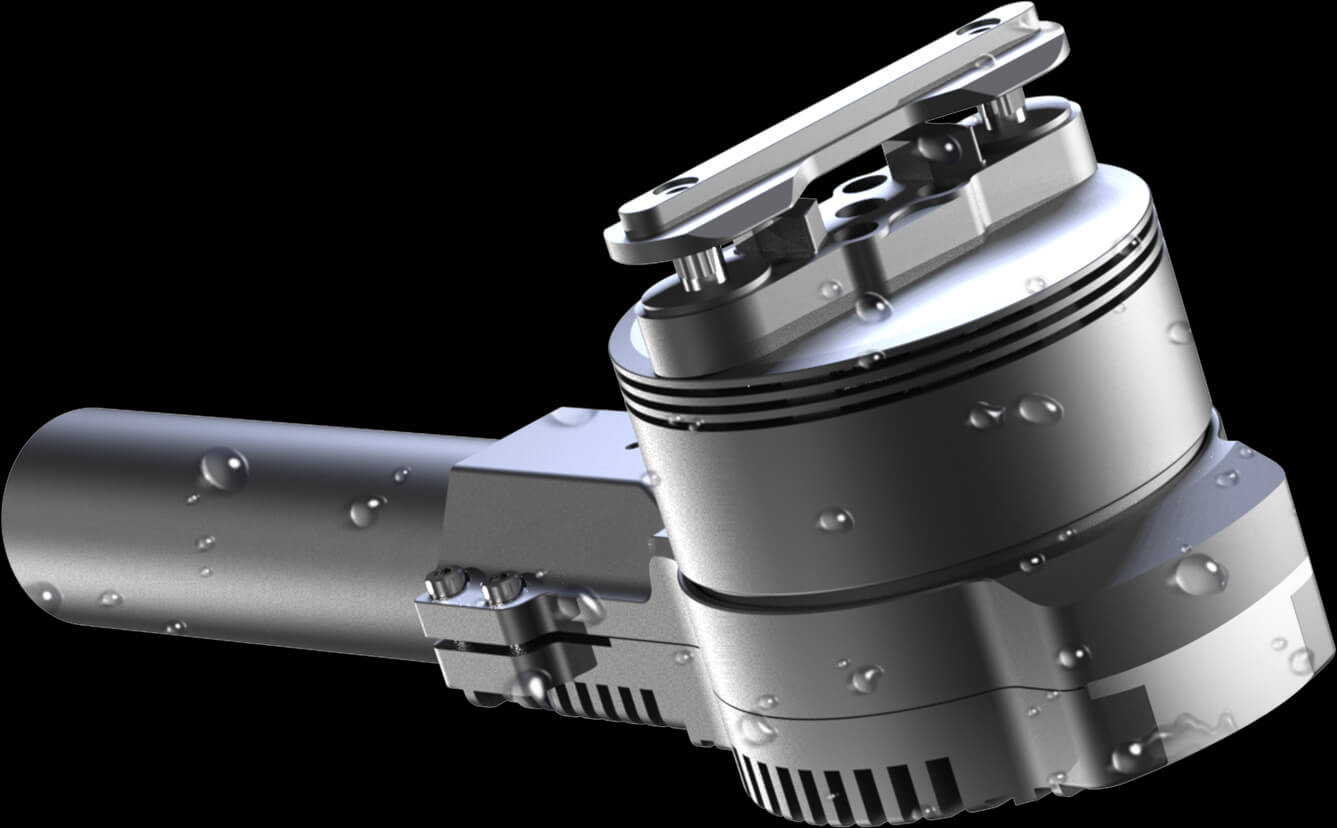

Integrated Protection
Withstands Wind, Sand, and Rain

Featuring a fully sealed waterproof structure with a nano-coating covering the body, it provides waterproof, dustproof, and corrosion-resistant protection, adapting to complex operating environments.

Operating Temperature: -20°C to 50°C
Protection Level: IPX6

Protection Level

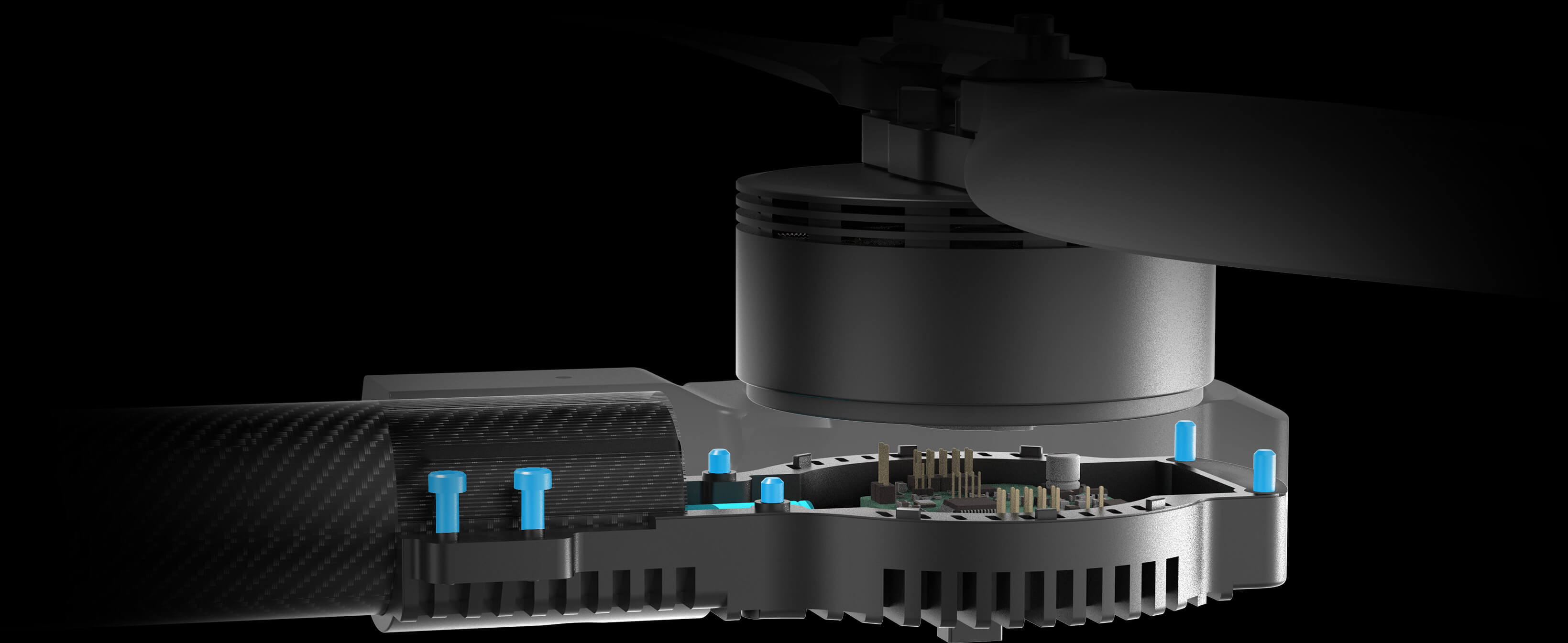

Impact-resistant structure, reliable and durable.

Through the internal and external two-way locking, it ensures that there is no loosening under severe vibration, and with the aircraft-grade aluminum alloy frame, the drop resistance is increased by 50%.

Impact-resistant structure, reliable and durable.

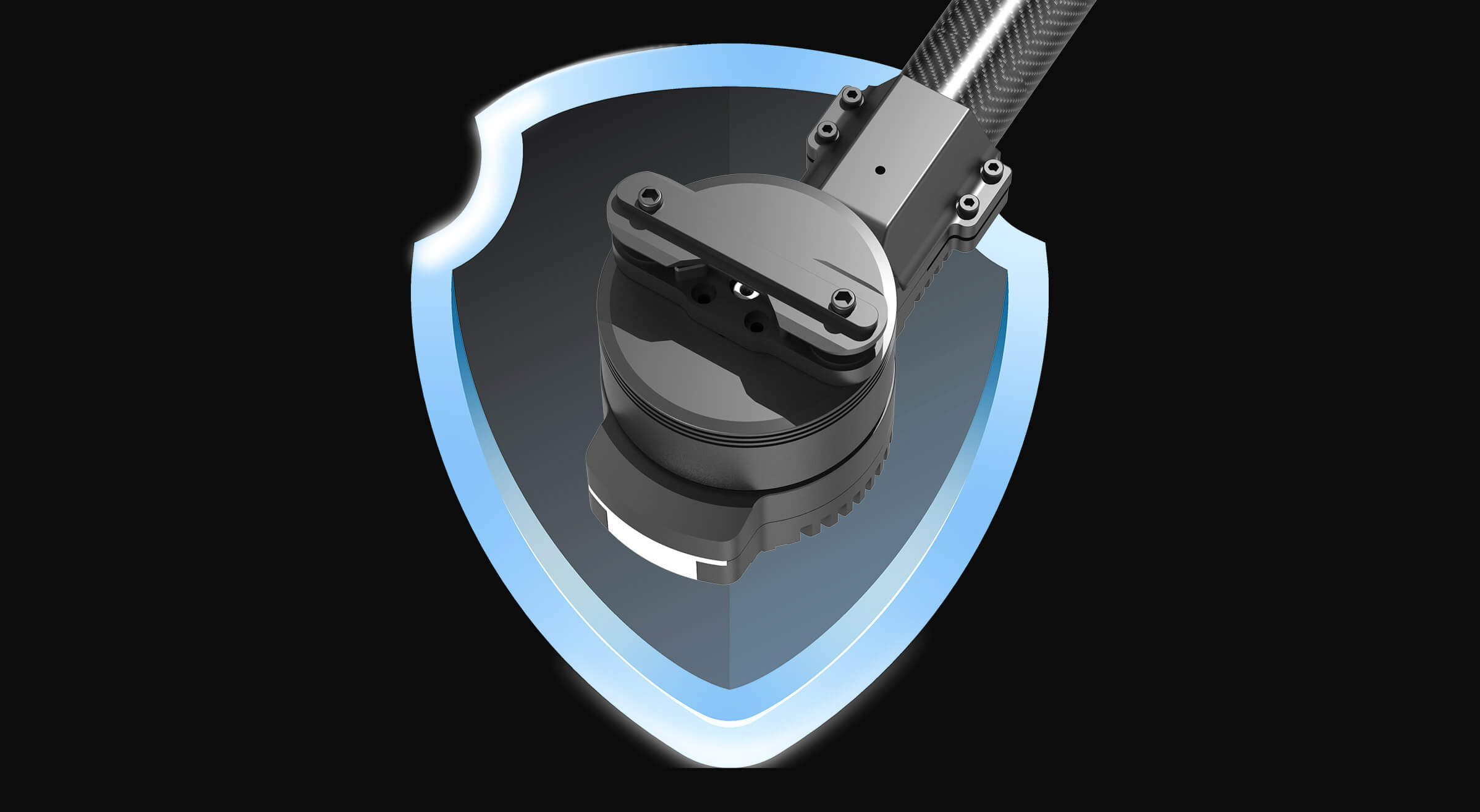

Multiple Protection, Safe Flight

The F6 power system has a series of intelligent protection functions such as power-on self-test, power-on voltage abnormal protection, current protection, and locked-rotor protection to ensure flight stability and safety.

Multiple Protection, Safe Flight

Technical Parameters

Recommend Battery:
12~14S(LiPo)
Signal Frequency:
50-500Hz
Recommend Thrust:
3-6kg/axis
Working Pulse Duration:
1050-1950us
Max Thrust:
12kg
Max Voltage:
55v
Weight:
780g(propellers included)
Max Instant Current (10S):
50A
Protection level:
IPX6
BEC:
Null
KV Value:
155rpm/v
Throttle Travel:
Not Calibrating
Stator Size:
62mm*18mm
Propeller:
24mm*80mm
Applicable Carbon Tube:
30mm
Ambient Temperature:
-20~50℃
PWM Input Signal Level:
3V-5V
